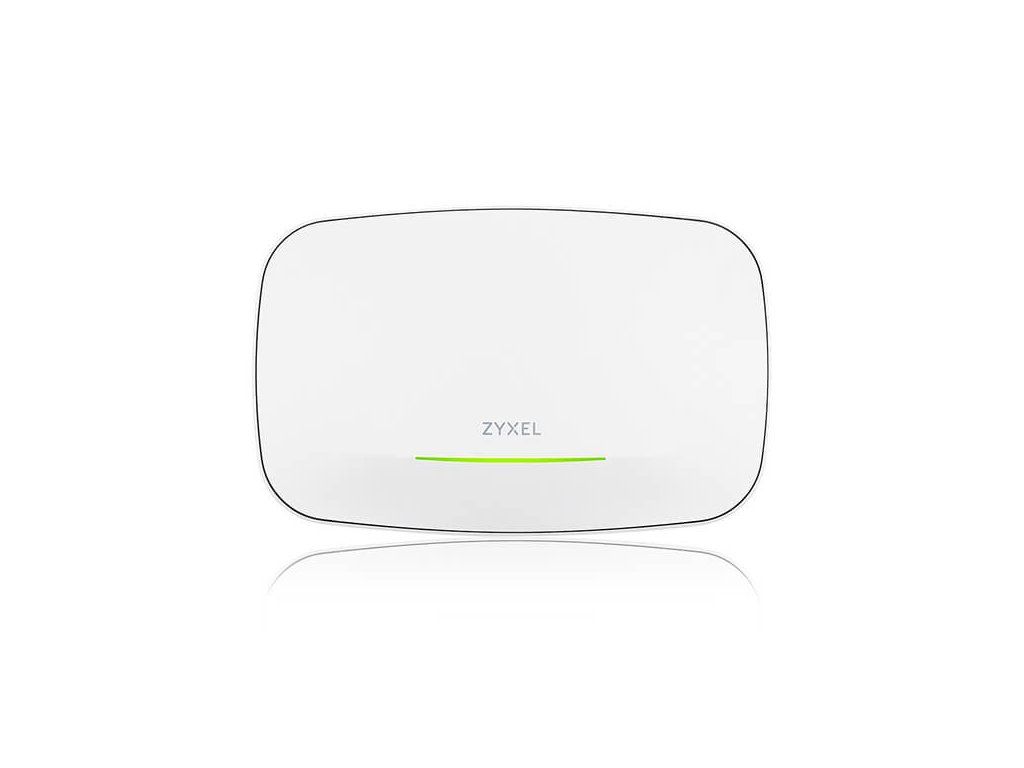

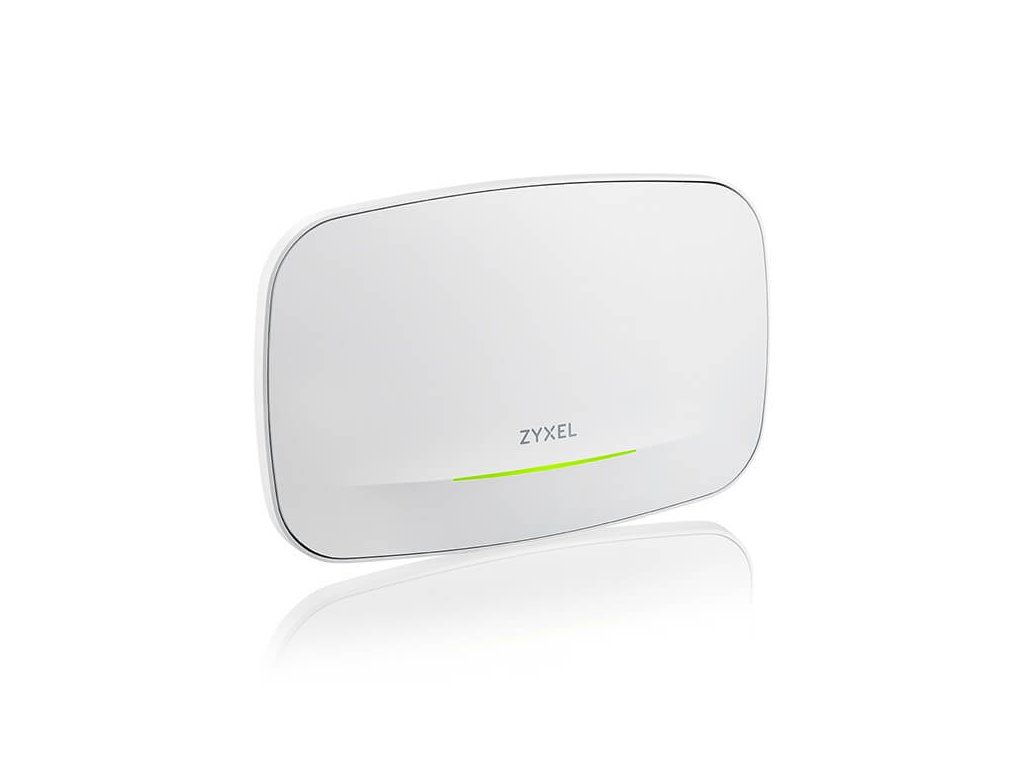

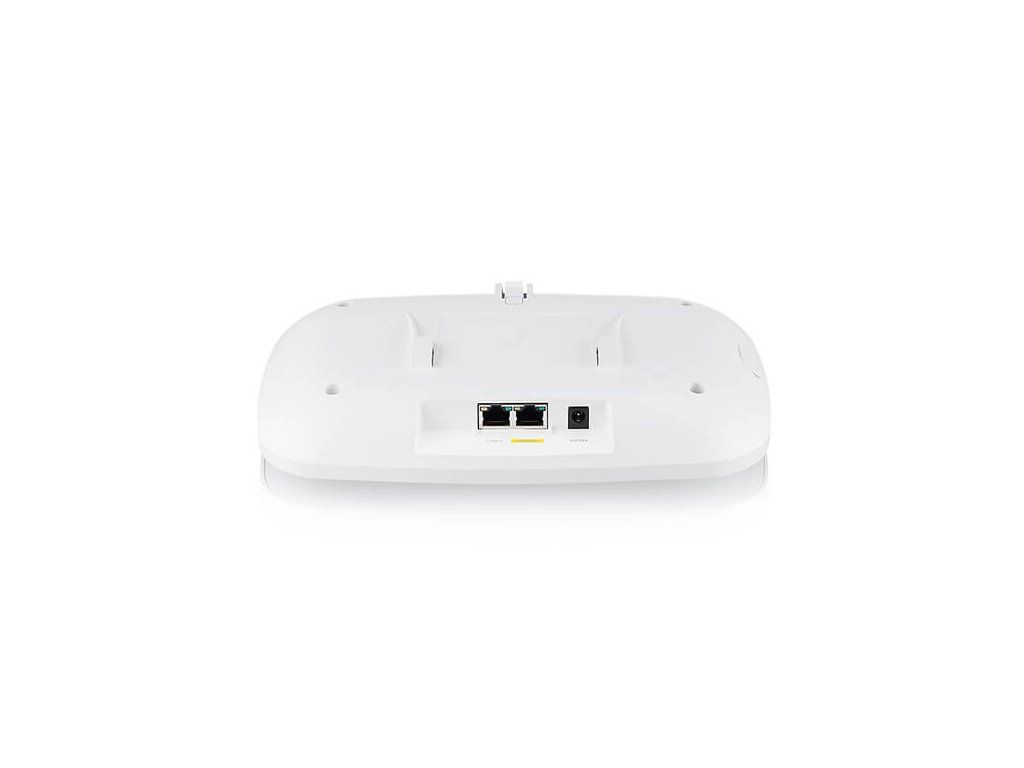

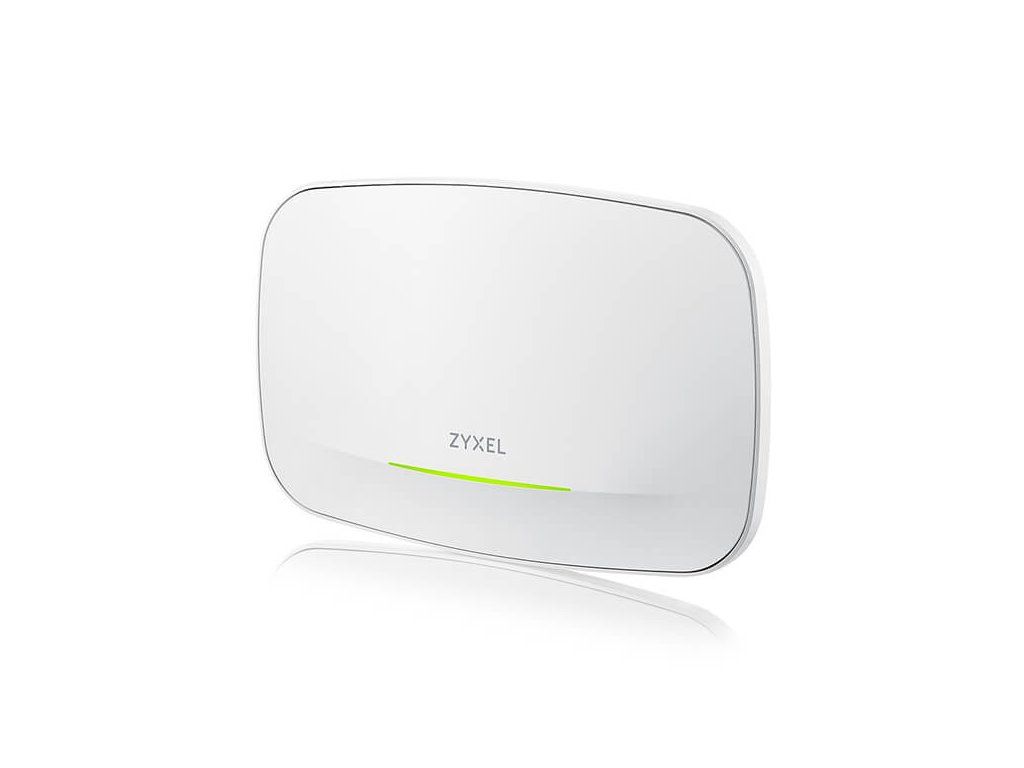

Zyxel NWA130BE, Single Pack 802.11be AP, 2x2 MU-MIMO, 2 x 2.5G LAN Ports, PoE+ (802.3at) NWA130BE-EU0101F

Podrobný popis

Wireless Standard IEEE802.11 be/ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4 GHz: 688 Mbps 5 GHz: 4324 Mbps 6 GHz: 5764 Mbps Frequency band 2.4 GHz: USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz 6 GHz: USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz European (ETSI): 5.925 to 6.425 GHz Bandwidth 20-, 40- ,80-, 160- , 240- and 320-MHz Conducted typical transmit output power*1 US (2.4GHz/5GHz/6GHz): 27/25/23dBm EU (2.4GHz/5GHz/6GHz): 19/25/21dBm RF Design Antenna type Internal Antenna Antenna gain 2.4 GHz: 3 dBi, 2X2:2SS 5 GHz: 4 dBi, 2X2:2SS 6 GHz: 4 dBi, 2X2:2SS Minimum receive sensitivity Min. Rx sensitivity up to -99 dBm WLAN Feature Band steering Yes WDS/Mesh*2 Yes Fast roaming Pre-authentication, PMK caching and 802.11r/k/v DCS Yes Load balancing Yes Advanced cellular coexistence Yes Security Encryption WEP WPA WPA2-PSK WPA3 Authentication WPA WPA2-Enterprise EAP IEEE 802.1X RADIUS authentication Access management L2-isolation MAC filtering Rogue AP detection Networking IPv6 Yes VLANs Yes WMM Yes U-APSD Yes Management Operating mode Cloud managed Standalone ZON Utility Discovery of Zyxel switches, APs and gateways Centralized and batch configurations: IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration Web UI/CLI Yes SNMP Yes Physical Specifications Item Dimensions (WxDxH)(mm/in.) 250 x 160 x 47/9.84 x 6.30 x 1.85 Weight (g/lb.) 808/1.79 Packing Dimensions (WxDxH)(mm/in.) 279.5 x 180.5 x 66/11.00 x 7.11 x 2.60 Weight (g/lb.) 1032/2.28 Included accessories Mount plate Mounting screws MTBF (hr) 698,312 Physical Interfaces Ethernet port 2 x 1/2.5Gbps LAN Power PoE (802.3at): power draw 24 W DC input : 12 VDC 2A PoE modes IEEE 802.3af: No Wireless IEEE 802.3at: Unrestricted IEEE 802.3bt: Unrestricted Environmental Specifications Operating Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 95% (non-condensing) Storage Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) Certifications Radio FCC Part 15C FCC Part 15E FCC Part 2.1091 ETSI EN 300 328 EN 301 893 Draft EN 303 687 EN 50385 EN 50665 EN IEC 62311,LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55032 EN55035 EN61000-3-2/-3 EN60601-1-2 BSMI CNS15936 Safety EN 62368-1 IEC 62368-1 BSMI CNS15598-1 All specifications are subject to change without notice. *1. Maximum transmit power is limited by local regulatory settings. *2 WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another. MÁTE
