ZYXEL AP 802.11 ac WAC6303D-S WAC6303D-S-EU0101F

Podrobný popis

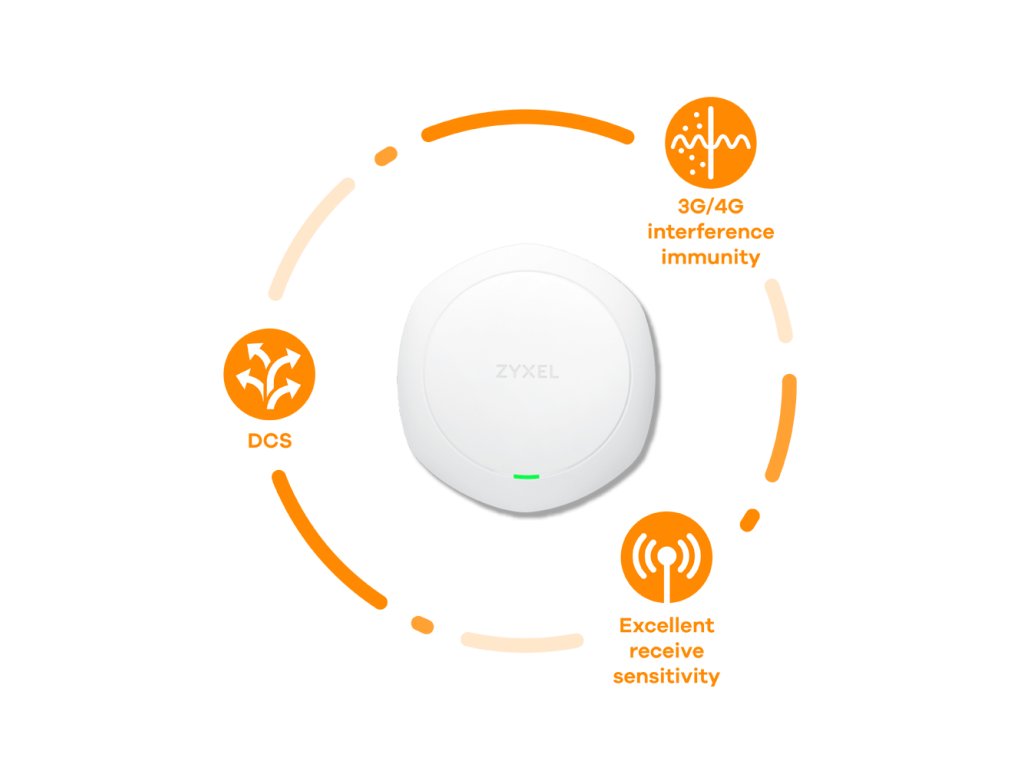

WAC6303D-S 802.11ac Wave2 3x3 Smart Antenna Access Point with BLE Beacon (no PSU) Špičkové bezdrátové služby a skutečná flexibilita do míst s vysokým provozem Přístupový bod WAC6303D-S je vybaven inteligentní anténou, která klientům i v místech s vysokým provozem přináší špičkové bezdrátové služby. WAC6303D-S navíc podporuje řešení NebulaFlexTM Pro, které zahrnuje tříletou licenci Professional Pack a umožňuje tři provozní režimy (samostatný, řízený kontrolerem a řízený pomocí cloudu Nebula). Technické paramtetry 802.11n/ac premium features: *2.4GHz: 2x2 MIMO with two spatial stream (SU-MIMO) *5GHz: 3x3 MIMO with three spatial stream (SU-, or MU-MIMO) *802.11ac beamforming (transmit beamforming) *Maximal ratio combining (MRC) *Low End Sensitivity Improvements (LESI) *Time Domain Channel Smoothing *20-, 40- and 80-MHz channels *PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac) *Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) *Cyclic Delay diversity (CSD) support *Maximum Likelihood Demodulation (MLD) support *Low Density Parity Check (LDPC) support Typical transmit output power (dBm): *US (FCC) 2.4 GHz: 25 dBm *US (FCC) 5 G GHz: 28 dBm *EU (ETSI) 2.4 GHz: 20 dBm *EU (ETSI) 5 G GHz: 26 dBm Antenna gain: *2.4 GHz: 3 dBi, 2x2 MIMO *5 GHz: 4 dBi 3x3 MIMO Support data rate: *802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps *802.11n: up to 300 Mbps in MCS15 (40MHz, 2 Spatial Streams, GI=400ns) *802.11ac:up to 1300 Mbps in MCS9 (80MHz, 3 Spatial Streams, GI=400ns) Receive sensitivity: Min. Rx sensitivity up to -103 dBm Number of 10/100/1000M LAN: 2 x switch ports Console port: 4-Pin serial Input power requirements: Direct DC power or Power over Ethernet (PoE)*2 PoE: *802.3at (full mode) *802.3af (Restrict 2.4G & 5G radio to one transmit stream only.) PoE power draw:16.2W (802.3at PoE) Item: *Dimensions (WxDxH)(mm/in.): 211 x 223 x 39 / 8.31 x 8.78 x 1.54 *Weight (kg/lb.): 800/1.76 Included accessories: Wall/ceiling mount plate Plenum rating: Yes Kensington lock support: Yes Power supply: *Input: AC 100-240V, 50~60Hz *Output: DC +12V 2A (Sold separately)
