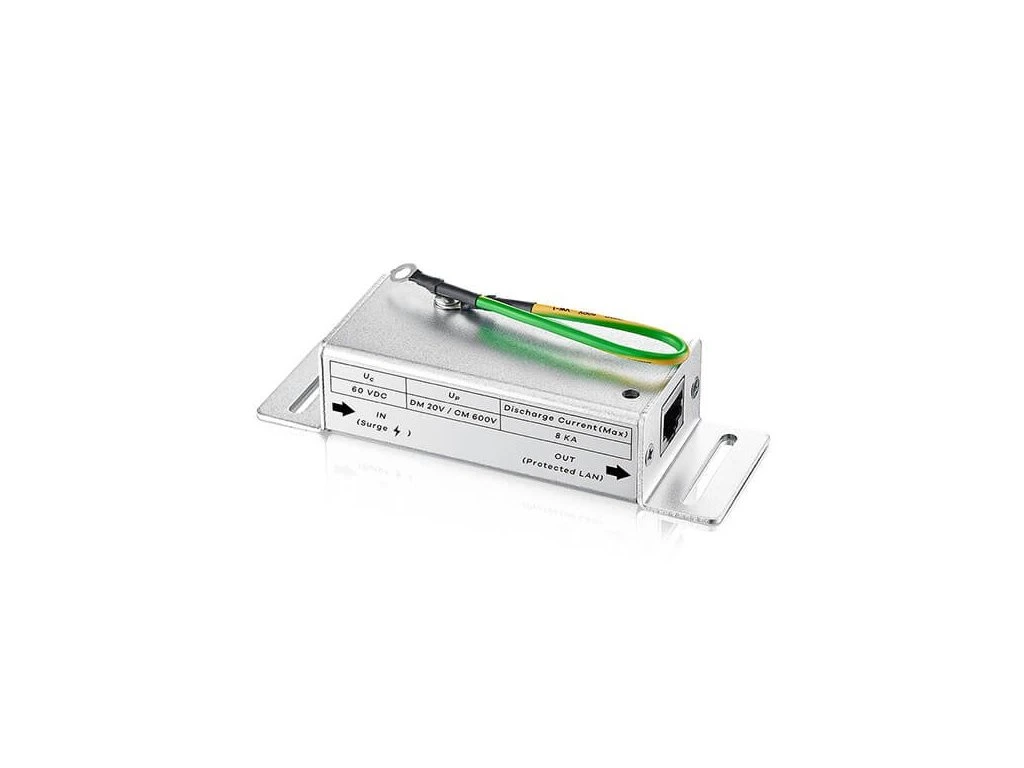

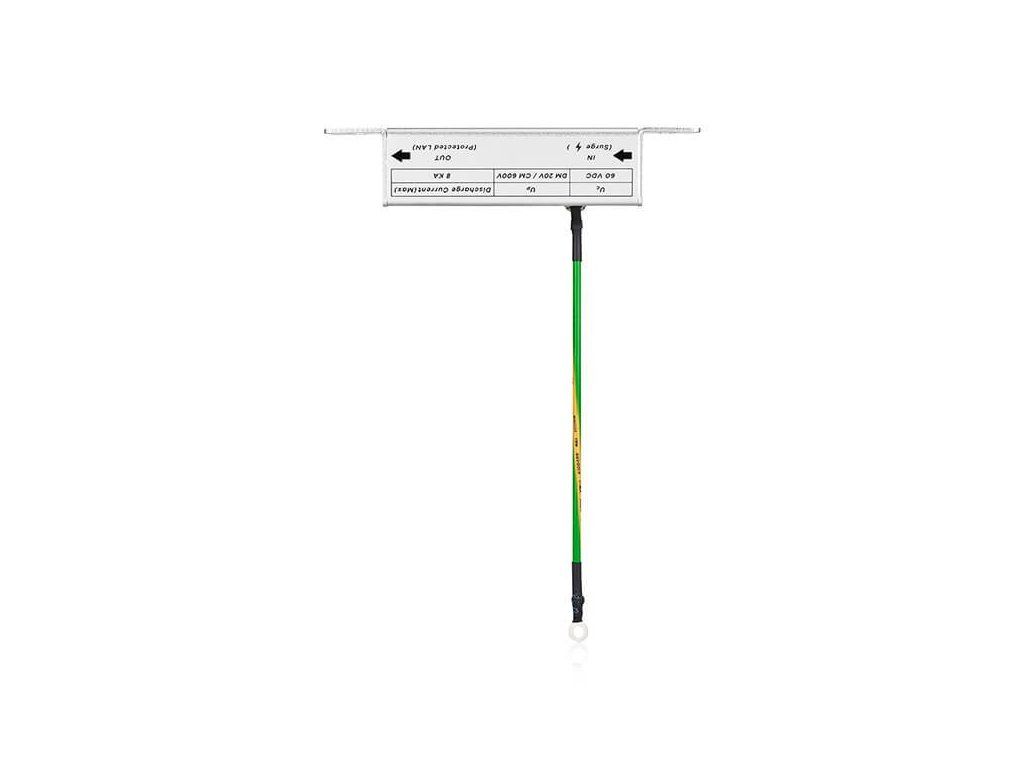

Zyxel 1G Ethernet Surge Protector SURGEPRO-GE-ZZ0101F

Podrobný popis

Model SURGEPRO-GE Product Name Ethernet Surge Protector Interface Connections 2 RJ-45 connector Data Line Protection RJ-45 10/100/1000 Ethernet IEEE 802.3af/at/bt Support Yes (802.3bt 60 W supported) Maximum Operation DC Voltage 60 VDC Maximum Discharge Current 8 KA Line to GND Protection Level 20 KV (10/700 us)/10 KA (8/20 us) Line to Line Protection Level 4 KV (10/700 us) Response Time < 5 ns Min. Power Consumption (watts) 1.62 Physical Specifications Item Dimensions (WxDxH)(mm/in) 40 x 120 x 25/1.57 x 4.72 x 0.98 Weight (g/lb.) 121/0.27 Environmental Specifications Operating Temperature -40°C to 85°C/-40°F to 185°F Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 85°C/-40°F to 185°F Humidity 10% to 90% (non-condensing) Certification Certification FCC (class B), CE (class B), IEC 61000-4-5, IEC 61643-21, ITU-T K.21
