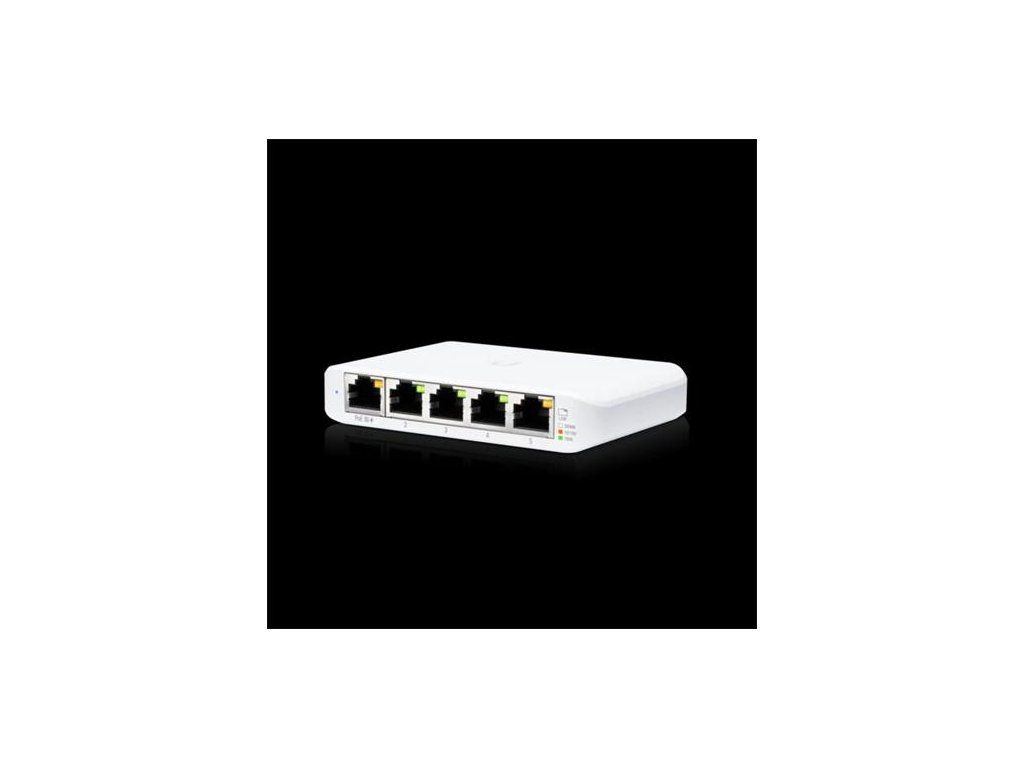

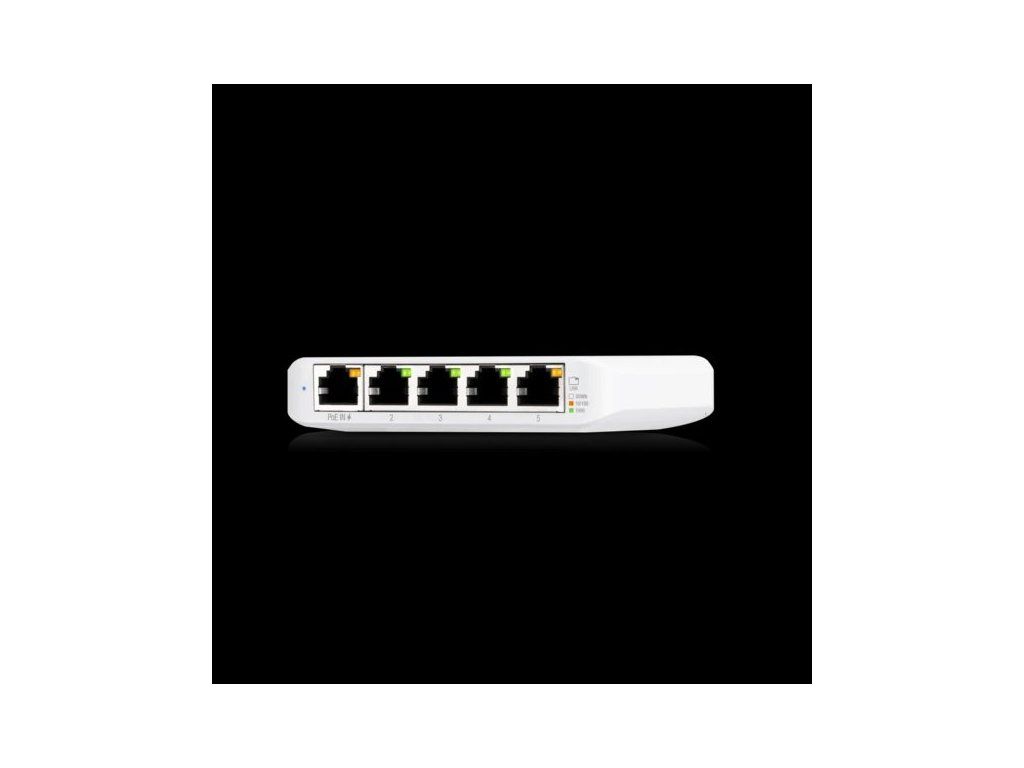

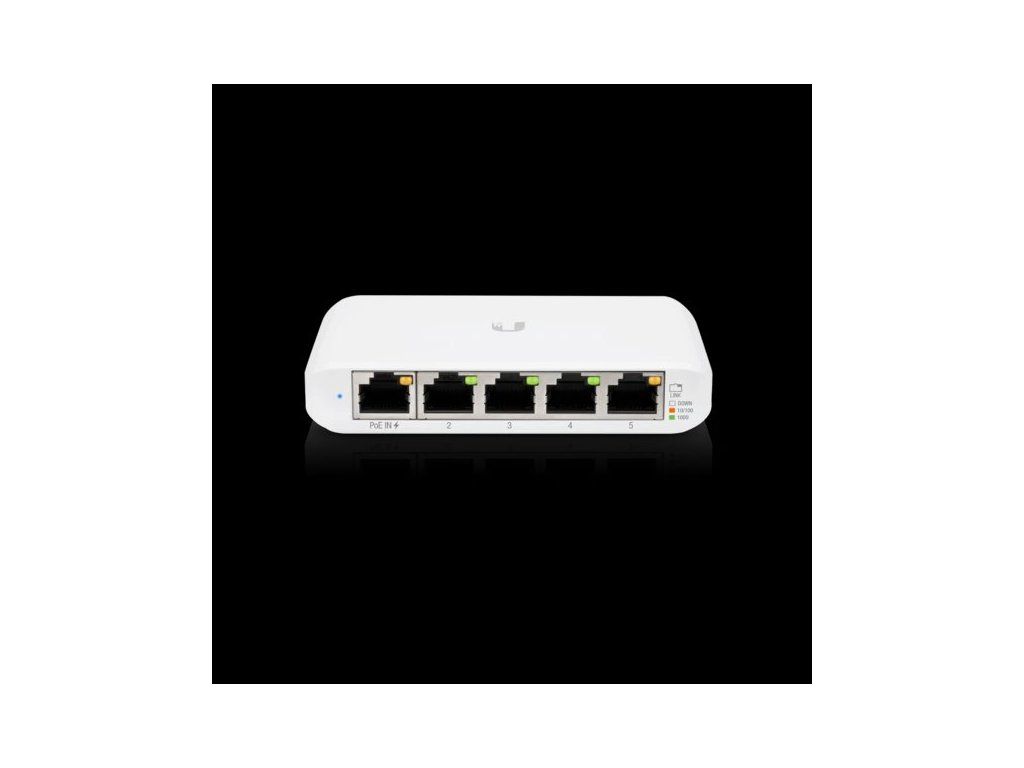

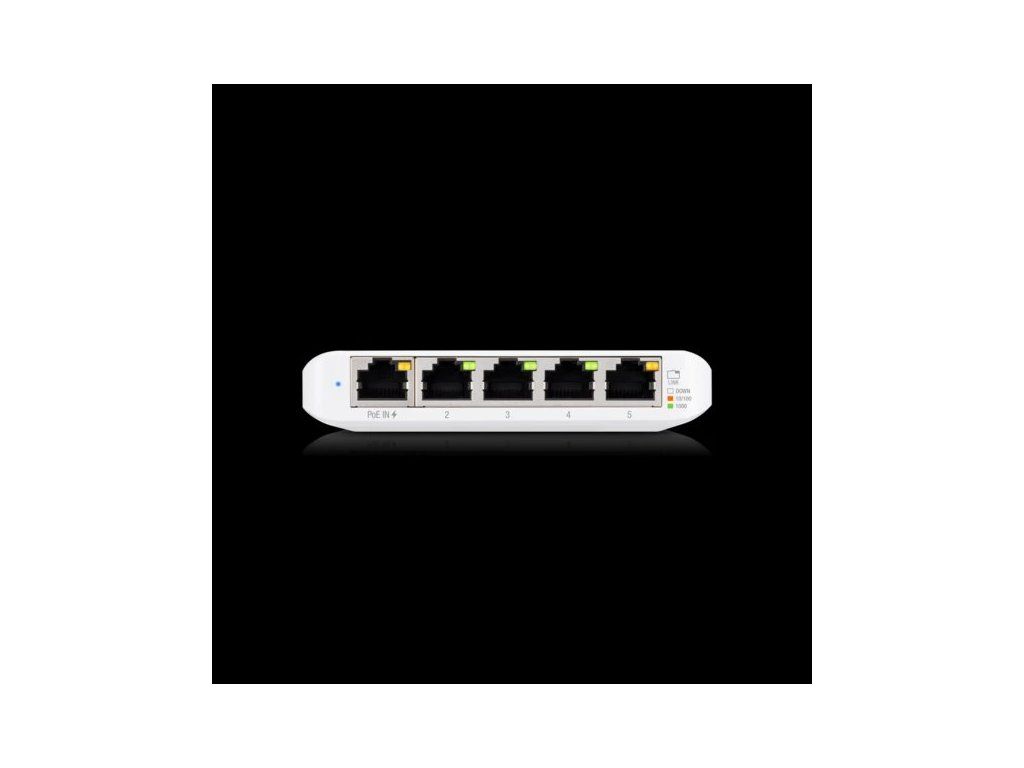

Ubiquiti UniFi switch USW-Flex-mini 5x1000Mbps power over PoE indoor/outdoor USW-Flex-mini
Kód: NTWUB-USW-FLEX-MINIWPodrobný popis
Technical Specifications
Mechanical

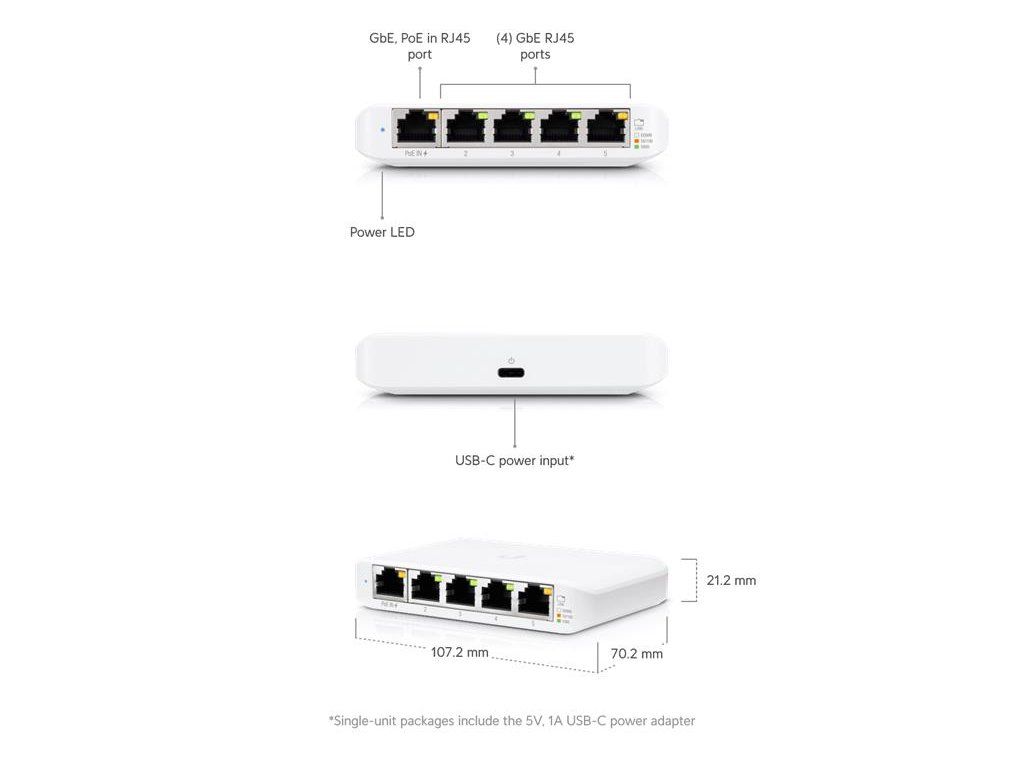

Dimensions 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight 150 g (5.3 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (5) GbE RJ45 ports
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Forwarding rate 7.44 Mpps
Power method (1) USB Type C, 5V
(1) PoE/PoE+, 44—57V DC, 0.05—0.04A

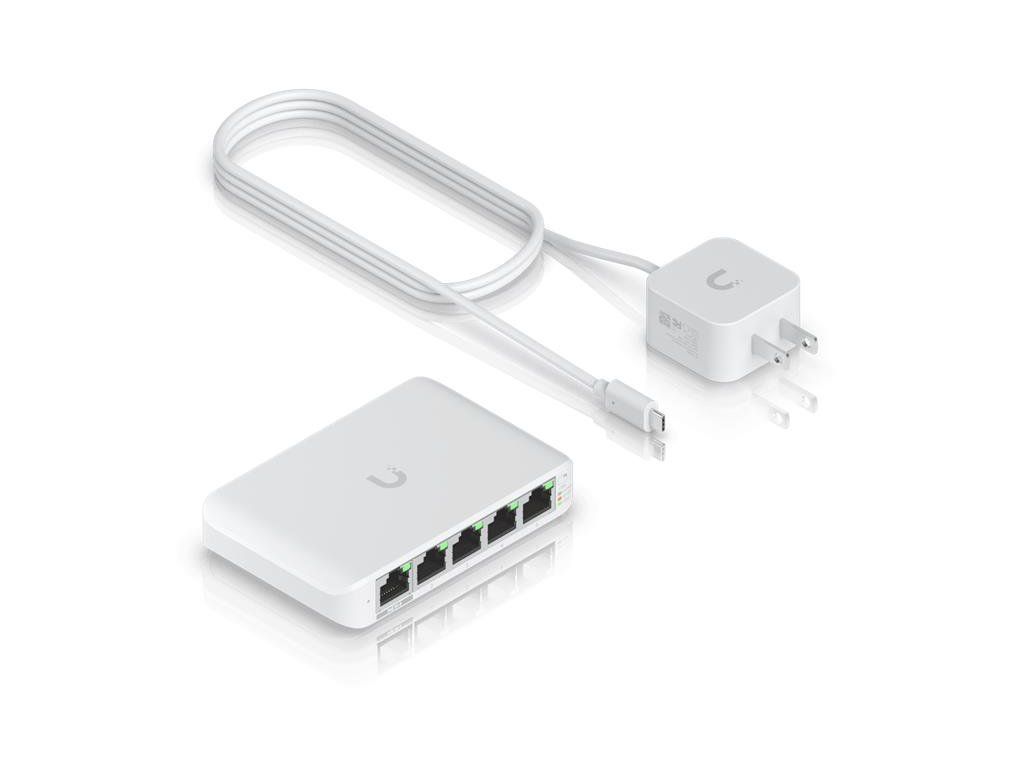

Power supply 5V, 1A power adapter*
*Only single-unit packages include the 5V, 1A USB-C power adapter.
Supported voltage range USB Type C: 4.7—5.3V DC
PoE/PoE+: 44—57V DC
Max. power consumption 2.5W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
LEDs
System Status
Ethernet Speed/link/activity
Application Requirements
UniFi Network Version 5.12.5 and later
Dodatočné parametre
Kategória: | Switche |
---|---|
Záruka: | 744 dní |
Hmotnosť: | 0.22 kg |
Počet portov: | 5 |
Počet kusov v balení [ks]: | 1 |
Passiv PoE (24V): | Nie |
PoE++ (802.3bt): | Nie |
Kategória: | Ubiquiti - UniFi Switch |
Prevedenie: | Outdoor |
MPN: | USW-Flex-mini |
