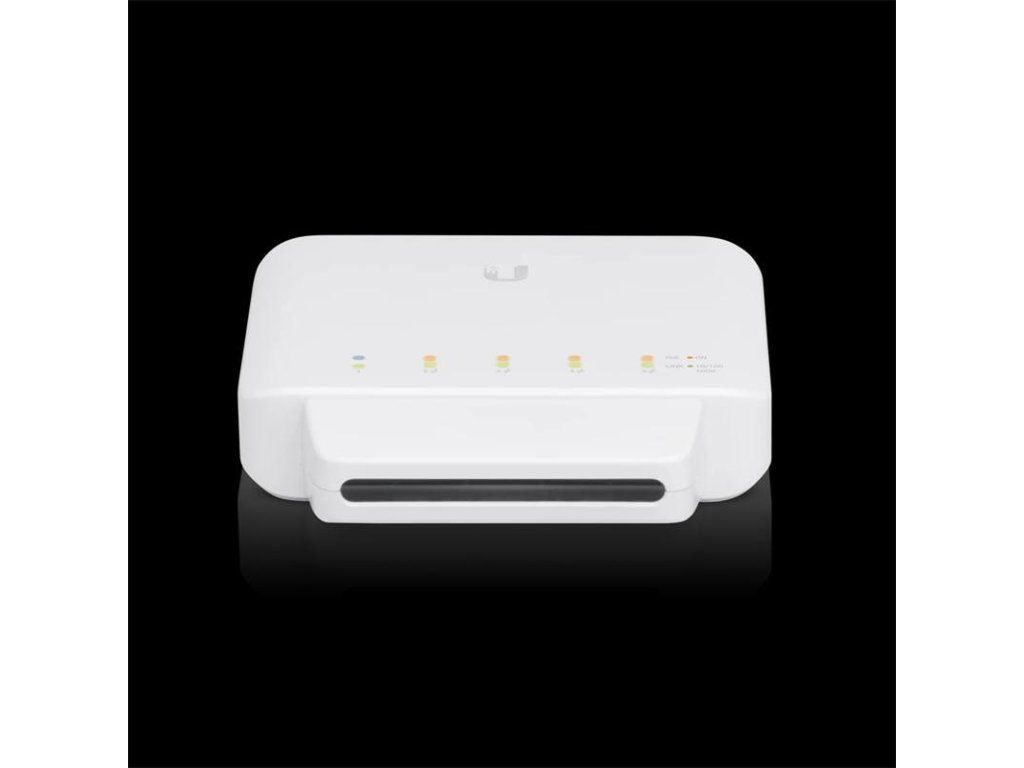

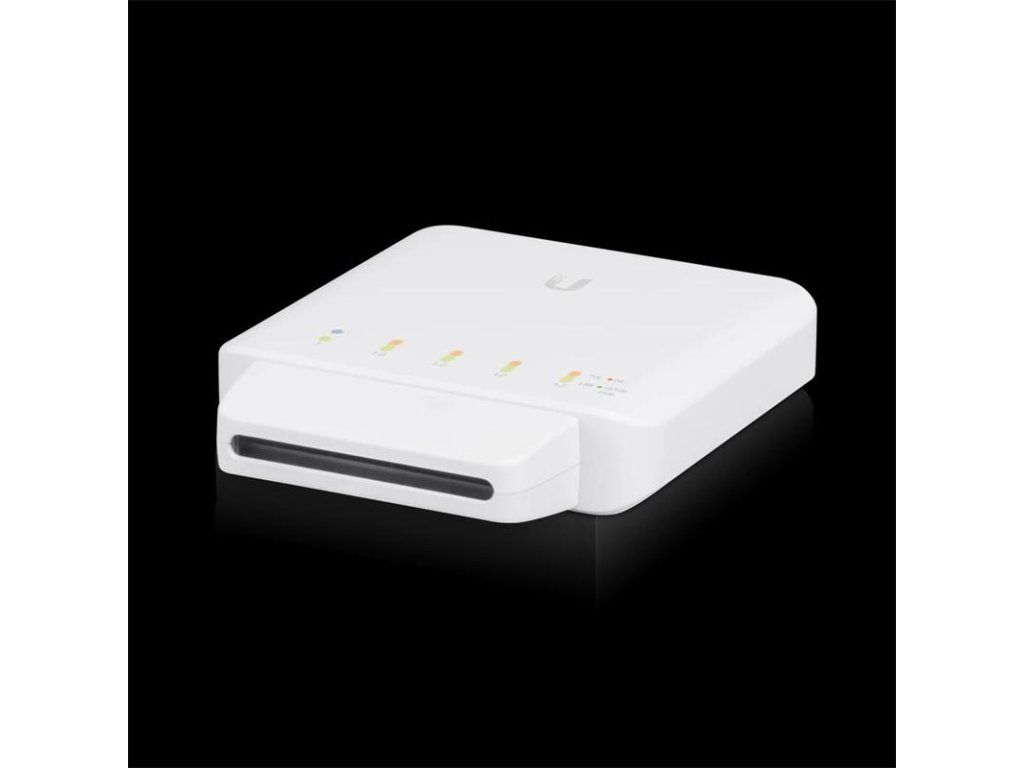

Ubiquiti UniFi switch USW-Flex 5x1000Mbps PoE/PoE+ indoor/outdoor (60W) USW-Flex
Kód: NTWUB-USW-FLEXWPodrobný popis
Technical Specifications
Mechanical

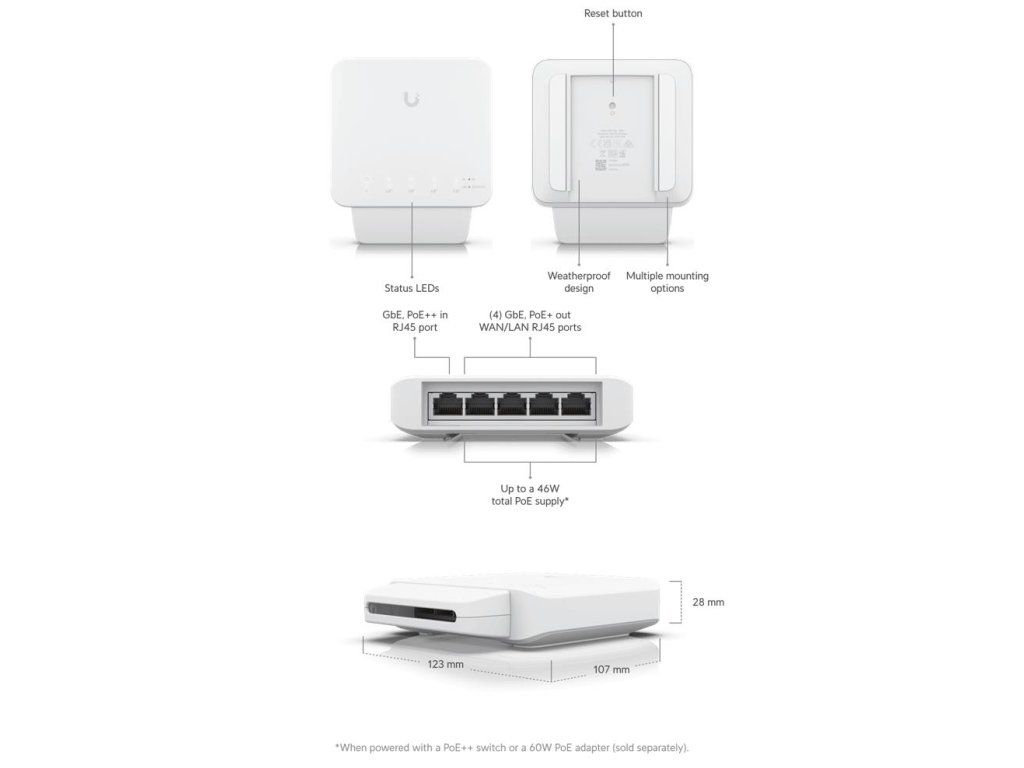

Dimensions 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1")
Weight 230 g (8.1 oz)
Hardware
Management interface Ethernet In-Band

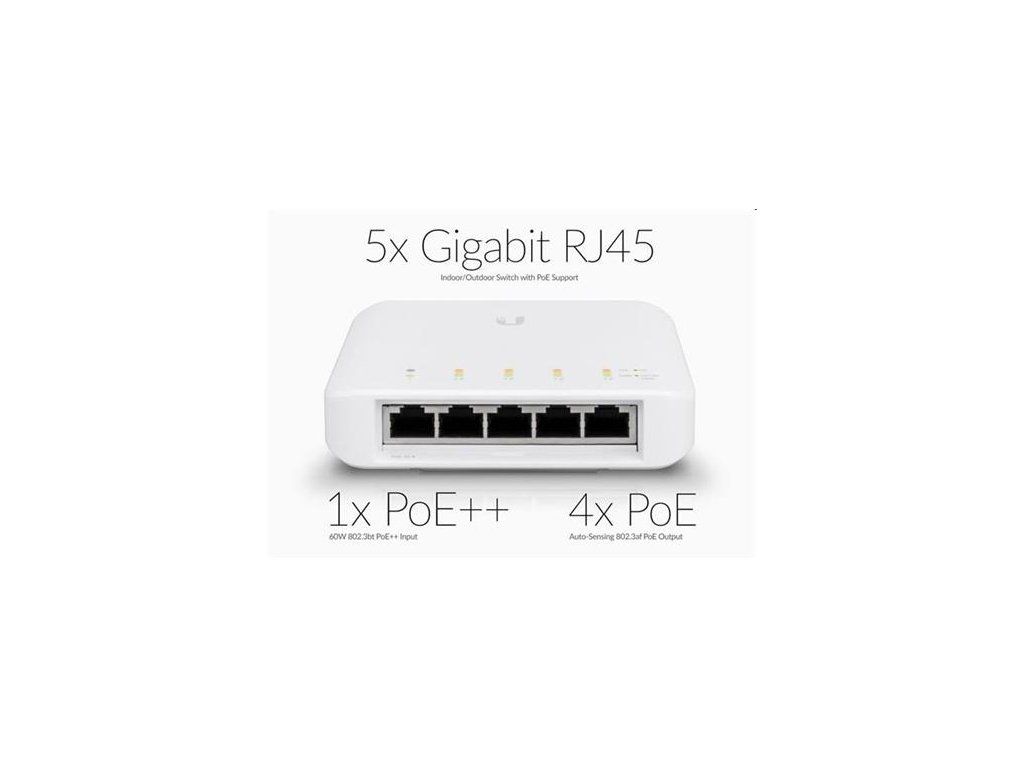

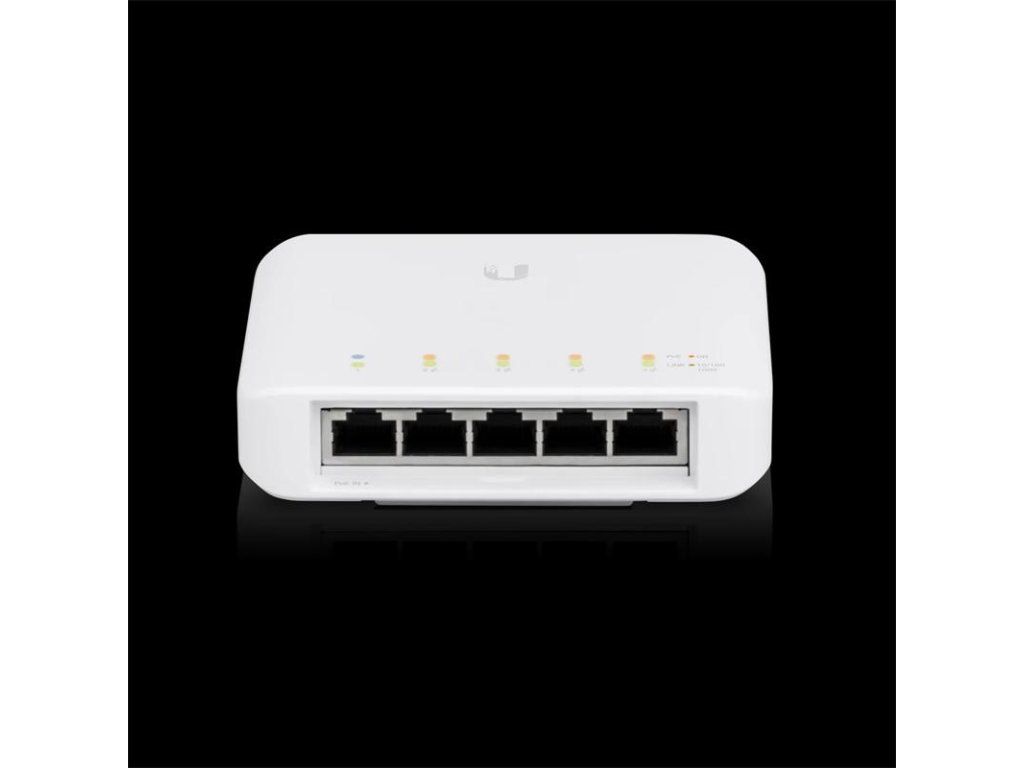

Networking interface (5) GbE RJ45 ports
PoE interface (4) PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Power method PoE++
Power supply PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE adapter (Not included)
Supported voltage range PoE: 44—57V DC
PoE+/PoE++: 50—57V DC
Max. power consumption 5W (Excluding PoE output)
Total available PoE 46W*
*When powered with a PoE++ switch or a 60W PoE adapter (Sold separately).
Max. PoE wattage per port by PSE 25W
ESD/EMP protection Air/contact: ± 16kV

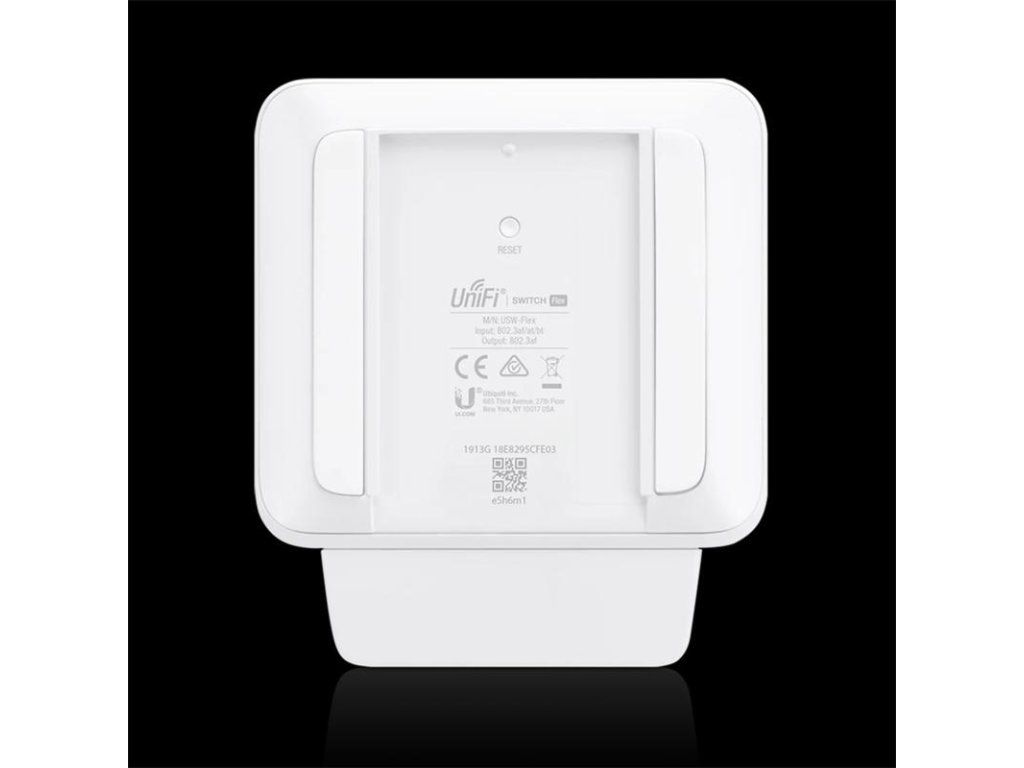

Button Factory reset
Ambient operating temperature 46W PoE output: -40 to 55° C (-40 to 131° F)
25W PoE output: -40 to 65° C (-40 to 149° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features
Port isolation
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 5.10.3 and later
Dodatočné parametre
Kategória: | Switche |
---|---|
Záruka: | 744 dní |
Hmotnosť: | 0.4 kg |
Passiv PoE (24V): | Nie |
Kategória: | Ubiquiti - UniFi Switch |
PoE++ (802.3bt): | Áno |
Prevedenie: | Outdoor |
Počet kusov v balení [ks]: | 1 |
PoE príkon [W]: | 60 |
Počet portov: | 5 |
MPN: | USW-Flex |
