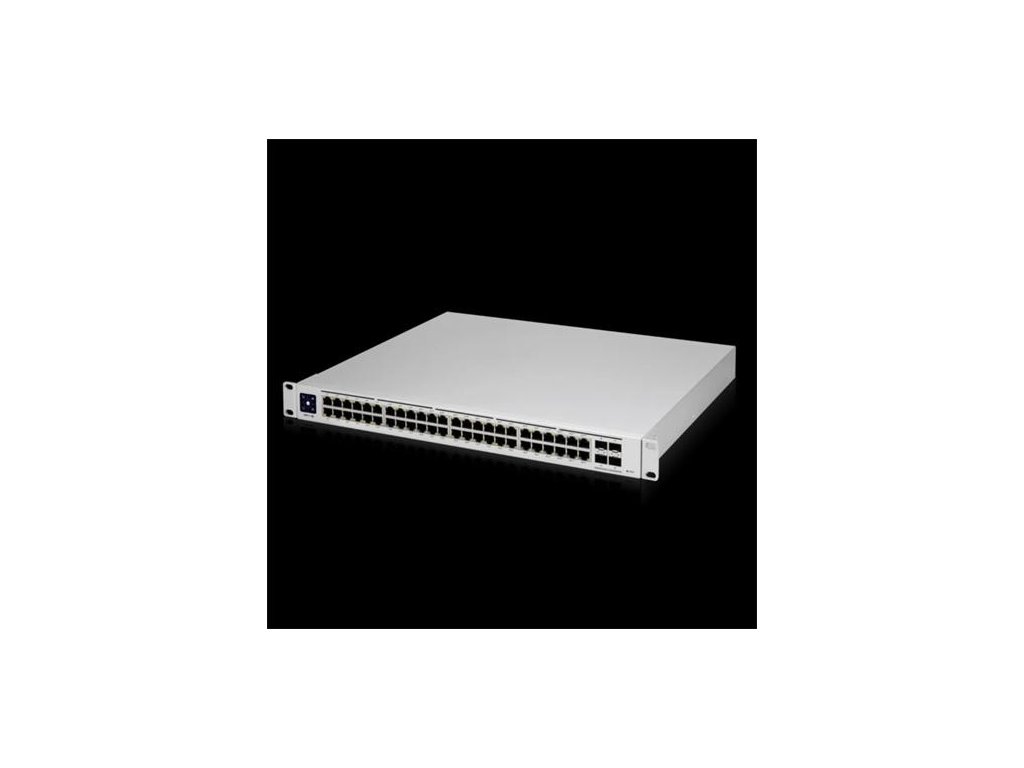

Ubiquiti UniFi switch Gen2 USW-PRO-48-POE Layer3 48x1000Mbps + 4x SFP+ POE++ (600W) USW-PRO-48-POE
Kód: NTWUB-USW-PRO-48-POEWPodrobný popis
Technical Specifications
Mechanical
Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.8 lb)
With mounting brackets: 6.3 kg (14 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface (40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 88 Gbps
Switching capacity 176 Gbps
Forwarding rate 130.944 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A
Power supply AC/DC, internal, 660W
Supported voltage range 100—240V AC
Max. power consumption 60W (Excluding PoE output)
Total available PoE 600W
Max. PoE wattage per port by PSE PoE+: 32W
PoE++: 64W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status
Application Requirements
UniFi Network Version 5.10.5 and later
Dodatočné parametre
Kategória: | Switche |
---|---|
Záruka: | 744 dní |
Hmotnosť: | 7.4 kg |
Počet kusov v balení [ks]: | 1 |
PoE príkon [W]: | 600 |
Počet SFP+: | 4 |
Počet portov: | 48 |
Passiv PoE (24V): | Nie |
Prevedenie: | Rackmount |
Kategória: | Ubiquiti - UniFi Switch |
PoE++ (802.3bt): | Áno |
MPN: | USW-PRO-48-POE |
