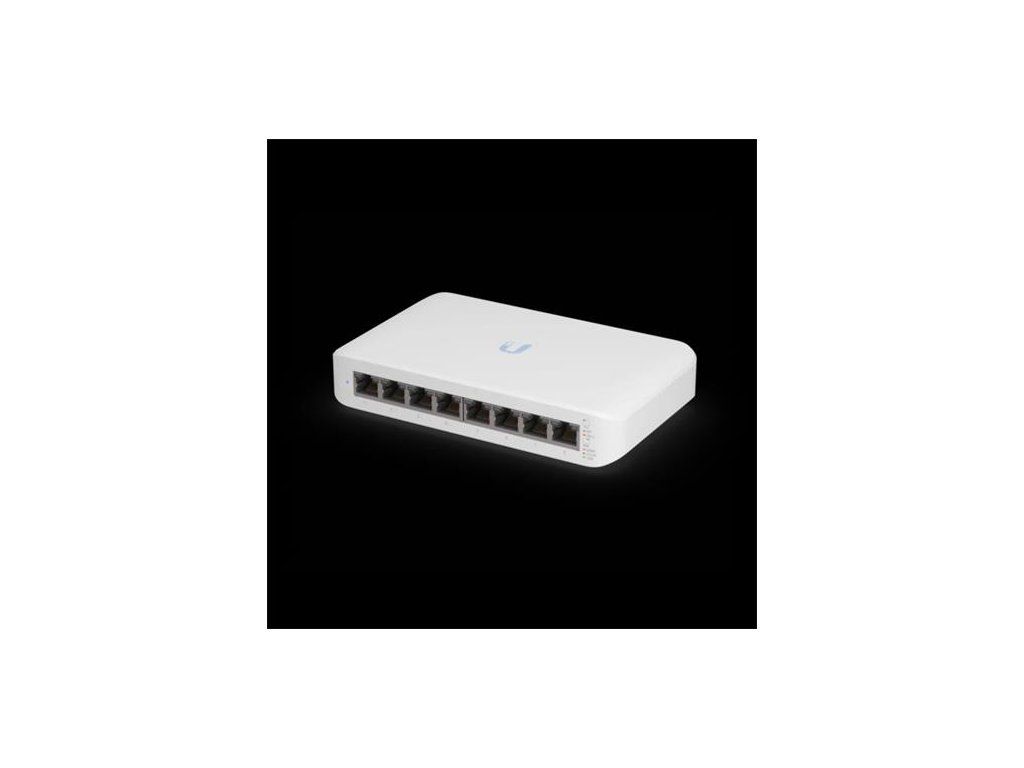

Ubiquiti UniFi switch Gen2 USW-Lite-8-POE Gen2 8x1000Mbps POE/POE+ (52W) USW-Lite-8-POE
Kód: NTWUB-USW-LITE-8-POEW
Podrobný popis
Technical Specifications
Mechanical
Dimensions 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
Weight 295 g (10.4 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
Power method 54V DC, 1.1A power adapter
Power supply 54V, external, 60W
Supported voltage range 50—57V DC
Max. power consumption 8W (Excluding PoE output)
Total available PoE 52W*
*With an external 60W power adapter.
Max. PoE wattage per port by PSE PoE+: 30W
Button Factory reset
Ambient operating temperature -15 to 40° C (5 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
Dodatočné parametre
| Kategória: | Switche |
|---|---|
| Záruka: | 744 dní |
| Hmotnosť: | 0.5 kg |
| Kategória: | Ubiquiti - UniFi Switch |
| Počet kusov v balení [ks]: | 1 |
| PoE príkon [W]: | 52 |
| Počet portov: | 8 |
| PoE++ (802.3bt): | Nie |
| Passiv PoE (24V): | Nie |
| Prevedenie: | Desktop |
| MPN: | USW-Lite-8-POE |
