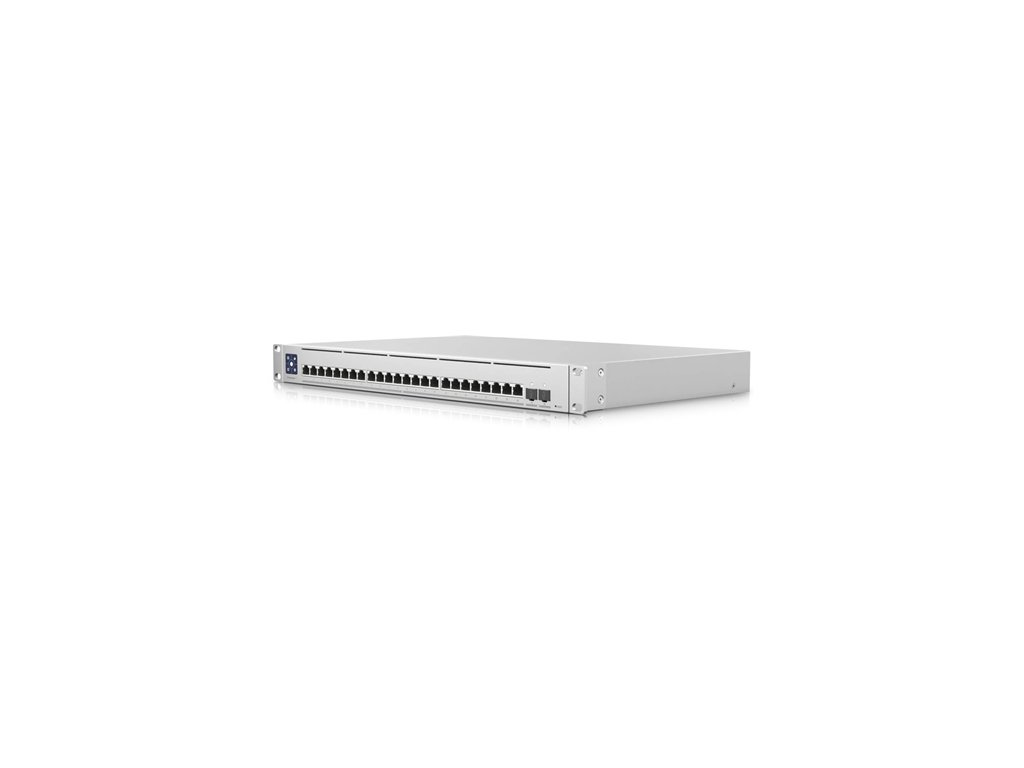

Ubiquiti UniFi switch Gen2 USW-EnterpriseXG-24 Layer3 24x 10Gbps + 2x SFP28 USW-EnterpriseXG-24

Podrobný popis

Technical Specifications

Mechanical

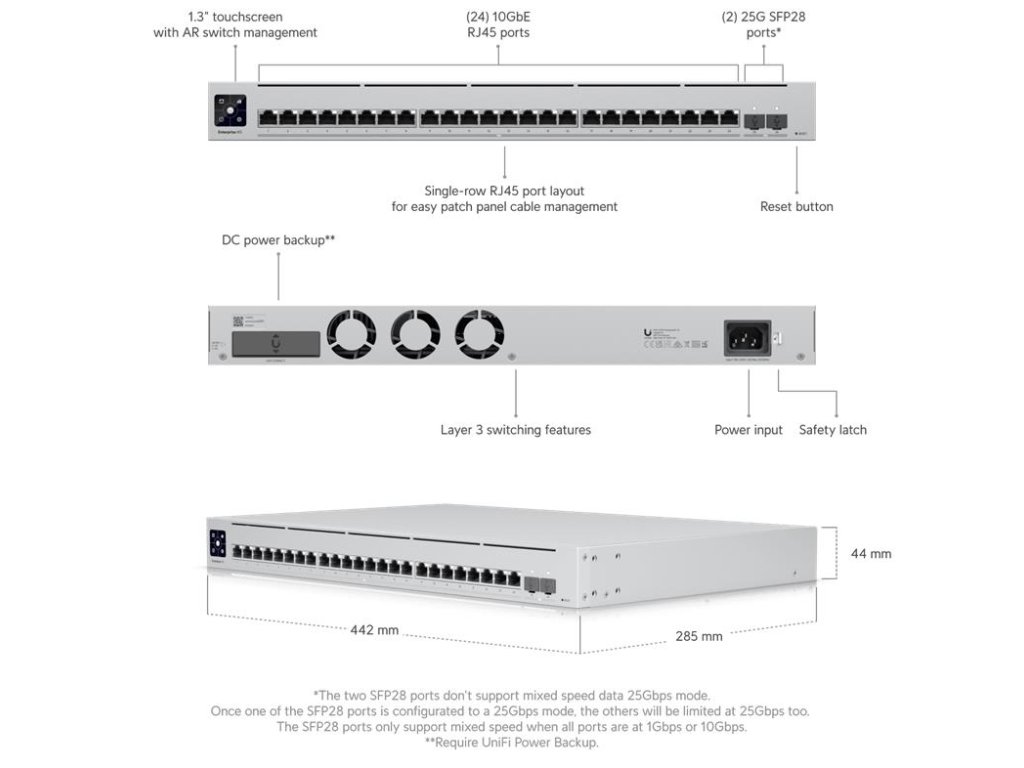

Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.5 kg (9.9 lb)
With mounting brackets: 4.6 kg (11 lb)
Enclosure material SGCC steel


Hardware
Management interface Ethernet In-Band

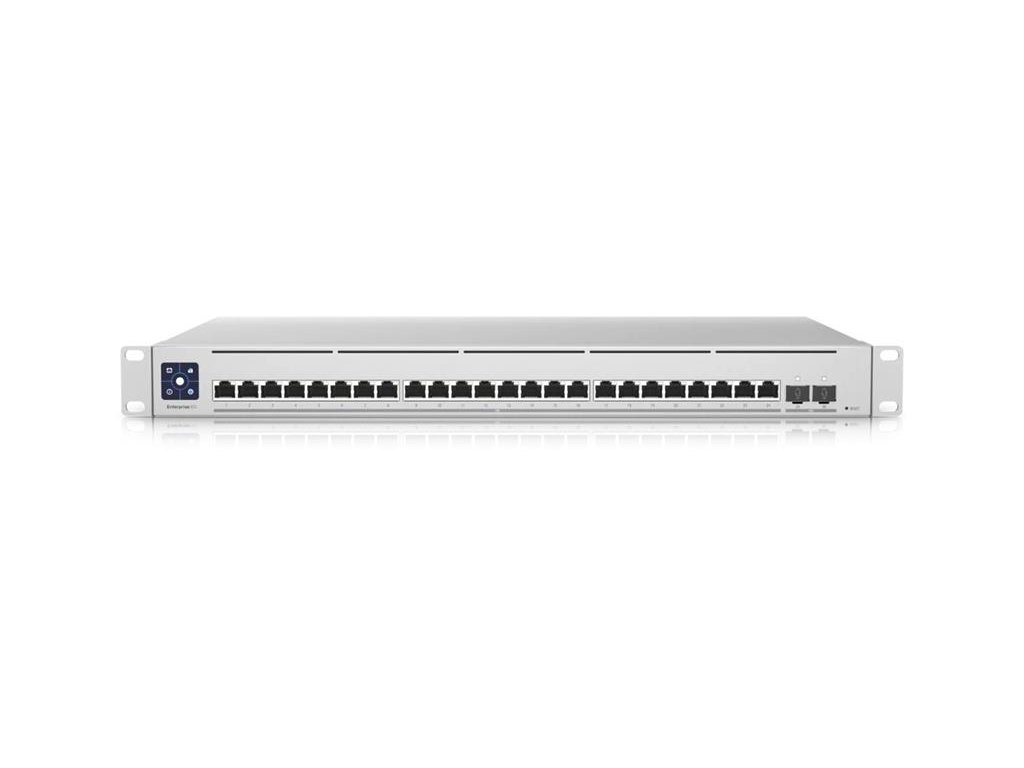

Networking interface (24) 1/2.5/5/10 GbE ports
(2) 25G SFP28 ports*
*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.
Total non-blocking throughput 290 Gbps
Switching capacity 580 Gbps
Forwarding rate 431.52 Mpps

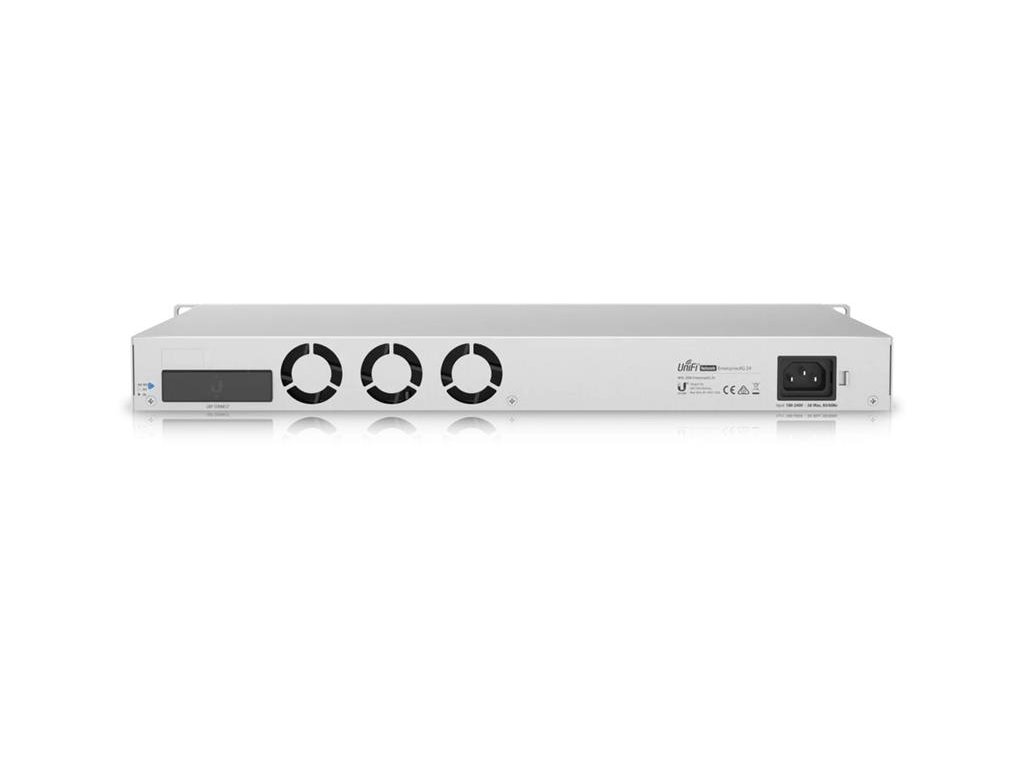

Power method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
Services SMB Layer 3 GbE switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" color touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC


Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs


LEDs
System Status
Ethernet Link/activity
Application Requirements
UniFi Network  Version 6.1.67 and later
