Ubiquiti UniFi switch Gen2 USW-Enterprise-8-PoE Layer3 8x 2,5Gbps + 2x SFP+ POE/POE+ (120W) USW-Enterprise-8-PoE
Kód: NTWUB-USW-ENT-8-POEW
Podrobný popis
Technical Specifications
Mechanical

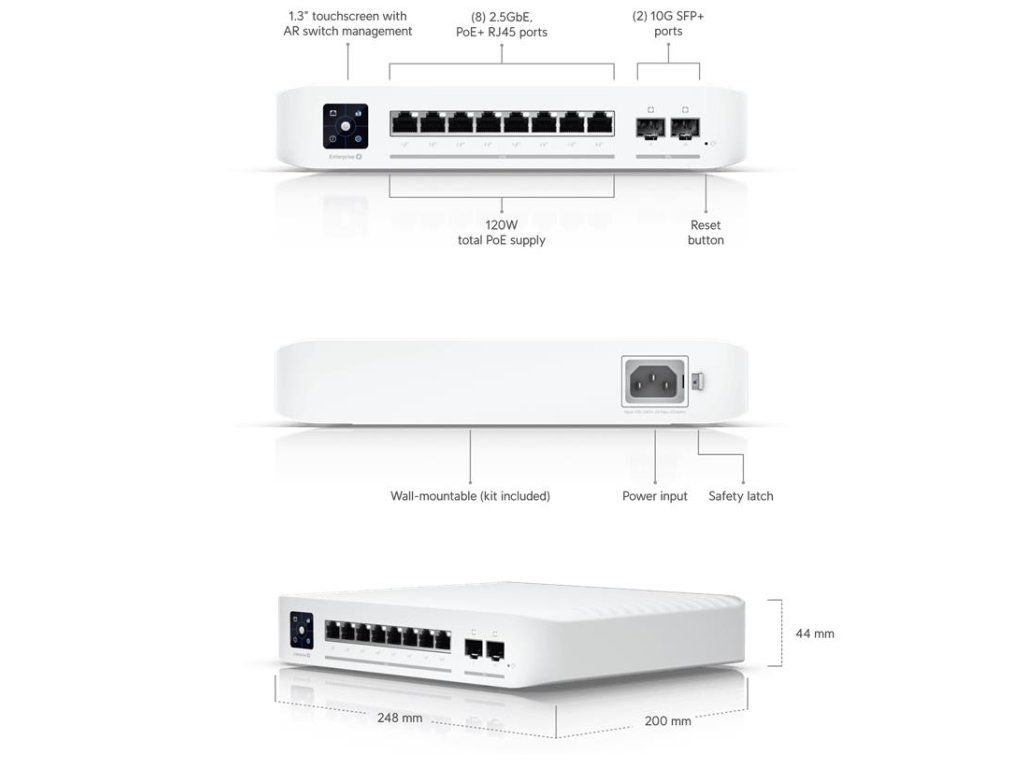

Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.4 kg (5.3 lb)
Enclosure material Polycarbonate
Mount material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 40 Gbps
Switching capacity 80 Gbps
Forwarding rate 59.52 Mpps
Power method Universal input, 100—240V AC, 2A Max., 50/60 Hz
Power supply AC/DC, internal, 150W
Supported voltage range 100—240V AC
Total available PoE 120W
Max. PoE+ wattage per port by PSE 32W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
LCM Display (1) 1.3" color touchscreen
Mounting Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE)
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 6.3.51 and later
Dodatočné parametre
| Kategória: | Switche |
|---|---|
| Záruka: | 744 dní |
| Hmotnosť: | 2.78 kg |
| Prevedenie: | Desktop |
| Počet portov: | 8 |
| Počet kusov v balení [ks]: | 1 |
| PoE príkon [W]: | 120 |
| Počet SFP+: | 2 |
| Passiv PoE (24V): | Áno |
| PoE++ (802.3bt): | Nie |
| Kategória: | Ubiquiti - UniFi Switch |
| MPN: | USW-Enterprise-8-PoE |
