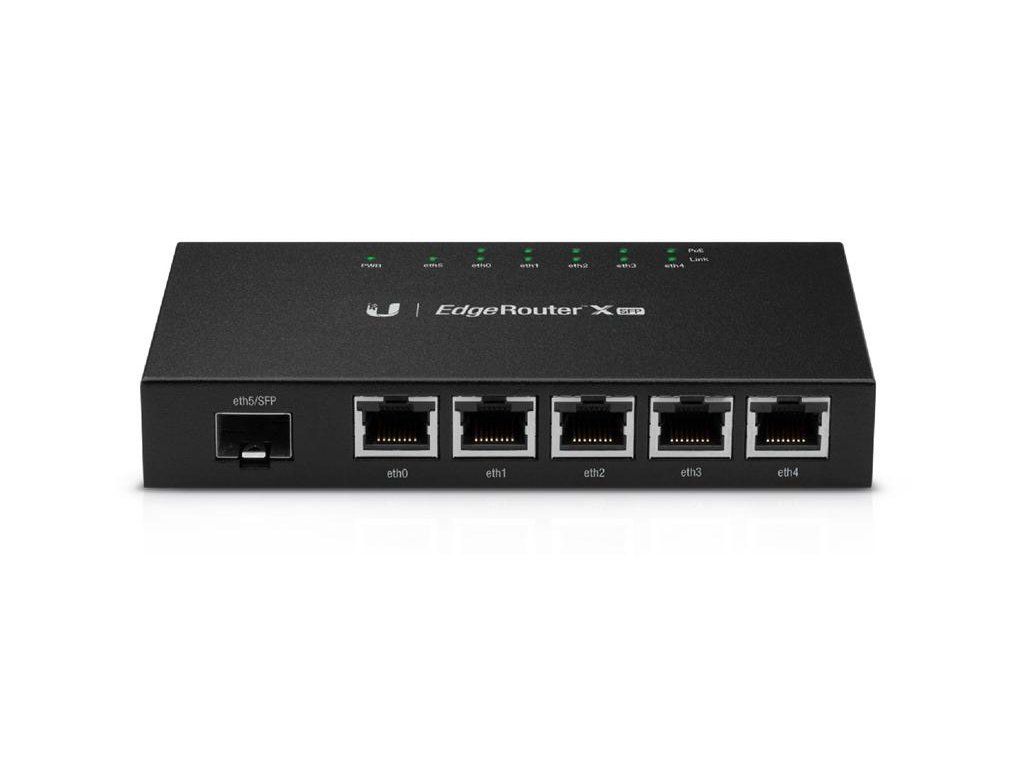

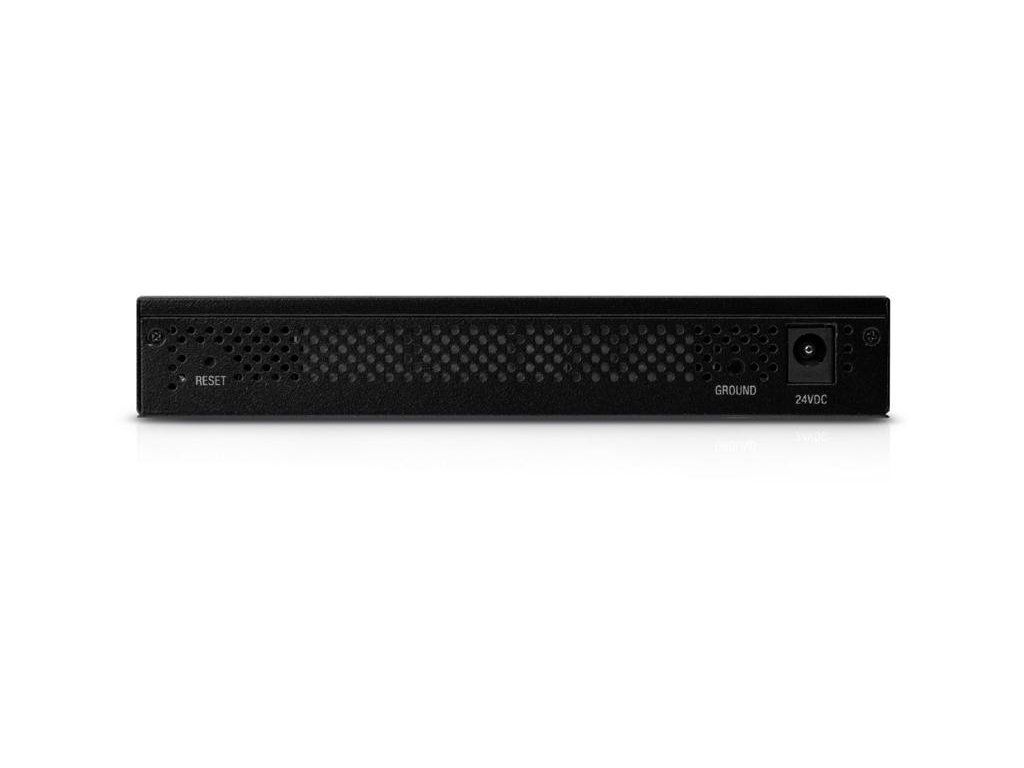

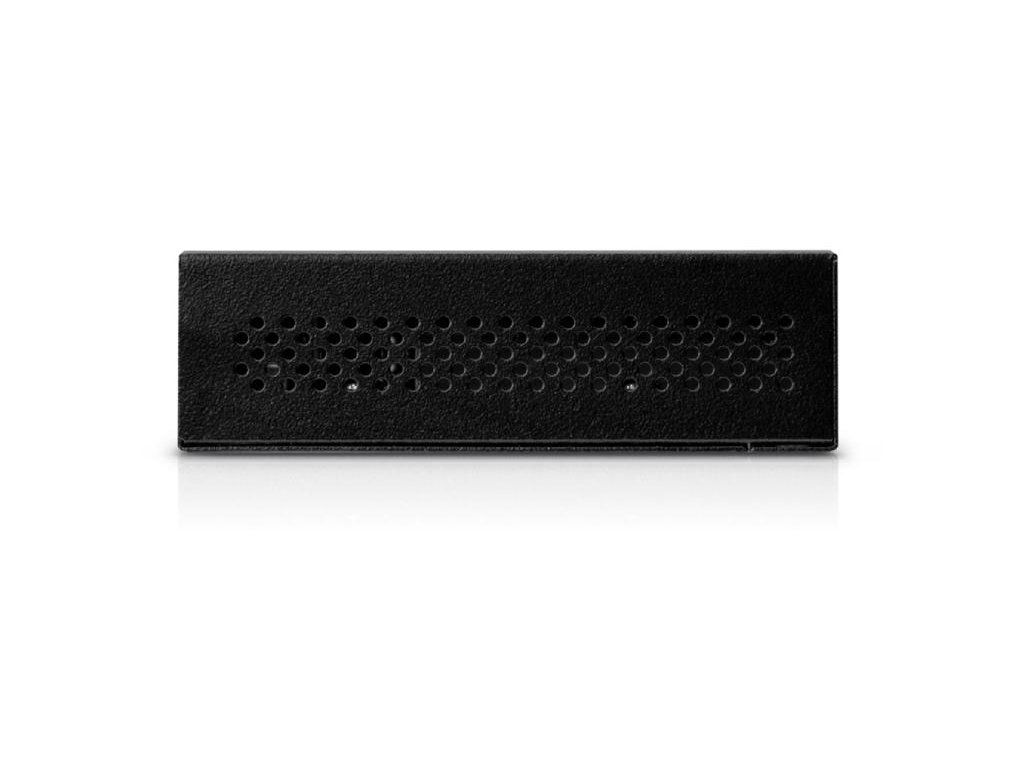

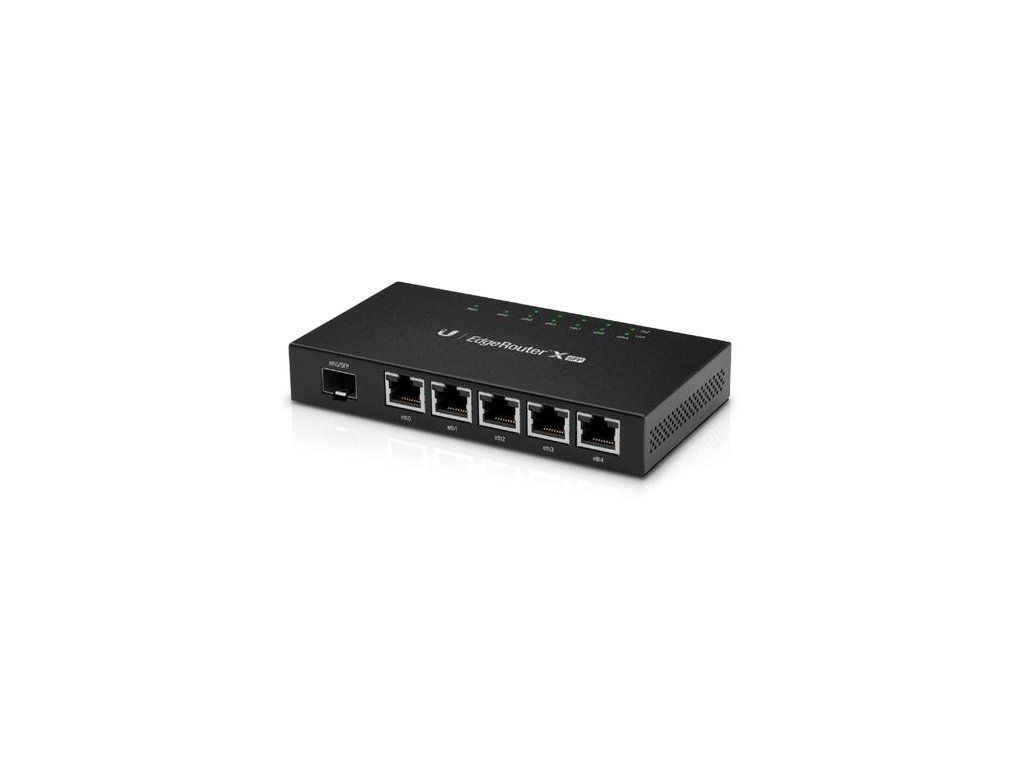

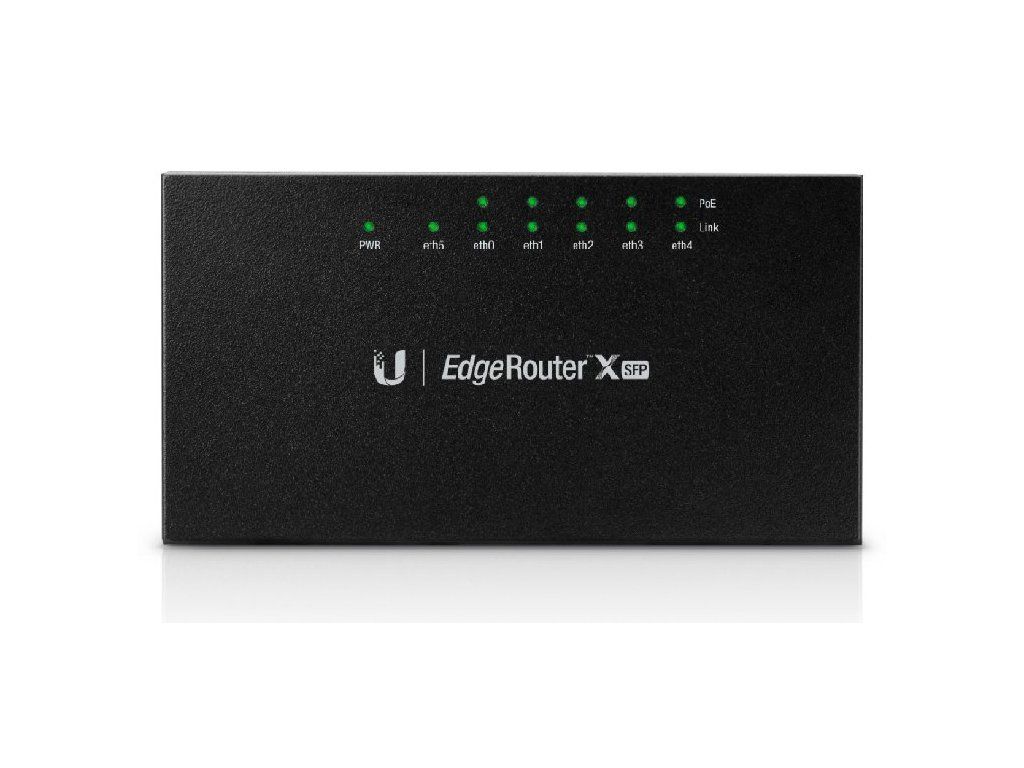

Ubiquiti EdgeRouter X SFP 5x1000Mbps + 1xSFP desktop ER-X-SFP
Kód: NTWUB-ER-X-SFPW
Podrobný popis
Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.
(5) GbE RJ45 ports with 24V passive PoE
(1) SFP port
50W total PoE availability
Technical Specifications
Mechanical
Dimensions 142 x 75 x 23 mm (5.6 x 3 x 0.9")
Weight 215 g (7.6 oz)
Hardware
Processor Dual-Core 880 MHz, MIPS1004Kc
Memory 256 MB DDR3 RAM
Code storage 256 MB NAND
Networking interface (5) 10/100/1000 RJ45 ports
(1) 100/1000 SFP port
Power method 24VDC, 2.5A power adapter (Included)
Power Supply External AC/DC adapter
Supported Voltage Range 9–26V DC
Max. power consumption 5W
PoE method Passive
PoE out voltage range 22-24V DC
Max. PoE wattage per port 12W (24V)
Max. PoE wattage combined/td> 50W
Buttons Factory reset
LEDs Power, Link/Activity (6), PoE (5)
Mounting Wall mount
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Dodatočné parametre
| Kategória: | Router, Firewall |
|---|---|
| Záruka: | 744 dní |
| Hmotnosť: | 0.76 kg |
| Kategória: | Routre / firewally - drôtové |
| Počet LAN portov: | 5 |
| Rýchlosť LAN portov (Mb/s): | 10 / 100 / 1000 |
| Počet WAN: | 5 |
| Doplňujúce informácie: | 1x SFP |
| Rozhranie WAN: | Ethernet (DSL) |
| MPN: | ER-X-SFP |
