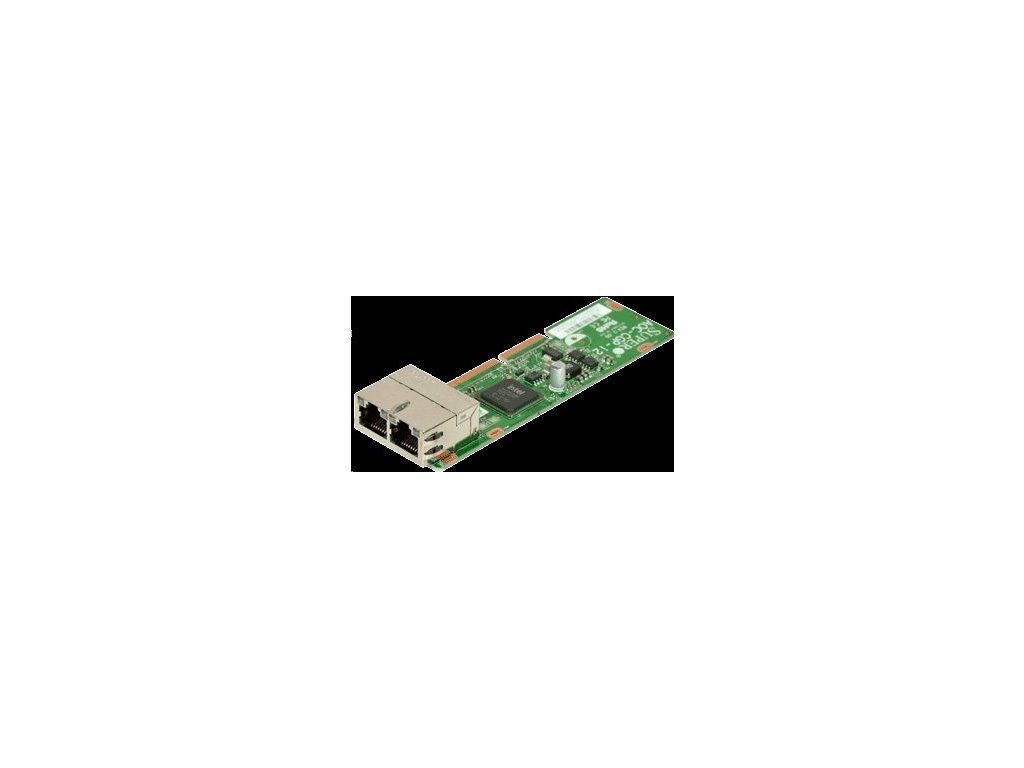

Supermicro AOC-CGP-I2, DualGigabit Ethernet - MicroLP 2-port GbE card based on Intel i350 AOC-CGP-I2

Podrobný popis

Add-on Card


Compact, Powerful and Feature-Rich, 2-port Gigabit Ethernet Controller for Twin Family and MicroCloud Systems

These microLP adapters are the latest innovation from Supermicro, designed to fit easily inside the densest systems. The AOC-CGP-i2 is based on the latest Intel® Ethernet controller i350 and is packed with advanced features for superior virtualization and application performance. The AOC-CGP-i2 also has industry leading power management features to optimize power consumption. This adapter is truly the ideal solution for customers who want to expand network connectivity in the densest Supermicro Twin family and MicroCloud server systems.

This product is only available through Supermicro.


Key Features


• MicroLP form factor for Twin Family and MicroCloud Systems
• PCI Express 2.1 (2.5GT/s or 5GT/s)
• 2 RJ-45 ports
• Intel® I/O Acceleration Technology (I/O AT)
• VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for
Virtualized Environments
• Jumbo Frame Support up to 9.5KB
• IEEE 802.3az ?Energy Efficient Ethernet (EEE)
• Low Power Consumption (4W Typical)
• iSCSI Remote Boot Support
• PXE Boot Support
• Flexible I/O Virtualization and Quality of Service (QoS)
• RoHS compliant 6/6

Compliance

RoHS
RoHS 6/6
RoHS Compliant 6/6, Pb Free

Downloads

User's Guide [ Download ] (2.11MB)
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ FTP Site ]
Driver CD Click on the latest CDR-NIC ISO file to download [ FTP Site ]
Matrices [ MicroLP Compatibility Matrix ]



Specification


• General
- Intel® i350 GbE controller
- Compact size microLP form factor
- PCI-E 2.1 x4 (2.5GT/s or 5GT/s) interface
- Dual RJ-45 connectors
- Intel® PROSet Utility for Windows® Device Manager
- Intel® I/O Acceleration Technology (I/O AT)
- Power consumption: Typical 4W

• Ethernet Features
- IEEE 802.3 auto-negotiation for speed, duplex, & flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY
specifications Compliant
- IEEE 1588 protocol and 802.1AS implementation

• Power Management and Efficiency
- IEEE 802.3az ?Energy Efficient Ethernet (EEE) which
reduces power consumption of the PHY by about 50%
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function
- MAC Power Management controls
- Low Power Link Up ?Link Speed Control

• Virtualization Features
- VM to VM Packet forwarding (Packet Loopback)
- 8 TX and RX queue pairs per port to support VMWare
NetQueue and Microsoft VMQ
- Flexible Port Partitioning: 32 Virtual Functions
- PC-SIG SR-IOV implementation
- IEEE 802.1q VLAN support
- IEEE 802.1q advanced packet filtering

• Performance Features
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve
CPU usage
- Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases
throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment,
Scalable I/O for Linux environments
- Jumbo Frames support up to 9.5K Bytes
- Intelligent interrupt generation

• Remote Boot Options
- Preboot eXecution Environment (PXE) support
- iSCSI remote boot for Windows, Linux, and VMware

• OS Support
- Windows® XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2,
2008 R2S
- RedHat EL 5.5, 6.0; SuSe SLES 10 SP3, 11 SP1
- FreeBSD 8.0
- VMware ESX 4.0, 4.1, 5.0
- Xen

• Cables Support
- RJ-45 Category-5/5e up to 100m

• Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)

• Physical Dimensions (L x H)
- Card PCB dimensions: 11.3cm (4.45in) x 3.9cm (1.54in)

Supported Platforms

Servers
Twin Family and MicroCloud Systems




Parts List

Part Number Qty Description
Add-on Card AOC-CGP-i2 1 MicroLP 2-port GbE card based on Intel i350
Bracket BKT-0051L
BKT-0054L
BKT-0055L 1
1
1 MicroLP PCB bracket (pre-installed)
IO bracket for 1U system (pre-installed)
IO bracket for 2U system
