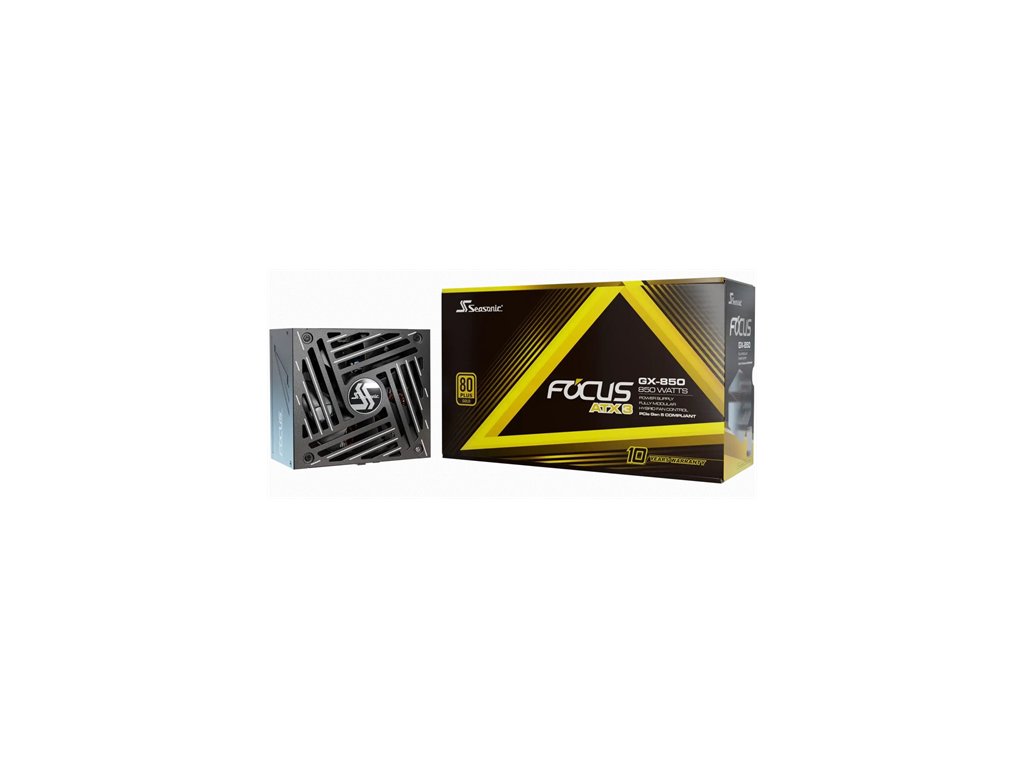

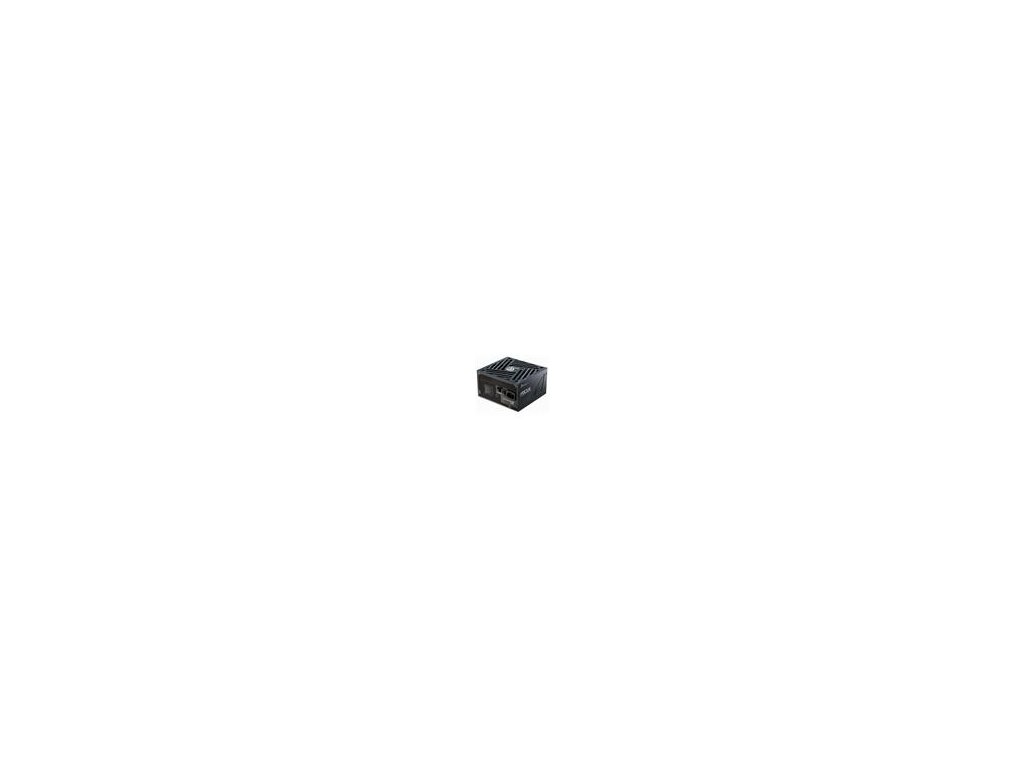

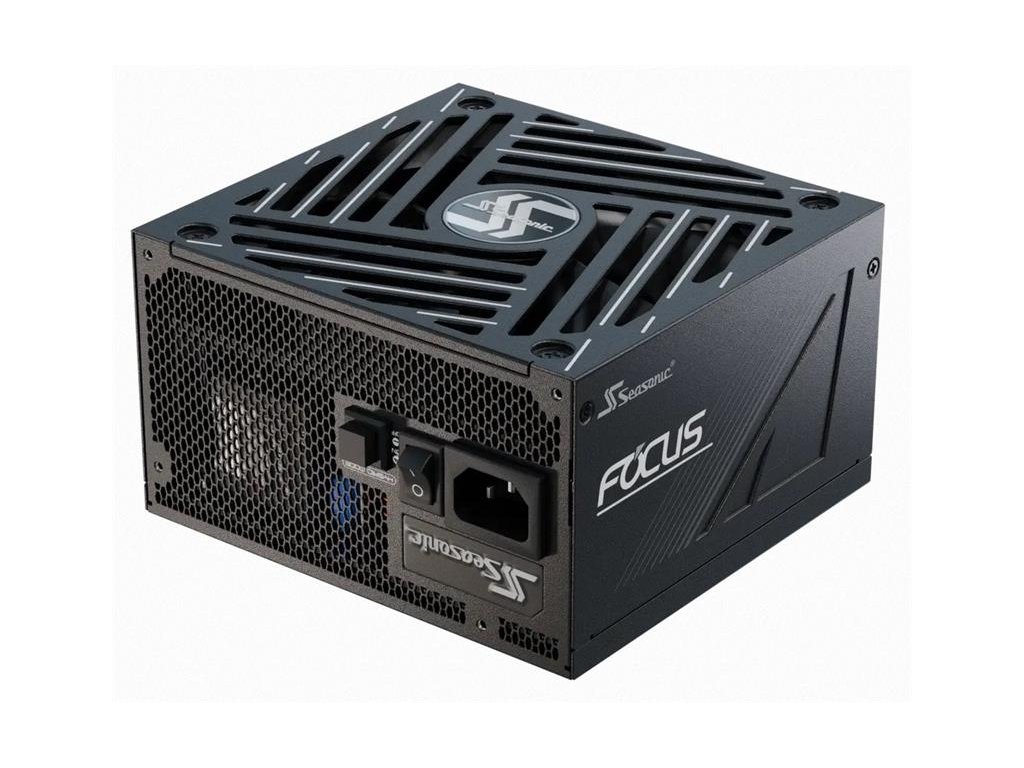

Seasonic FOCUS GX GOLD 850W V4 ATX 3.1, PCIe 5.1, modular FOCUS-GX-850-V4
Kód produktu:
PSSSFOCUS-GX-850-V4W
Značka: SEASONIC
Bezplatné parkovanie
Potrebné nahlásiť ŠPZ vopred.
Profesionálne služby
Inštalácie, servis a poradenstvo.
Rýchle dodanie
Doručenie objednávky do 24-48h.
Popis produktu
Detailný popis produktu
FOCUS GX ATX 3 Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2×6 cable, and our new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market. Availability varies by region: Asia: Already available. Europe: October 2024. USA: Mid-November 2024. Specifications 850 W Technical Specifications 80PLUS® Gold Cybenetics Efficiency Level Gold Cybenetics Noise Level Standard++ Form Factor ATX/EPS Fan Information Fan Size 135 mm Fan Control Digital Hybrid Fan Control Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Individual Black Cables with Braided Pattern Electrical Features Operating Temperature 0 - 50 °C MTBF @ 25 °C, excl. fan 100,000 hours AC Input Full Range Protection OCP, OPP, OTP, OVP, SCP, UVP Safety and Environmental Safety and EMC CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC Environmental Compliance Energy Star, ErP Lot 6, REACH, RoHS, WEEE Warranty 10 Years Power Output AC Input 100 V - 240 V 13 - 6.5 A 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 25 A 25 A 83 A 0.3 A 3 A 125 W 996 W 3.6 W 15 W Total continuous power 1000 WParametre produktu
| Záruka: | 3720 dní |
|---|---|
| Hmotnosť: | 3.44 kg |
| Výkon zdroja: | 700 - 900W |
| Výkon [W]: | 850 |
| Vstupné napájanie: | Full range(100-240V) |
| Ventilátor [mm]: | 135 |
| ATX 20+4pin: | 1 |
| Účinnosť [%]: | 90 |
| Formát: | ATX, E-ATX |
| PFC filter: | Aktívny |
| Molex: | 3 |
| FDD: | 0 |
| Modulárna kabeláž: | Áno |
| ATX12V 4+4pin: | 2 |
| SATA: | 6 |
| PCI-E-6+2pin: | 3 |
| PCI-E-6pin: | 0 |
| Kategória: | PC zdroje |
| MPN: | FOCUS-GX-850-V4 |
