Roline Konektor 8/8 RJ45 cat.6a, 10Gbit, na drôt aj lanko, montáž bez klieští AWG 22-27 21170325
Kód: SKNET_21170325BS
Bezplatné parkovanie
Potrebné nahlásiť ŠPZ vopred.
Profesionálne služby
Inštalácie, servis a poradenstvo.
Rýchle dodanie
Doručenie objednávky do 24-48h.
Podrobný popis
Fast and easy tool-free installable unshielded RJ45 connectorCat.6A / Class EA performance according to ISO/IEC11801 and IEC60603-7
Compact cable manager for round AWG22/1-26/1(1/0.65-1/0.4mm) and stranded cable AWG 22/7-26/7 For cable OD:5.0-8.5mm
For cable with outer diameter OD: 5.0 - 8.5mm

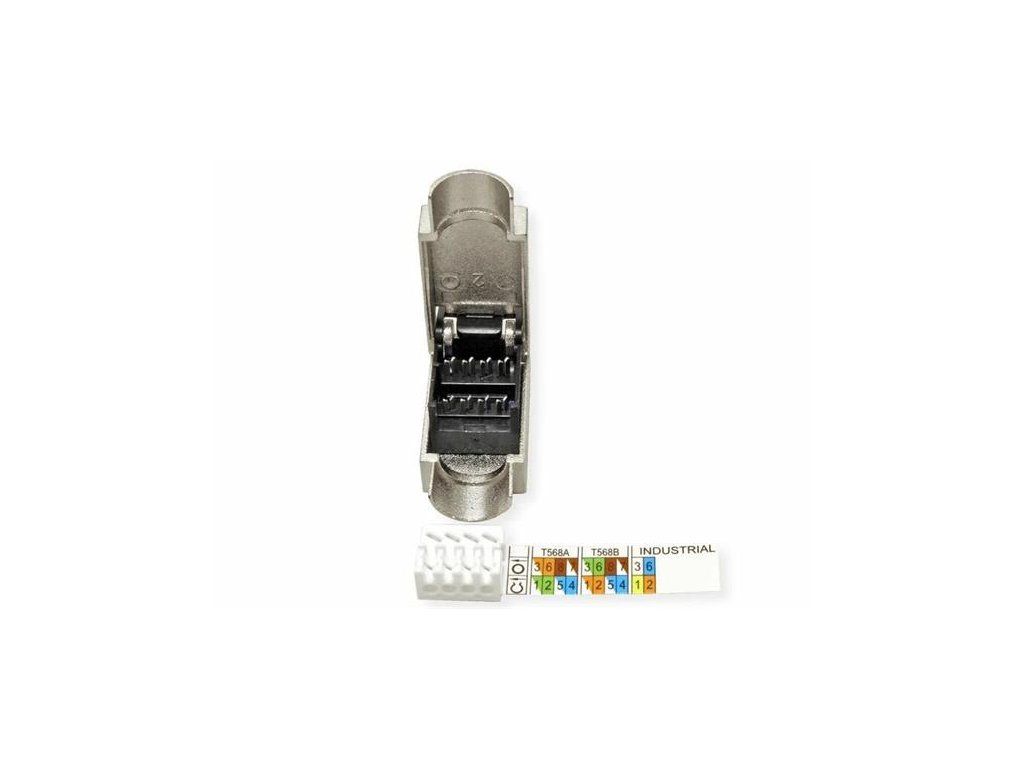

Pair management according to TIA 568B and TIA 568A colour codes
Robust zinc die-cast housing
Strain relief with cable tie and black transparent dust cup and boot
Color: silver
Technical specifications
Product group Connection technology TP
Product type Connectors RJ-45
Colour silver
Shield type Screened
Transfer quality Cat6A / Class EA
Shield contacts ja
separate strain relief Yes
Height 13.4 mm
Width 14.15 mm
Depth 56.3 mm
Weight 20.7 g
Height of packaging (single piece) 10 mm
Width of packaging (single piece) 10 mm
Depth of packaging (single piece) 60 mm
Package weight (single piece) 0.03 kg
Dodatočné parametre
| Kategória: | Spojky a Rozdvojky |
|---|---|
| Záruka: | 744 dní |
| Hmotnosť: | 0.1 kg |
| Typ: | Spojka |
| Tienenie: | Áno |
| Kategória: | CAT6A |
| MPN: | 21170325 |
