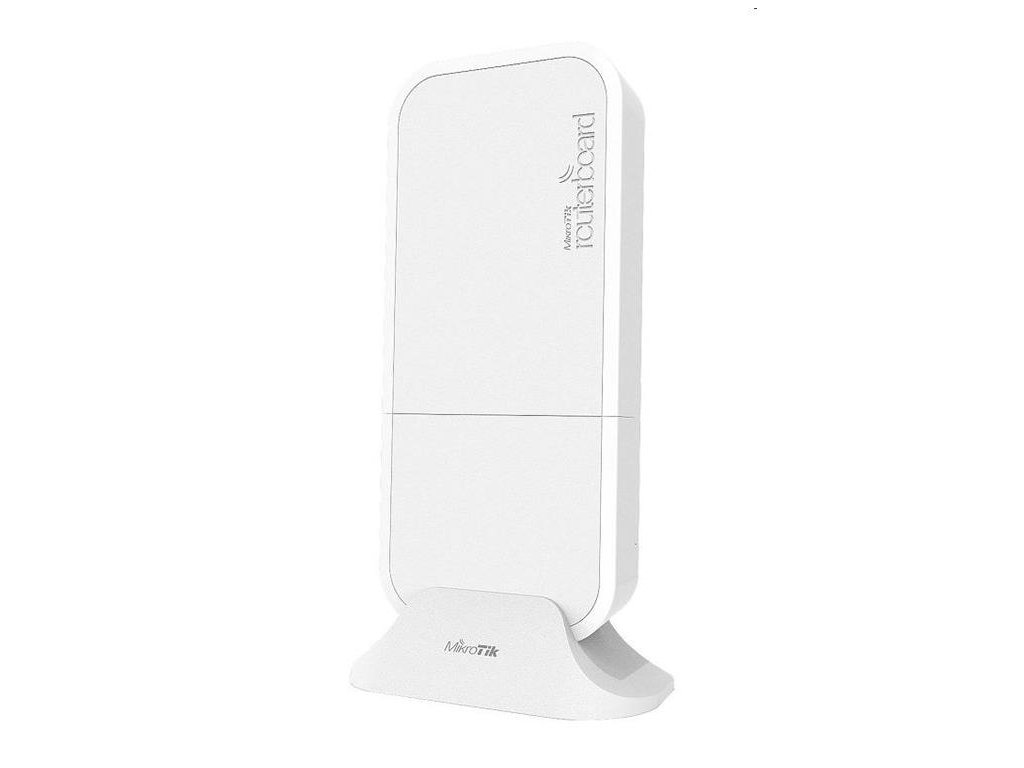

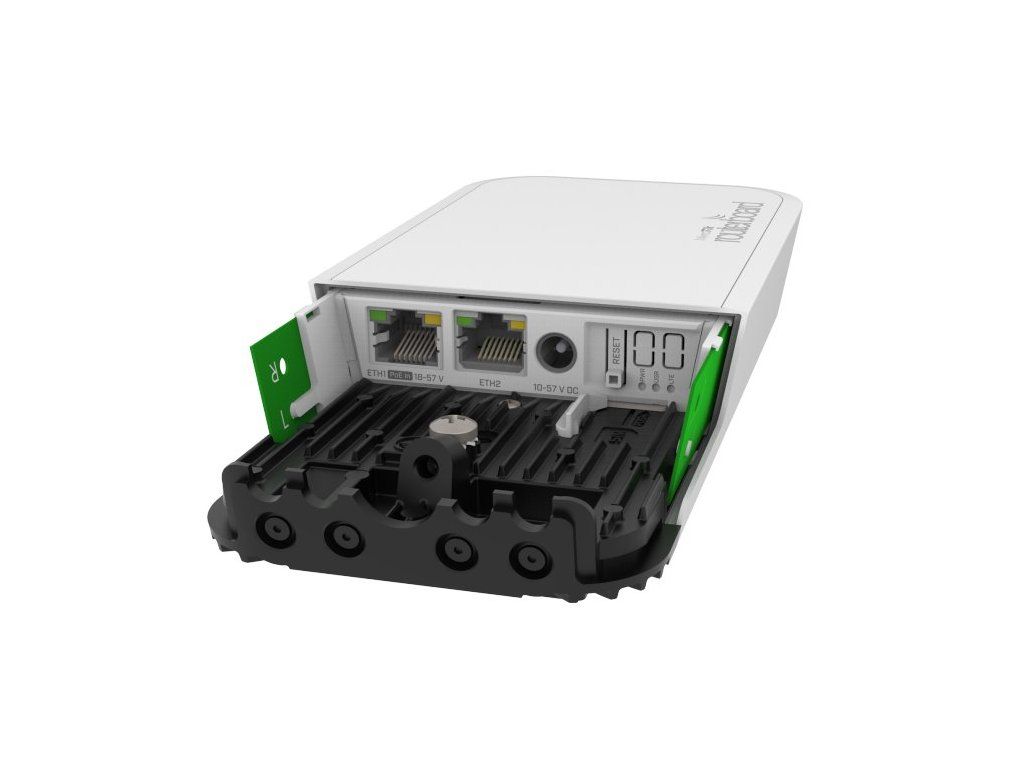

MIKROTIK RouterBOARD wAP AC LTE6 + L4 (716MHz, 128MB RAM, 2xGLAN, 1x 802.11ac) outdoor RBwAPGR-5HacD2HnD&R11e-LTE6
Kód: MIKRO-WAPGR-5HACD2HND-LTE6W
Bezplatné parkovanie
Potrebné nahlásiť ŠPZ vopred.
Profesionálne služby
Inštalácie, servis a poradenstvo.
Rýchle dodanie
Doručenie objednávky do 24-48h.
Podrobný popis
tabulka datové propustnosti
Specifications
| Details | |
|---|---|
| Product code | RBwAPGR-5HacD2HnD&R11e-LTE6 |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| IPsec hardware acceleration | Yes |
| RouterOS license | 4 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -30°C to 60°C |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 16 W |
| Max power consumption without attachments | 10 W |
| FAN count | Passive |
Mobile
| Details | |
|---|---|
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
Other
| Details | |
|---|---|
| PCB tempe | |
| Kategória: | 4G / LTE modemy |
|---|---|
| Záruka: | 744 dní |
| Hmotnosť: | 0.78 kg |
| Počet Gigabit LAN port: | 2 |
| RAM [MB]: | 128 |
| Počet 1G LAN port: | 2 |
| Optika: | Nie |
| Prevedenie: | Outdoor |
| Napájanie PoE: | Áno |
| Wireless: | Áno, 2,4 + 5 GHz |
| LTE: | Áno |
| CPU: | 720 MHz, 716 MHz (4 jadrá) |
| Kategória: | Mikrotik - LTE |
| Typové označenie: | WAP |
| Licencia: | L4 |
| MPN: | RBwAPGR-5HacD2HnD&R11e-LTE6 |
