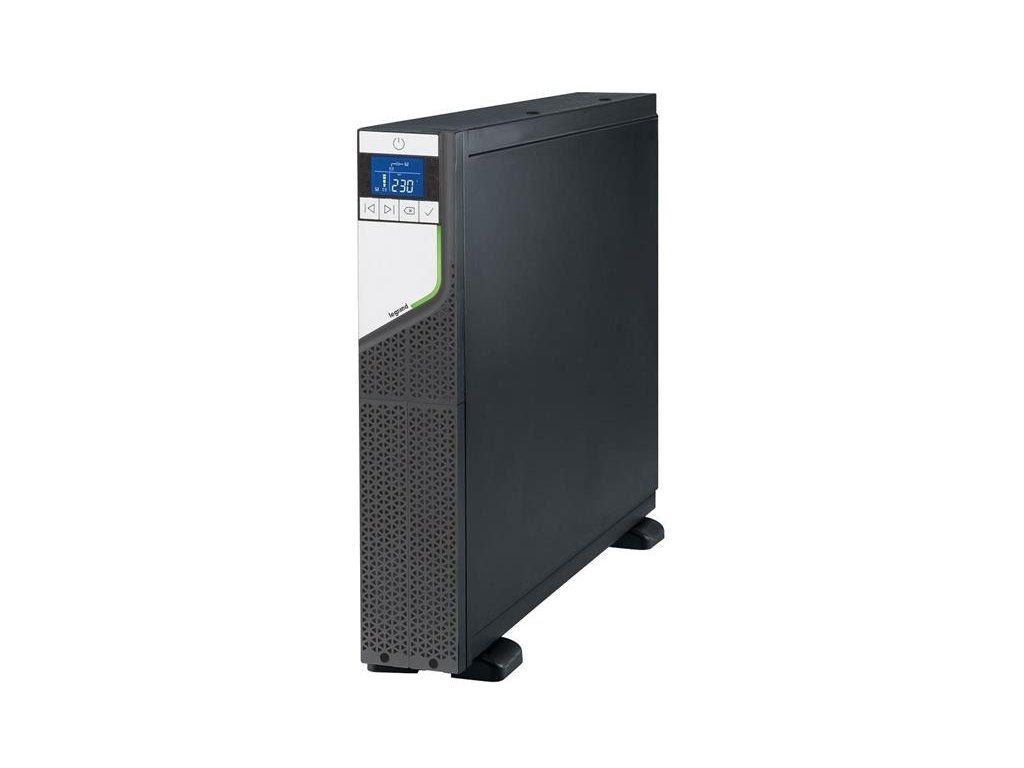

Legrand UPS KEOR SPE RT2U 3000VA/2700W 311072

Podrobný popis

Charakteristika produktu

Linka - Interaktívna

Čistý sínusový výstup

Účiník: 0,9

19" rack typ 2U

Konvertibilná obrazovka

Výhody produktu

Výhody

USB & RS232 port & SNMP & EPO & 2 DRY CONTACT

8 x 10A IEC + 1 x 16A IEC



Technical characteristics

Input voltage 175 - 288 V

Primary frequency 47-63 Hz

Number of phases primary 1

Output voltage 208-240 V

Secondary frequency 50-60 Hz

Output effective power 2700 W

Output apparent power 3000 VA

USB interface Yes

With communication interface RS-232 No

SNMP Yes

Voltage type AC

Height 88 mm

Width 440 mm

Depth 600 mm

Weight 29.5 kg

Bridging time full load 0.00016 min

Suitable for network-management Yes

USV- technology Line-interactive

Construction type 482.6 mm (19 inch) device

Max. voltage distortion output (linear load) 3 %

Output power factor 0.9

Overall efficiency 85 %

Efficiency in eco-mode 98 %

Potential free switch contact Yes

Auto shut down function Yes

Input connection C20

Number of output connections C13 8

Number of output connections C19 1

Number of output connections with protective contact CEE 7/3 (type F) 0

Number of output connections fixed connection 0

Degree of protection (IP) IP20

Operating / setting temperature 0-40 °C

Storage temperature 0-50 °C

Supply current 10-17 A

Sound level 55 dB

Terminal marking indication Yes

Type of load Not applicable

With socket outlet Yes

Contains Batteries and/or Accumulator Yes
