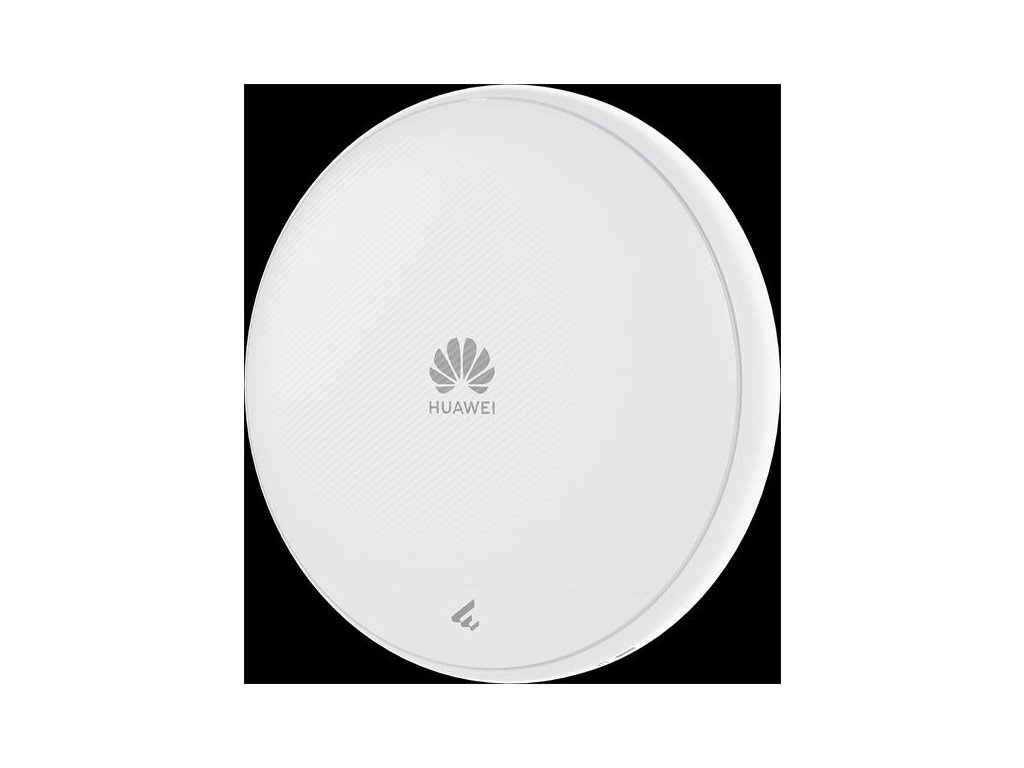

Huawei Wireless LAN Equipment,AP371,AP371(11be indoor,2+2 dual bands,smart antenna,USB,BLE),AP371,RJ45*1,11be,dual bands 50087399-001

Detailný popis produktu

Installation Type •Wall •Ceiling •T-Rail

Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.)

Weight without packaging [kg(lb)] 0.47 kg (1.04 lb)

Weight with packaging [kg(lb)] 0.69 kg (1.52 lb)

Maximum power consumption [W] 13.60 W

Power supply mode •DC adapter •PoE

Rated input voltage [V] 12 V

Input voltage range [V] DC: 12 V ± 10% PoE: 802.3at/af

Maximum number of physical ports on the entire device 2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing

Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3

Ground floating ground

Radio number 2

Operating frequency band •2.4GHz •5GHz

MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be

Radio interface Built-in smart antennas

Antenna gain 2.4 GHz: 4 dBi/chain (peak gain) 1 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BLE: 4 dBi (peak gain)

Maximum transmit power 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power)

Singal radio transmit power [dBm] 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain
