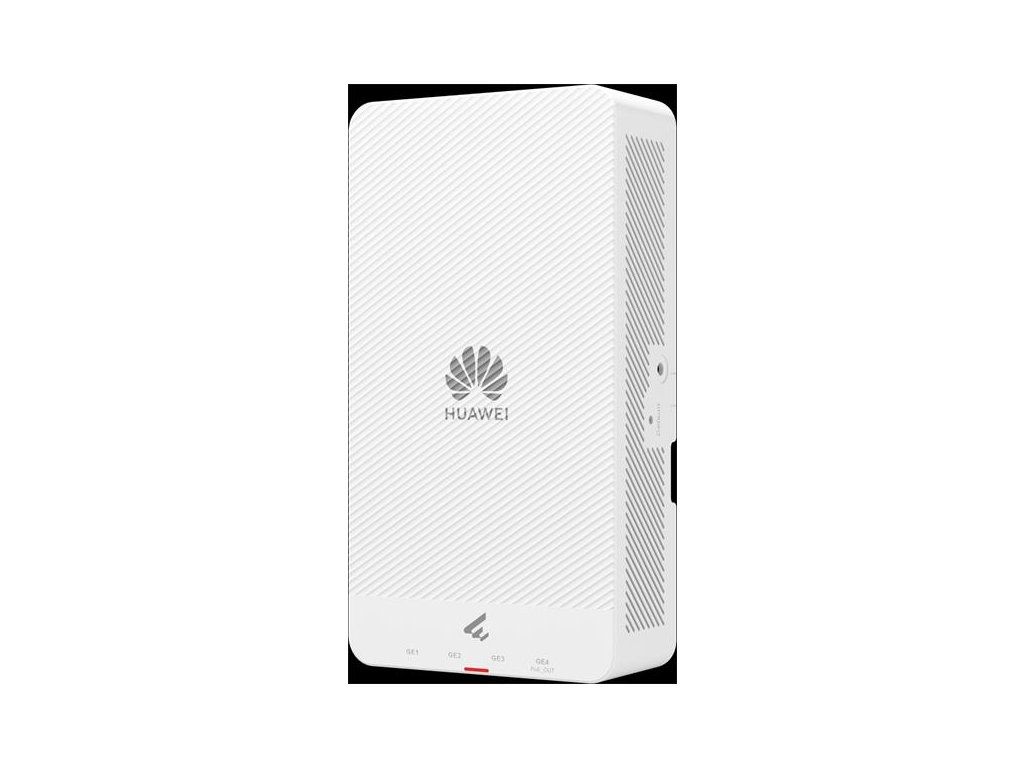

Huawei Wireless LAN Equipment,AP266,AP266(11ax indoor,2+2 dual bands,smart antenna,PSE),AP266,RJ45*5,11ax,dual bands,300 50087274

Detailný popis produktu

First supported version V200R024C00

Installation Type Desk,Wall,Ceiling,Junction Box

Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.)

Weight without packaging [kg(lb)] 0.23 kg (0.51 lb)

Weight with packaging [kg(lb)] 0.42 kg (0.93 lb)

CPU 2-core, 1.2 GHz

Memory DDR3: 256 MB

Power supply mode PoE

Storage NAND Flash 256 MB

Rated input voltage [V] NA

Input voltage range [V] PoE: 802.3at/af

Service port surge protection PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms, criterion B

Maximum PoE output power [W] 15 W

Maximum number of physical ports on the entire device GE (RJ45) x 5, 10M/100M/1000M auto-sensing

Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3

Ground floating ground

Radio number 2

MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface Built-in smart antennas

Antenna gain 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain)

Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)

MTBF [year] 235.46

MTTR [hour] 2

Maximum power consumption [W] 9.4 W (excluding PoE out)

Maximum heat dissipation [BTU/hour] 32.07

802.3bt power supply description The power supply mode is negotiated to 802.3at, and no function is restricted.

802.3at power supply description The power supply mode is negotiated to 802.3at, and no function is restricted.

802.3af power supply description The power supply mode is negotiated to 802.3af, and the PSE out function is unavailable.

Operating frequency band 2.4GHz,5GHz

Frequency stability [ppm] +/-20

PoE Supported
