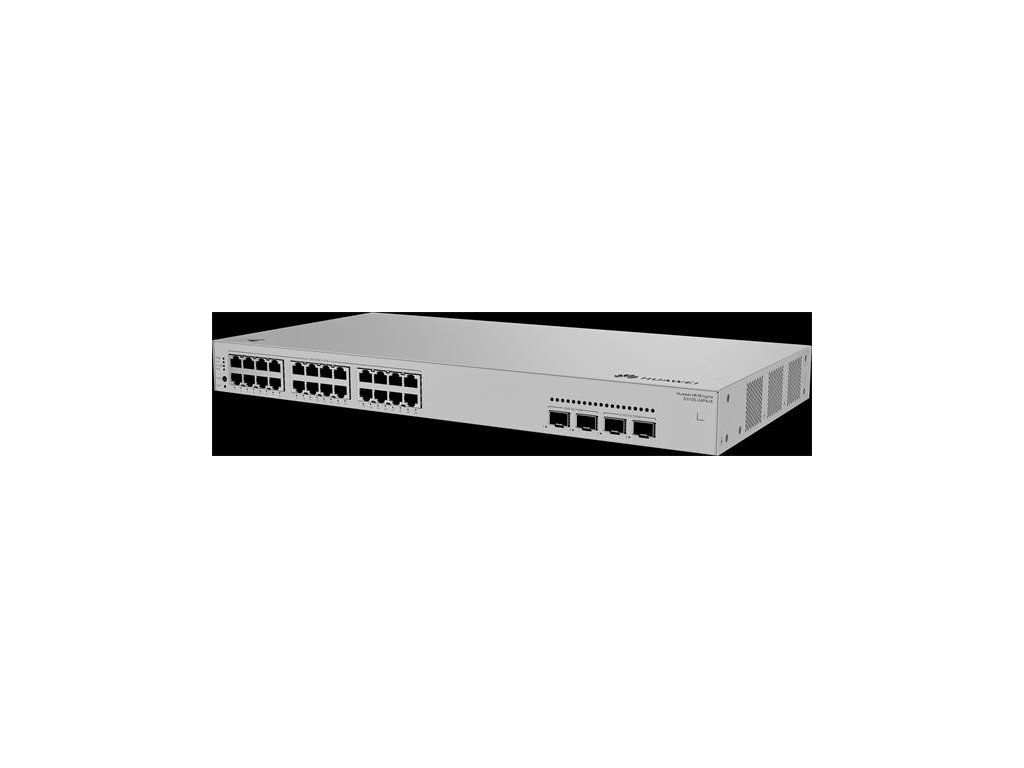

Huawei Data Communication,S310S-24P4JX,S310S-24P4JX,S310S-24P4JX (24*10/100/1000BASE-T ports (400 W PoE+), 2*10GE SFP+ p 98012525

Detailný popis produktu

Remarks If the upper-level circuit breaker for a device is also connected to many other devices, a C32 or above circuit breaker needs to be used. If the upper-level circuit breaker for a device is connected only to this device, a C25 or below circuit breaker can be used.

Certification EMC certification Safety certification Manufacturing certification

Chassis material Metal

Static power consumption [W] 18.74

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Chassis height [U] 1

Installation type Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)] 2.8 kg (6.17 lb)

Weight with packaging [kg(lb)] 3.71 kg (8.18 lb)

Typical power consumption [W] 33.32

Typical heat dissipation [BTU/hour] 113.68

Maximum power consumption [W] - Without PoE: 38.58 W - Full PoE load: 482.55 W (PoE: 400 W)

Maximum heat dissipation [BTU/hour] - Without PoE: 131.63 - Full PoE load: 1646.51

MTBF [years] 48.77

MTTR [hours] 2

Availability > 0.99999

Noise at normal temperature (acoustic power) [dB(A)] 52.8

Noise at high temperature (acoustic power) [dB(A)] 58.6

Noise at normal temperature (acoustic pressure) [dB(A)] 40.1

Number of fans modules 2

Maximum number of physical ports on the entire device 28

Maximum number of 10GE ports 2

Maximum number of 2.5GE ports 2

Maximum number of GE ports 28

Maximum number of FE ports 28

Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)

Power supply mode AC built-in

Rated input voltage [V] - AC input: 100 V AC to 240 V AC, 50/60 Hz - High-voltage DC input: 240 V DC

Input voltage range [V] - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC

Maximum input current [A] 6 A

Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV

Ingress protection level (dustproof/waterproof) IP20

Types of fans Built-in

Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction Air intake from left and front, air exhaustion from right

PoE Supported

100% power consumption [W] 33.92

Maximum PoE power consumption [W] 400

PoE+ power interfaces 24

Full load PoE power consumption 30W (802.3at) 13

Full load PoE power consumption 15.4W (802.3af) 24
