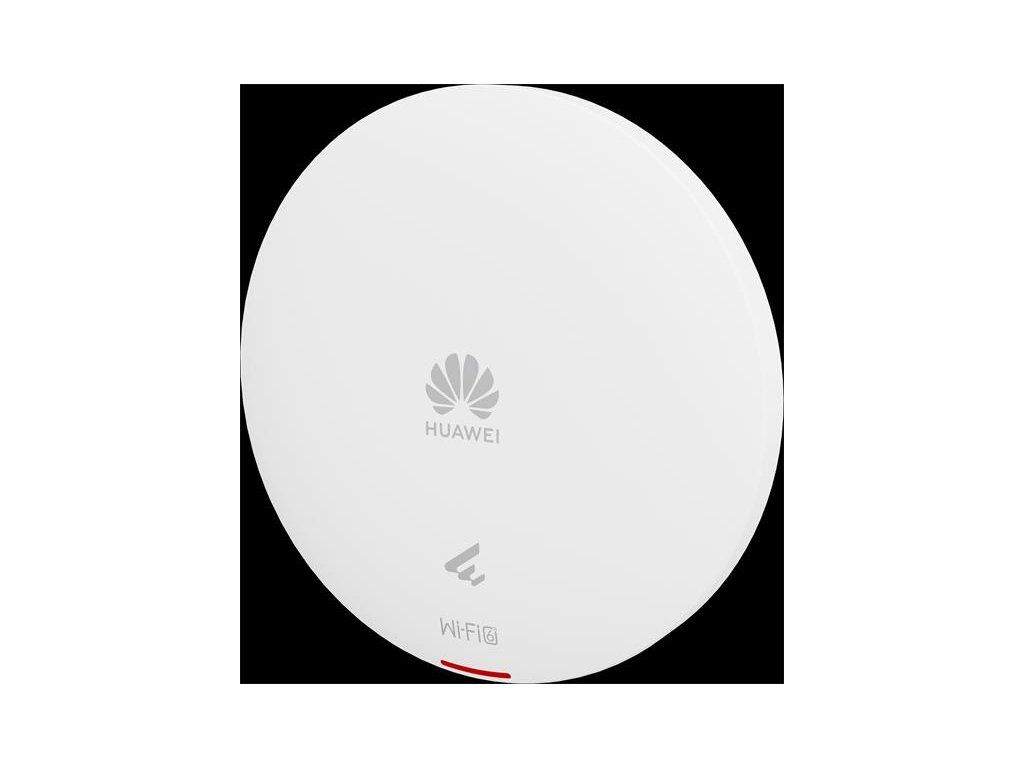

Huawei AP361(11ax indoor,2+2 dual bands,smart antenna),1800 Mbps,1 x GE uplink electrical port 50086871

Detailný popis produktu

Installation Type Wall,Ceiling,T-Rail

Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.)

Weight without packaging [kg(lb)] 0.45 kg (0.99 lb)

Weight with packaging [kg(lb)] 0.75 kg (1.65 lb)

Power supply mode PoE

Input voltage range [V] PoE: 802.3af

Service port surge protection PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing

Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3

Ground floating ground

Radio number 2

MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax

Radio interface Built-in smart antennas

Antenna gain 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)

Maximum transmit power 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power)

Operating frequency band 2.4GHz,5GHz
