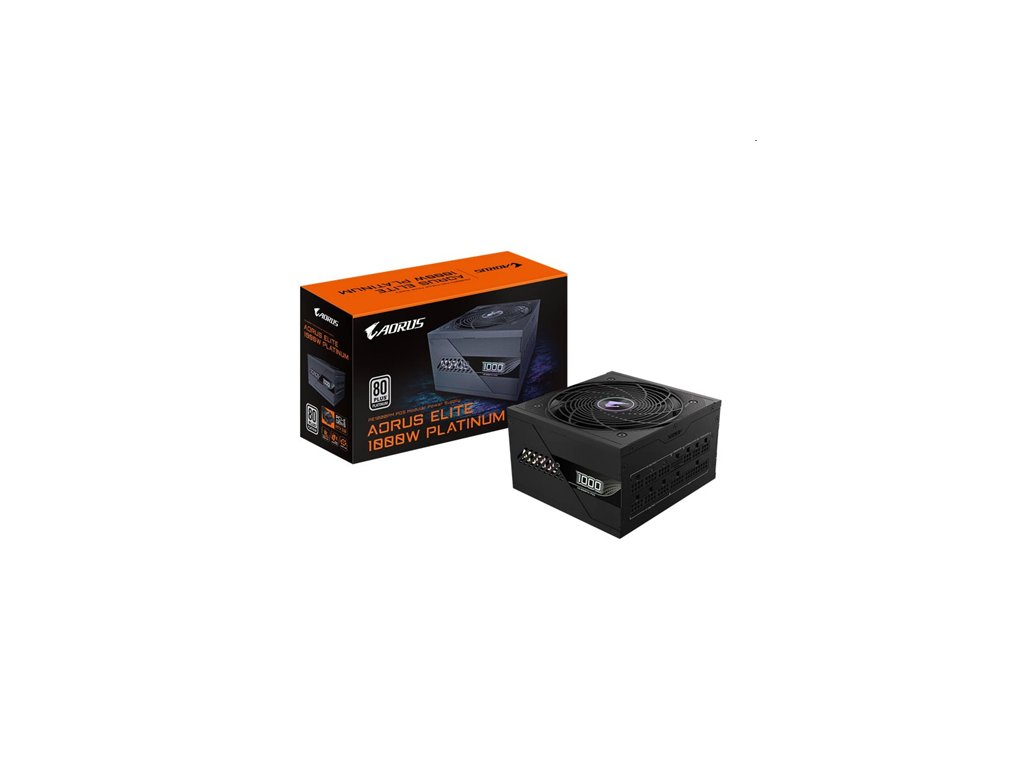

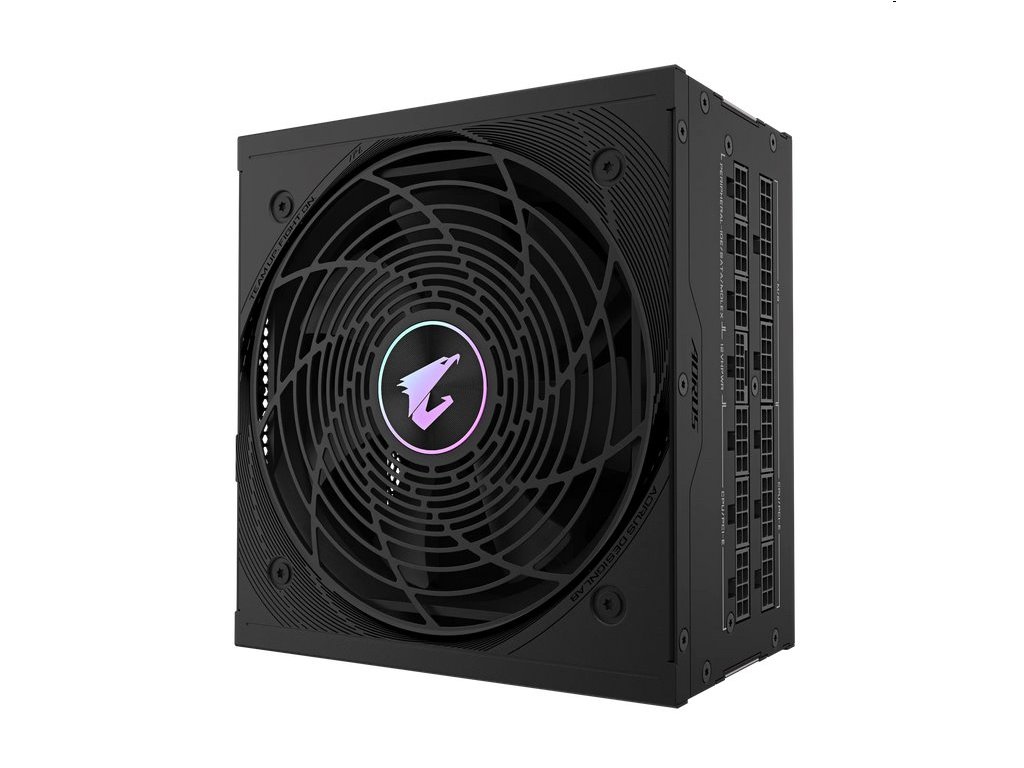

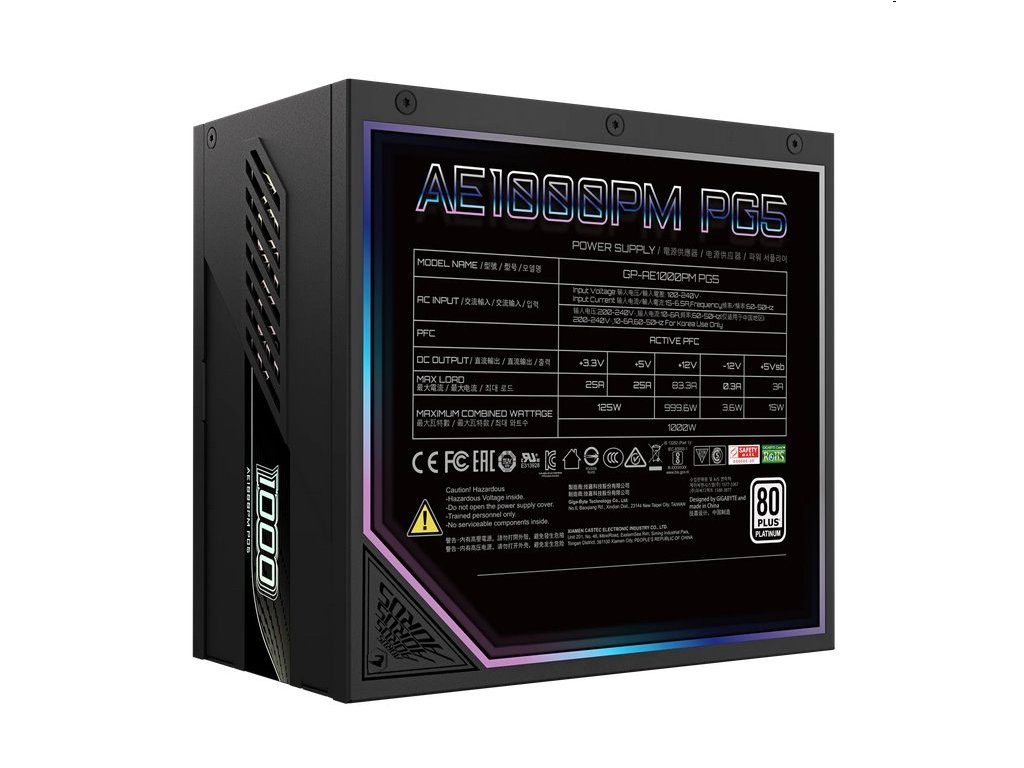

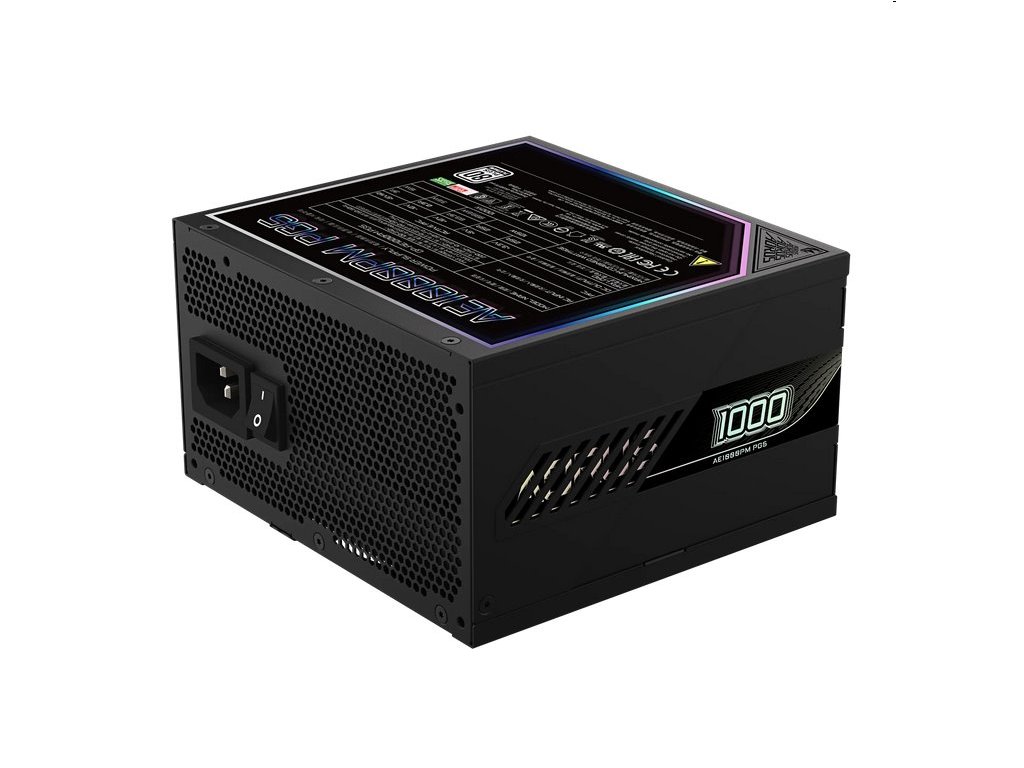

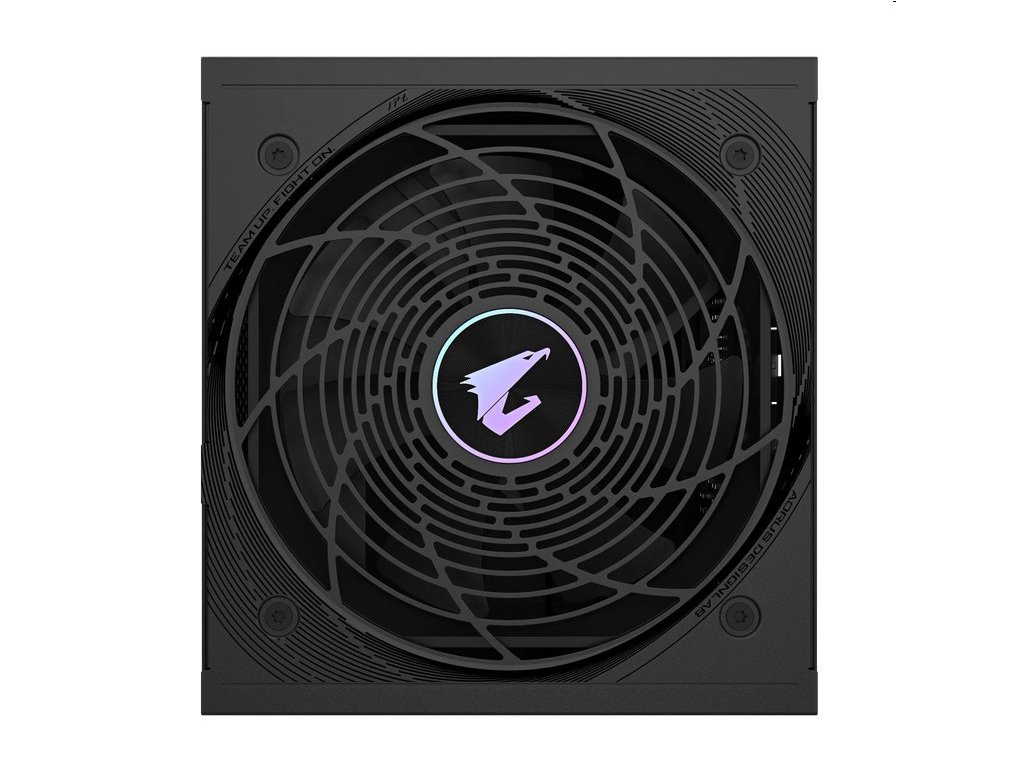

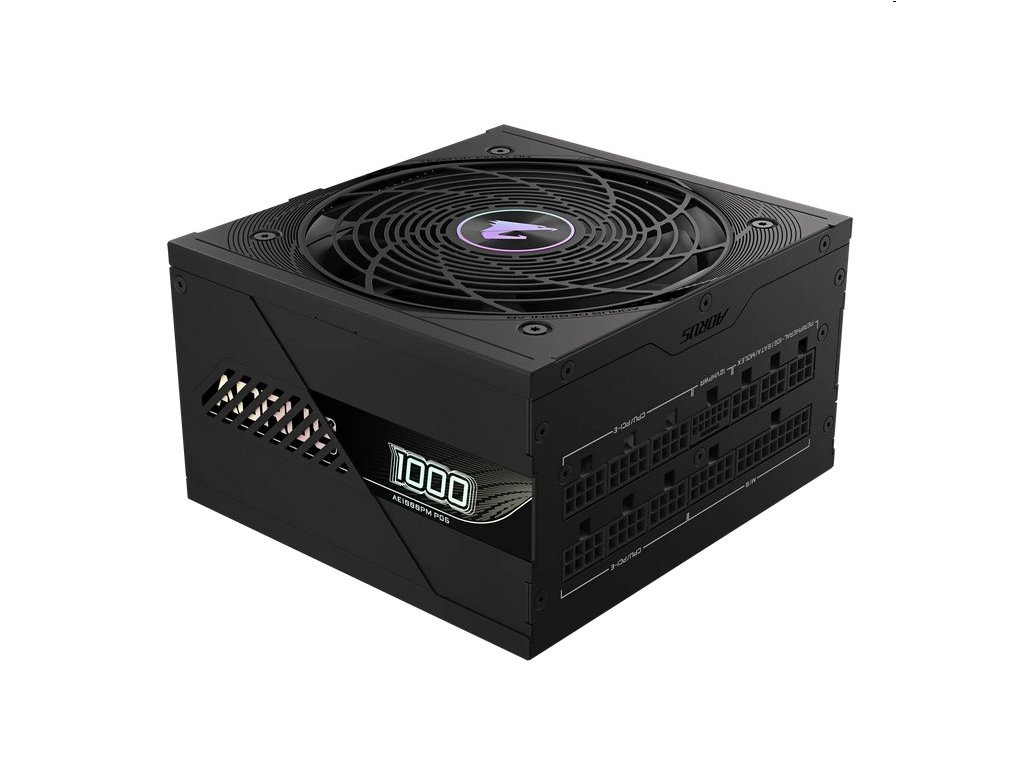

Gigabyte AORUS ELITE P1000W 80+ Platinum Modular PCIe 5 GP-AE1000PM PG5

Detailný popis produktu

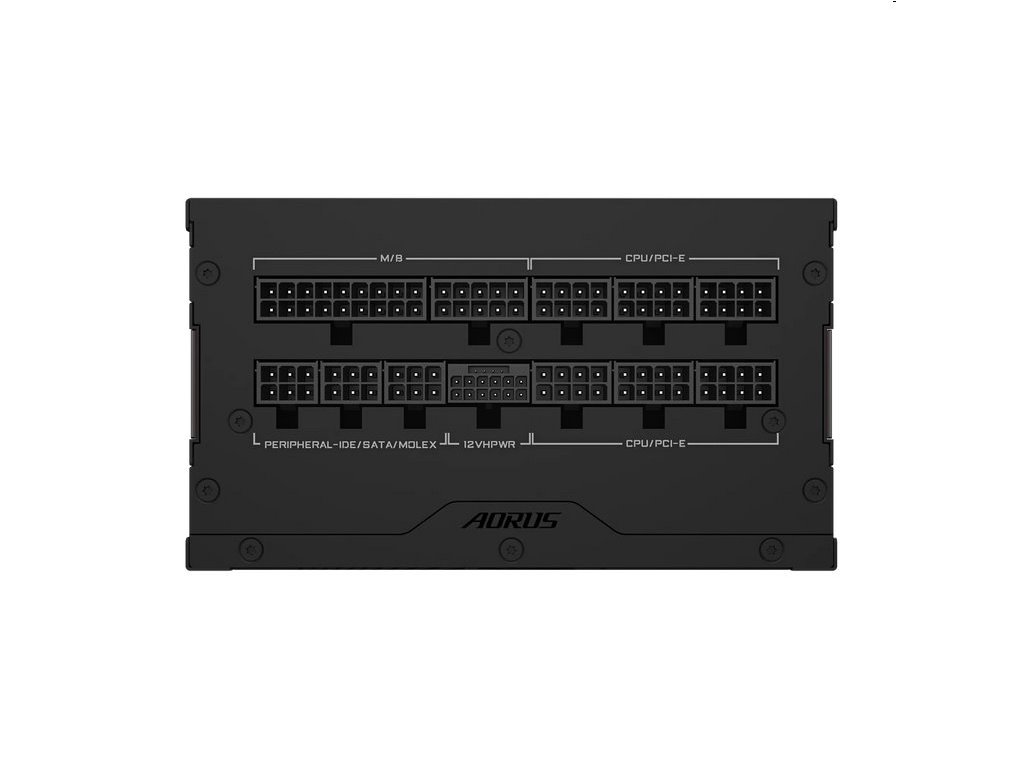

KEY FEATURE ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1) 80 PLUS Platinum certified 100% Japanese capacitors 120mm smart Fluid Dynamic Bearing (FDB) fan Compact design Fully modular design Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 10 years warranty (Adjusted according to different regions) Model GP-AE1000PM PG5 Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 1000W Dimension 150 x 140 x 86mm Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 650mm*1 CPU/EPS 4+4 Pin x 2 : 700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
