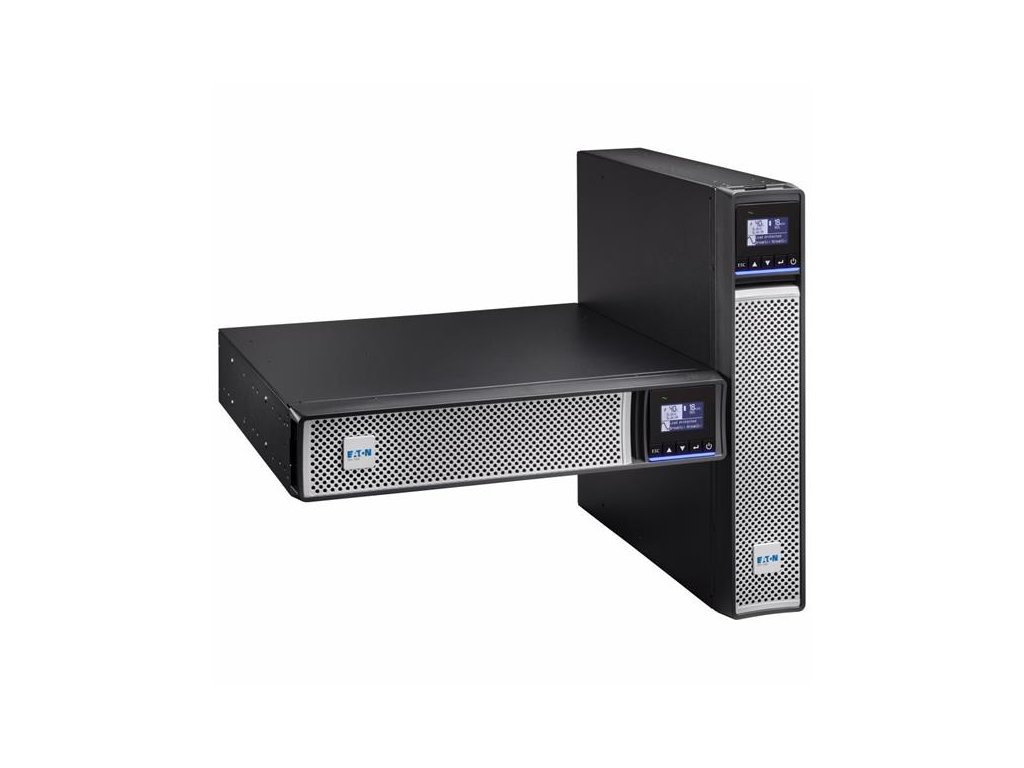

Eaton 5PX Gen2 UPS, 1500 VA, 1500 W, Input: C14, Output: (8) C13, Rack/tower, 2U, Network card included 5PX1500IRTNG2

Podrobný popis

Vďaka optimalizovanému elektrickému dizajnu môže 5PX poskytnúť až 99% účinnosť, čím sa znižujú náklady na chladenie a energiu. Nový grafický LCD displej poskytuje jasné informácie o stave a meraniach UPS na jednej obrazovke. Prvýkrát v tomto odvetví môže 5PX merať energiu spotreby. Hodnoty kWh je možné sledovať pomocou LCD displeja.
Ovládanie záťažového segmentu je možné použiť aj na diaľku, reštartujte zablokované sieťové zariadenia alebo spravujte naplánované odstávky a postupné spúšťania zariadení. 5PX ponúka sériové a USB pripojenie, plus extra slot pre voliteľnú komunikačnú kartu vrátane SNMP/Web kartu alebo reléovú kontaktnú kartu). Softvér Intelligent Power od spoločnosti Eaton
kompatibilný so všetkými hlavnými operačnými systémami vrátane virtualizačného softvéru VMware a Hyper-V.

PRODUCT NAME

Eaton 5PX Gen2 UPS

CATALOG NUMBER

5PX1500IRTNG2

MODEL CODE

Eaton 5PX 1500i RT2U Netpack G2

UPC

743172104755

PRODUCT LENGTH/DEPTH

448 mm

PRODUCT HEIGHT

85.5 mm

PRODUCT WIDTH

438 mm

PRODUCT WEIGHT

22.4 kg

WARRANTY

3 year on electronics, 2 year on battery

COMPLIANCES

IEC/EN 62040-1

IEC/EN 62040-2

IEC/EN 62040-3

RoHS Compliant

REACH

UL 1778

CSA 22.2

CERTIFICATIONS

CE

cTUVus

EAC

Cm

UKCA

Ukr

KCC

ENERGY STAR certified

MODEL CODE

Eaton 5PX 1500i RT2U Netpack G2

PRODUCT SPECIFICATIONS

SECONDARY FREQUENCY - MAX

60 Hz

OUTPUT WAVEFORM

Sine wave

MAX NUMBER OF BATTERY PACKS

4

WATTAGE

1500 W

OUTPUT POWER FACTOR

1

FORM FACTOR

Rack/tower

INCLUDES NETWORK CARD

Yes

INPUT CONNECTION

C14

INPUT VOLTAGE - MIN

150 V

OUTPUT VOLTAGE - MAX

240 V

SECONDARY FREQUENCY - MIN

50 Hz

SOFTWARE COMPATIBILITY

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

BATTERY REPLACEMENT

User replaceable

BATTERY TYPE

Lead-acid maintenance-free (replaceable)

EFFICIENCY

98

SPECIAL FEATURES

Automatic Voltage Regulation (AVR)

Energy efficient, reduce energy and cooling costs

Delivers clean sinewave output

Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)

LCD display for real-time status and measurements

Network card and rackmounting kit delivered as standard

Long backup time with up to 4 optional EBM

Meter energy consumption (down to the managed outlet groups)

Versatile product for rack or tower installation

1 slot for optional com card (Network management card, Relay card or Network and Industrial card)

Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

1 USB port + 1 serial port

CONSTRUCTION TYPE

482.6 mm (19 inch) device

OUTPUT VOLTAGE - MIN

200 V

COLOR

Black/silver

EXTENDED BATTERY CAPABILITY

Yes

OUTPUT VOLTAGE RANGE

230 V (+6%/-10%)

TOPOLOGY

Line-interactive

BACK-UP TIME

14 min

INPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240V)

INPUT FREQUENCY RANGE

47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

INPUT VOLTAGE - MAX

294 V

VOLTAGE TYPE

AC

PHASE (OUTPUT)

1

BATTERY MANAGEMENT

ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

INTEGRATED FUNCTIONALITY

Network Mangement

AUTO SHUTDOWN FUNCTION

Yes

NUMBER OF OUTPUTS C13

8

VA RATING

1500 VA

POTENTIAL FREE SWITCH CONTACT

Yes

RECEPTACLE

(8) C13

PHASE (INPUT)

1

PACKAGE CONTENTS

Network Management Card

Rack-mounting kit

(2) Supports for tower mounting

Cable locking system

USB cable

Serial cable

(2) IEC-IEC cables

Quickstart guide

Safety instructions

NOISE LEVEL

<40 dB at 1 meter

FEED TYPE

1

RUNTIME GRAPH

View runtime graph

USER INTERFACE

Multilingual graphical LCD display

BATTERY QUANTITY

4

RACK SIZE

2U

VOLTAGE

230V

TEMPERATURE RANGE

0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)

PROTOCOL

SNMP

COMMUNICATION

USB port (HID compliant)

Serial port (RS232)

Mini-terminal block for remote On/Off and Remote Power Off

Mini-terminal block for output relay

Dry contacts (3 outputs, 1 input, optocoupler, DB9)

RELATIVE HUMIDITY

0-90% non-condensing

RACK MOUNTING KIT

Yes

OUTPUT FREQUENCY

50/60 Hz

TYPE OF INTERFACE

Other

PRIMARY FREQUENCY - MIN

47 Hz

BATTERY RATING

12 V / 9 Ah

TYPE

UPS

OUTPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240V)

EXPANSION SLOTS

One slot, network card included

INPUT VOLTAGE RANGE

160-294 V (adjustable to 150 V-294 V)

NOMINAL FREQUENCY

50-60 Hz

PRIMARY FREQUENCY - MAX

70 Hz

ALTITUDE

3000 m
