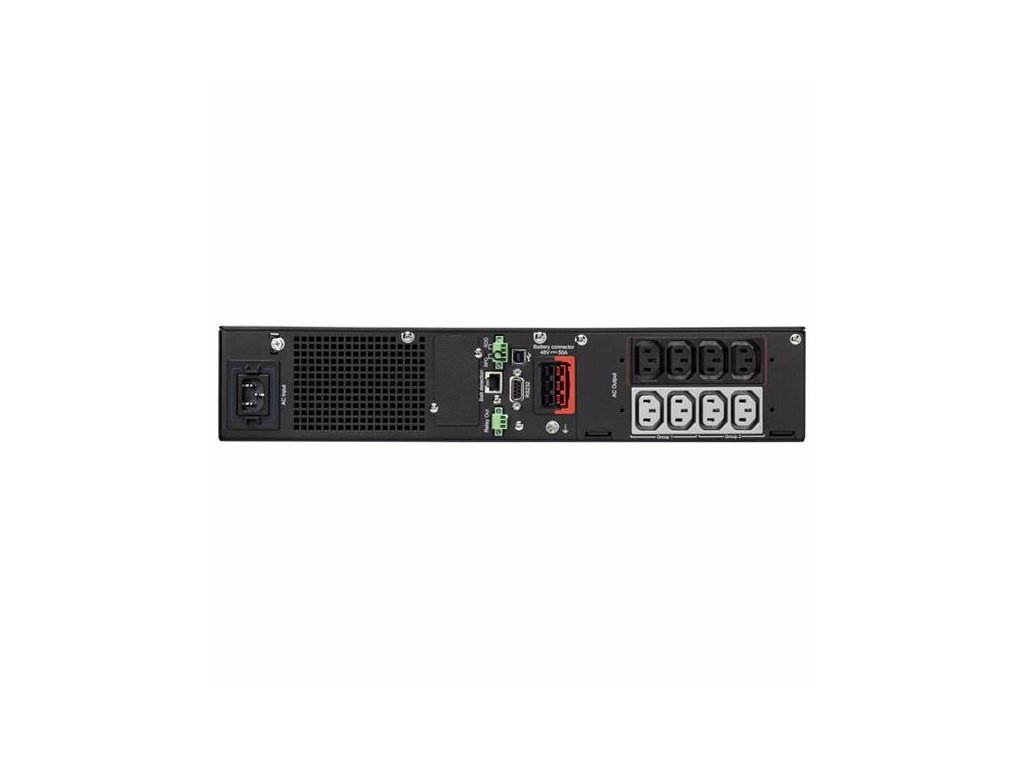

Eaton 5PX Gen2 UPS, 1000VA/1000 W, Input: C14, Output: (8) C13, Rack/tower, 2U, NetworkCard 5PX1000IRTNG2

Podrobný popis

GENERAL SPECIFICATIONS

PRODUCT NAME

Eaton 5PX Gen2 UPS

CATALOG NUMBER

5PX1000IRTNG2

PRODUCT LENGTH/DEPTH

448 mm

PRODUCT HEIGHT

85.5 mm

PRODUCT WIDTH

438 mm

PRODUCT WEIGHT

19.6 kg

WARRANTY

3 year on electronics, 2 year on battery

COMPLIANCES

IEC/EN 62040-1

IEC/EN 62040-2

IEC/EN 62040-3

RoHS Compliant

REACH

UL 1778

CSA 22.2

CERTIFICATIONS

CE

cTUVus

EAC

Cm

UKCA

Ukr

ENERGY STAR certified

MODEL CODE

Eaton 5PX 1000i RT2U Netpack G2

TECHNICKÉ ÚDAJE PRODUKTU

SECONDARY FREQUENCY - MAX

60 Hz

OUTPUT WAVEFORM

Sine wave

MAX NUMBER OF BATTERY PACKS

4

WATTAGE

1000 W

OUTPUT POWER FACTOR

1

FORM FACTOR

Rack/tower

INCLUDES NETWORK CARD

Yes

INPUT CONNECTION

C14

INPUT VOLTAGE - MIN

150 V

OUTPUT VOLTAGE - MAX

240 V

SECONDARY FREQUENCY - MIN

50 Hz

SOFTWARE COMPATIBILITY

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

BATTERY REPLACEMENT

User replaceable

BATTERY TYPE

Lead-acid maintenance-free (replaceable)

SPECIAL FEATURES

Automatic Voltage Regulation (AVR)|Energy efficient, reduce energy and cooling costs|Delivers clean sinewave output|Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)|LCD display for real-time status and measurements|Network card and rackmounting kit delivered as standard|Long backup time with up to 4 optional EBM|Meter energy consumption (down to the managed outlet groups)|Versatile product for rack or tower installation|1 slot for optional com card (Network management card, Relay card or Network and Industrial card)|Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)|1 USB port + 1 serial port

OUTPUT VOLTAGE - MIN

200 V

COLOR

Black/silver

EXTENDED BATTERY CAPABILITY

Yes

OUTPUT VOLTAGE RANGE

230 V (+6%/-10%)

TOPOLOGY

Line-interactive

INPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240V)

INPUT FREQUENCY RANGE

47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

INPUT VOLTAGE - MAX

294 V

VOLTAGE TYPE

AC

PHASE (OUTPUT)

1

BATTERY MANAGEMENT

ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

INTEGRATED FUNCTIONALITY

Network Mangement

AUTO SHUTDOWN FUNCTION

Yes

NUMBER OF OUTPUTS C13

8

VA RATING

1000 VA

POTENTIAL FREE SWITCH CONTACT

Yes

RECEPTACLE

(8) C13

PHASE (INPUT)

1

PACKAGE CONTENTS

Network Management Card|Rack-mounting kit|(2) Supports for tower mounting|Cable locking system|USB cable|Serial cable|(2) IEC-IEC cables|Quickstart guide|Safety instructions

NOISE LEVEL

<40 dB at 1 meter

FEED TYPE

1

RUNTIME GRAPH

View runtime graph

USER INTERFACE

Multilingual graphical LCD display

BATTERY QUANTITY

4

RACK SIZE

2U

VOLTAGE

230V

TEMPERATURE RANGE

0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)

PROTOCOL

SNMP

COMMUNICATION

USB port (HID compliant)|Serial port (RS232)|Mini-terminal block for remote On/Off and Remote Power Off|Mini-terminal block for output relay|Dry contacts (3 outputs, 1 input, optocoupler, DB9)

RELATIVE HUMIDITY

0-90% non-condensing

RACK MOUNTING KIT

Yes

OUTPUT FREQUENCY

50/60 Hz

TYPE OF INTERFACE

Other

PRIMARY FREQUENCY - MIN

47 Hz

BATTERY RATING

12 V / 7 Ah

TYPE

UPS

OUTPUT NOMINAL VOLTAGE

230V default (200/208/220/230/240V)

EXPANSION SLOTS

One slot, network card included

INPUT VOLTAGE RANGE

160-294 V (adjustable to 150 V-294 V)

NOMINAL FREQUENCY

50-60 Hz

PRIMARY FREQUENCY - MAX

70 Hz

ALTITUDE

3000 m
