DIGITUS Zásuvka Profi STP 2 port, Cat6A pod omietku, LSA, biela, vertikal.kabel.instalace DN-9007-1

Podrobný popis

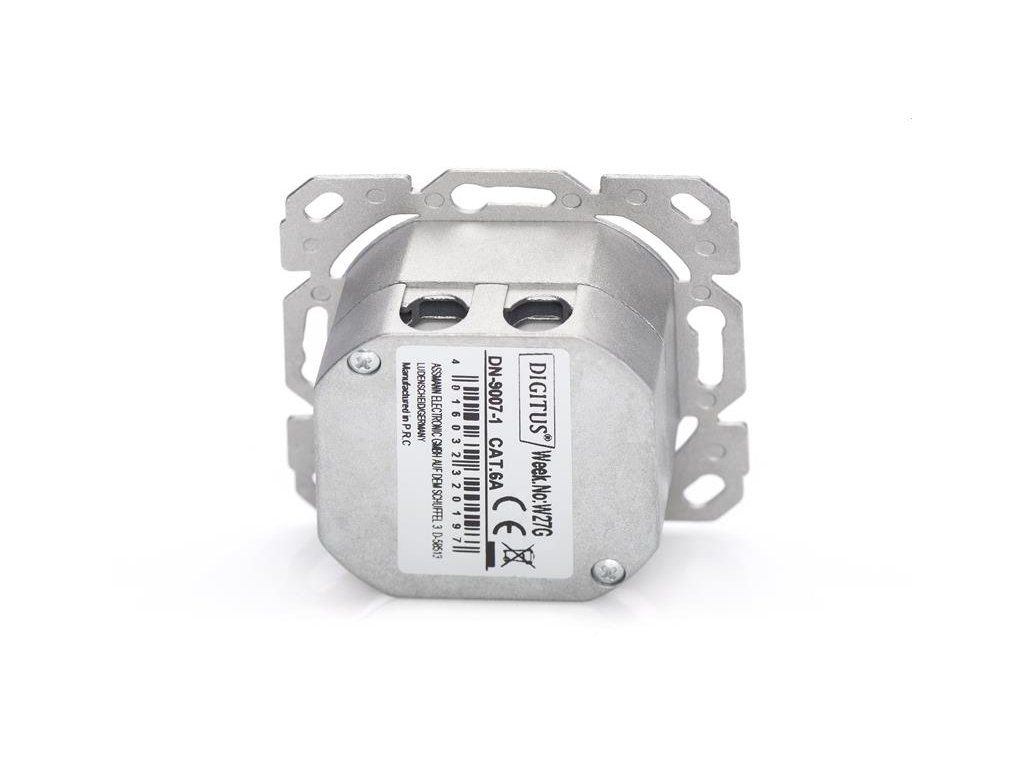

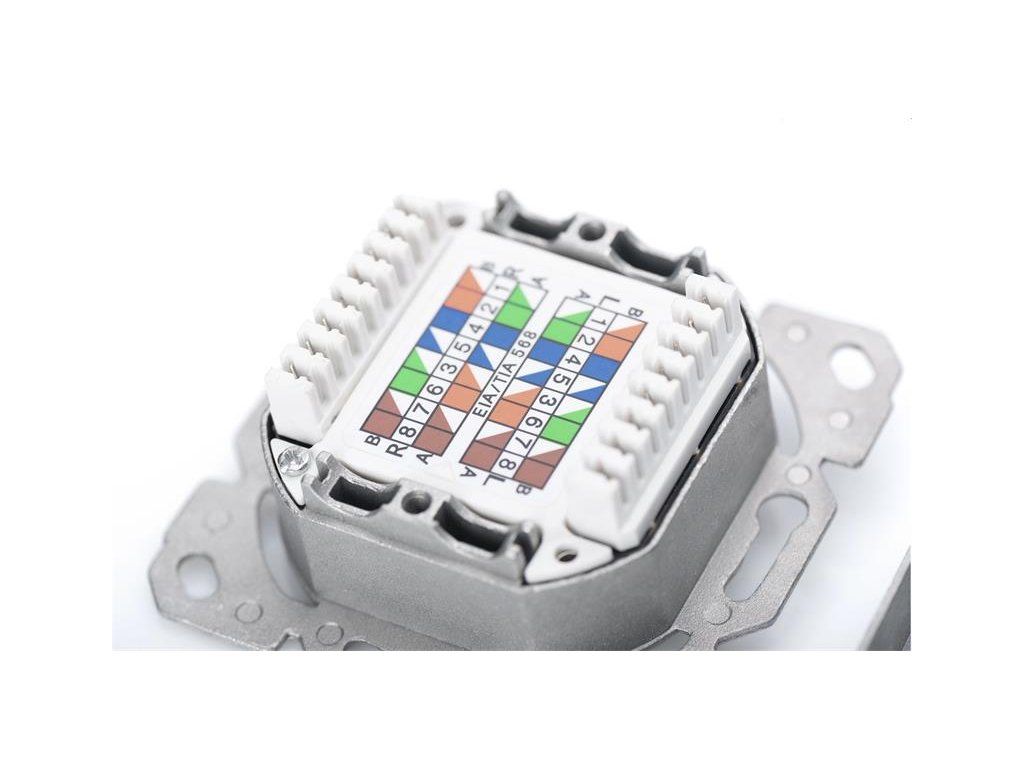

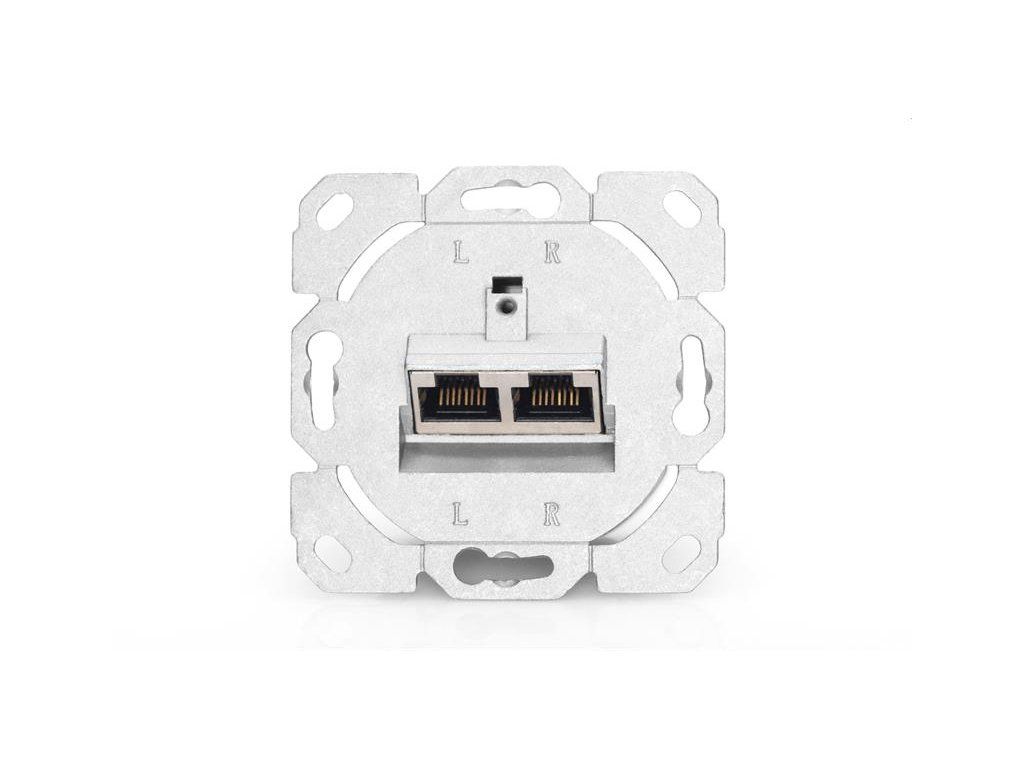

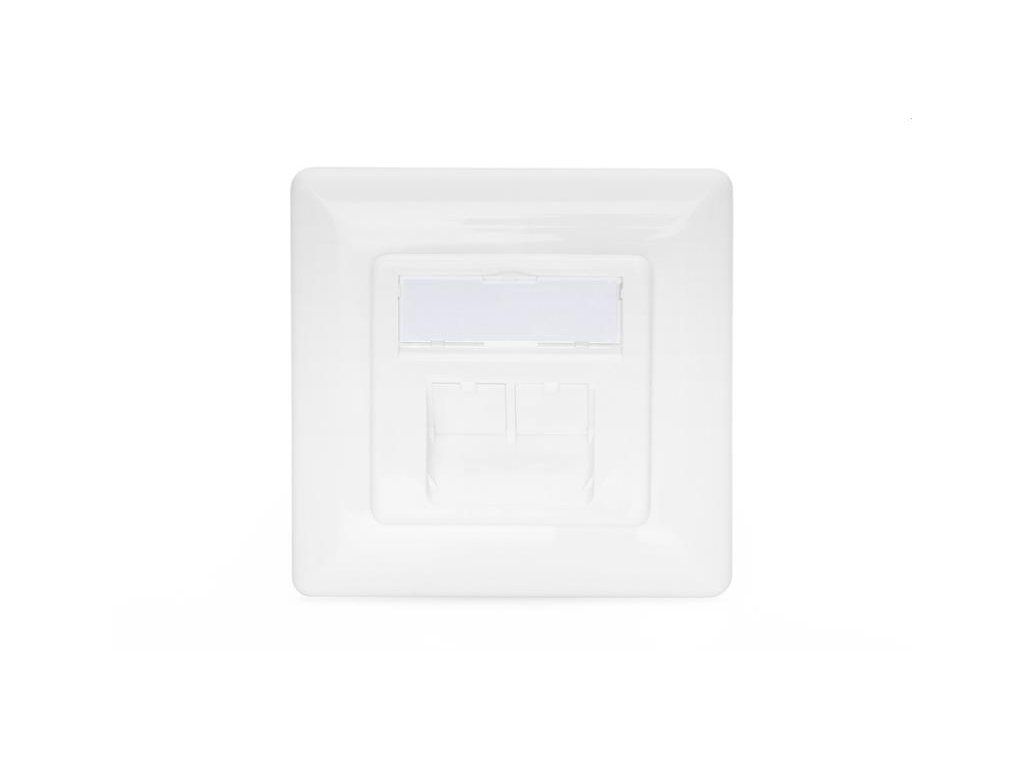

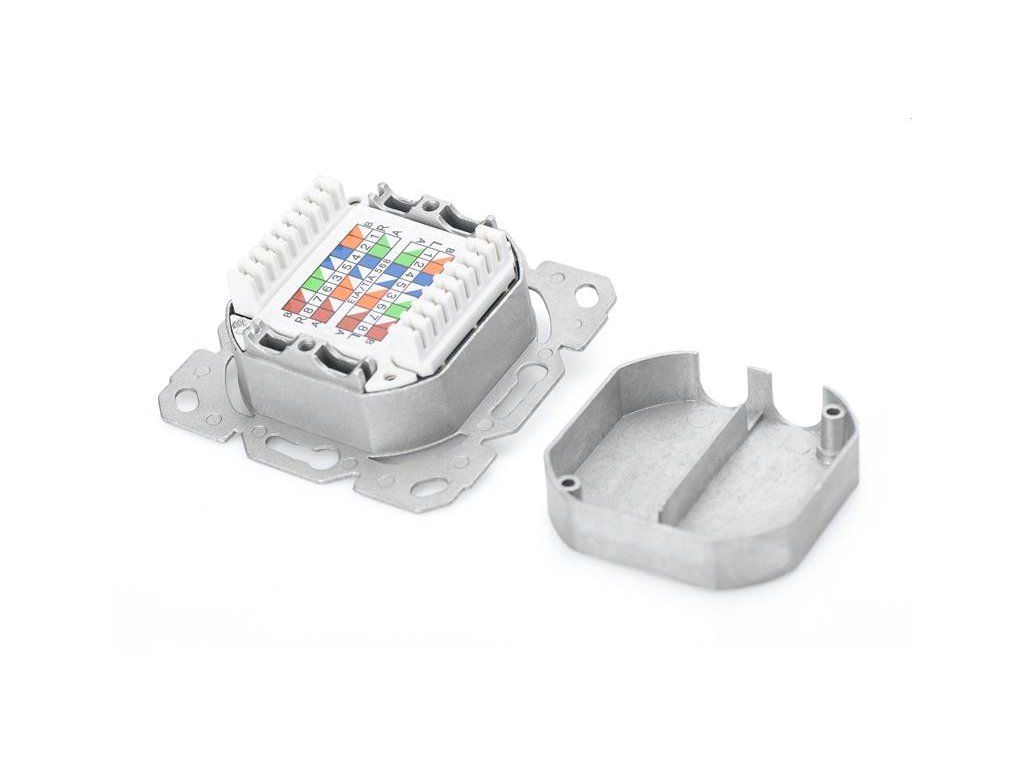

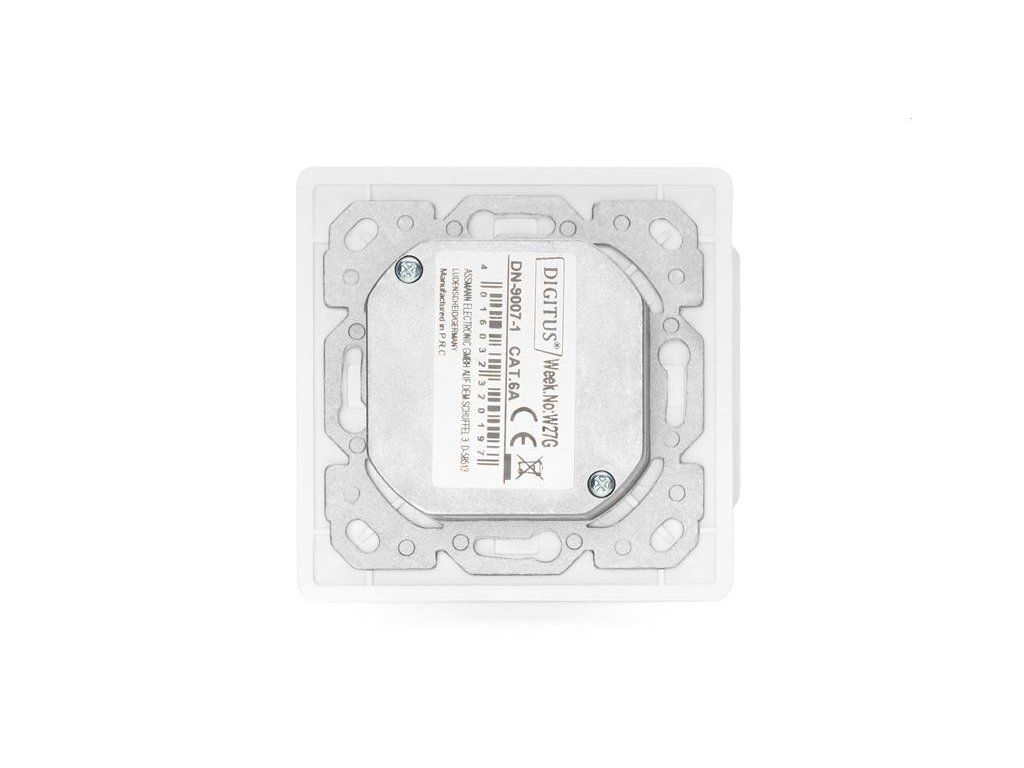

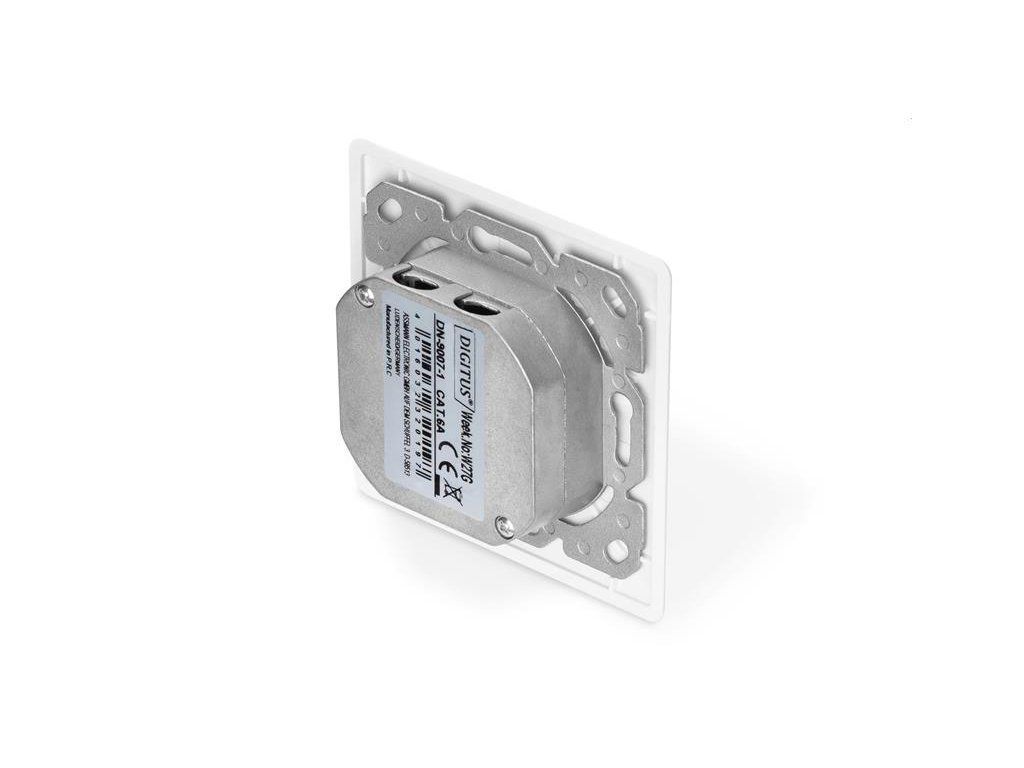

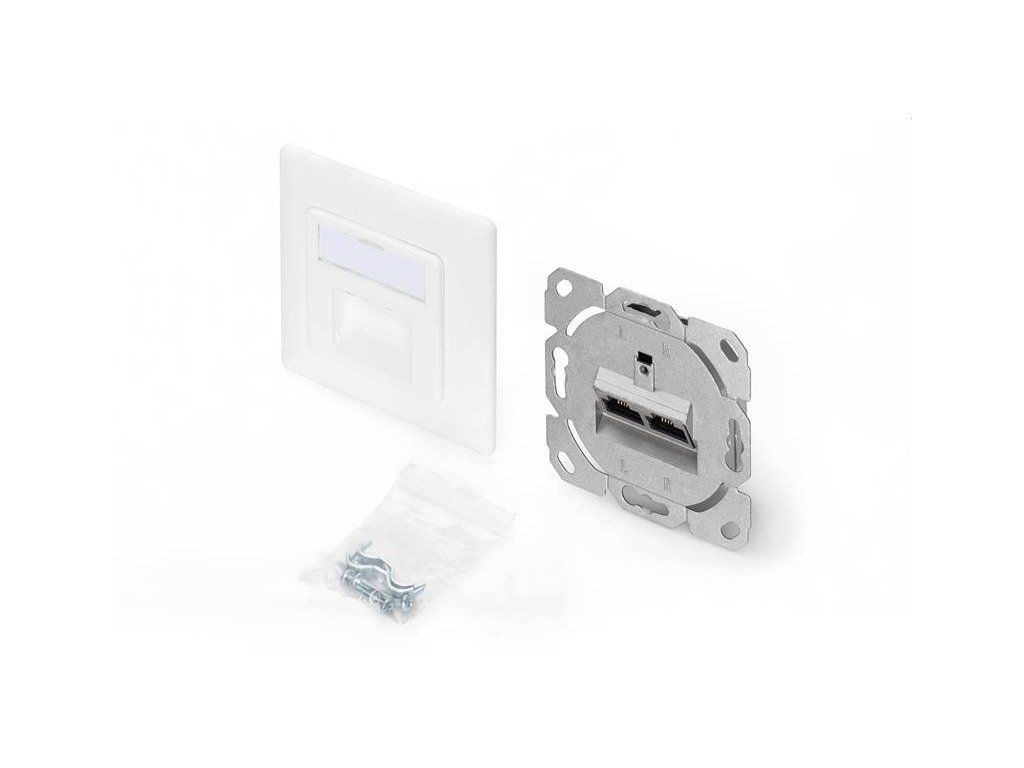

CAT 6A Class EA network outlet, shielded, 2x RJ45 LSA, pure white, flush mount, vert. cable install. Future-oriented standards and high-end quality for your network. DESCRIPTION The CAT 6A network outlets from DIGITUS® are design compatible with common switch programmes. It is certificated to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and contains 2 shielded RJ45 sockets. The cable installation takes place via LSA strips, color coded acc. EIA/TIA 568 A & B. TECHNICAL DETAILS Transmission property: Category 6A Area of application: Up to 500 MHz, 10GBase-T Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for installation in trunking, surface and flush mount RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Integrated strain relief for installation cables Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing Strain relief 40°-angled female for patch cord Central plate: 50 x 50 mm Frame: 80 x 80 mm Central plate with integrated dust covers Design compatible to common switch ranges Technical properties: Housing material: Die-cast metal RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Not compatible with R&M freenet patch cords Colour: White RAL9003
