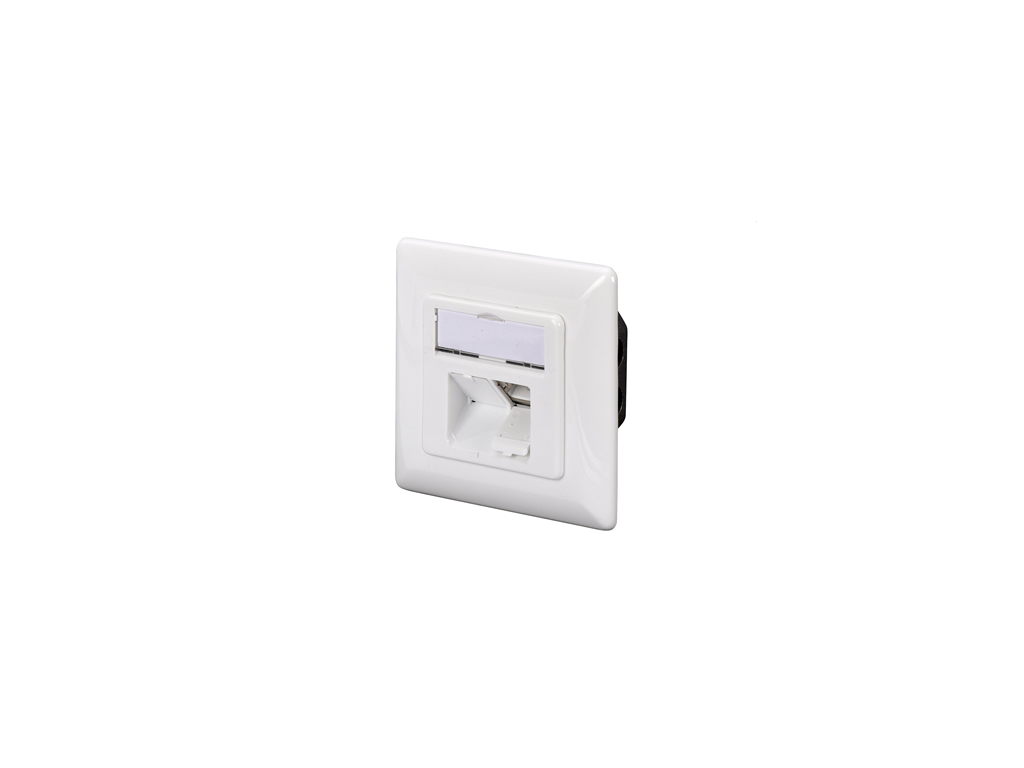

DIGITUS Zásuvka Profi STP 2 port, Cat6 pod omietku, LSA, biela DN-9005-N

Podrobný popis

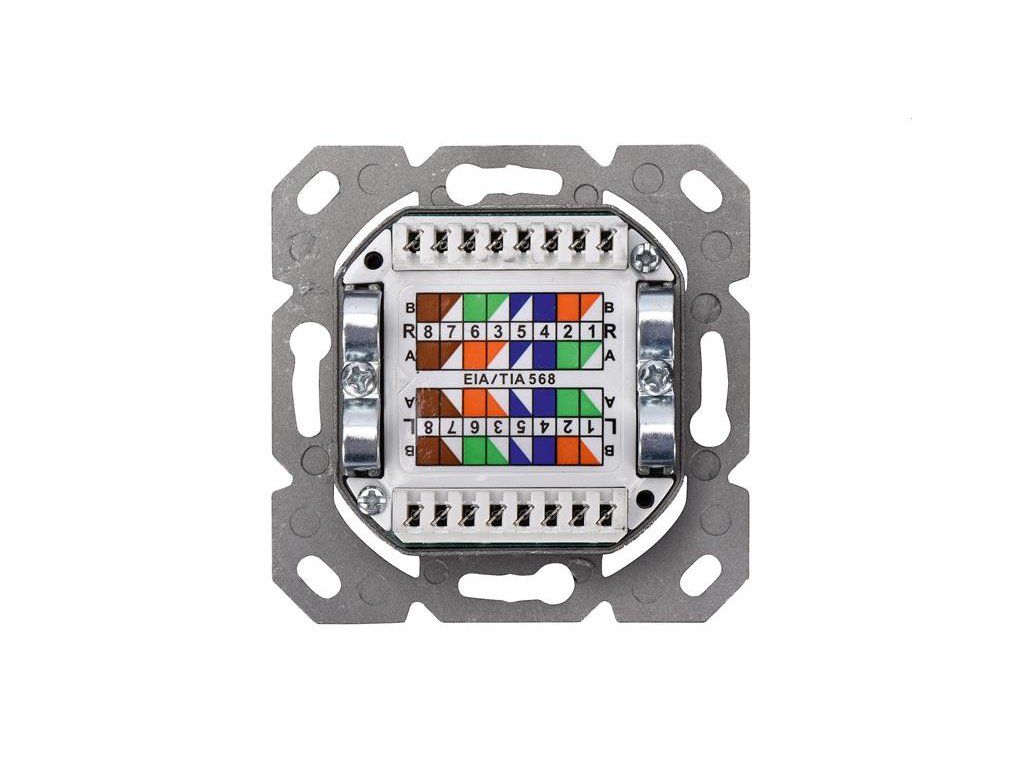

CAT 6 wall outlet, shielded, 2x RJ45 8P8C, LSA, pure white, flush mount Full compatible design Flush mount design and horizontal cable entry provide a neat installation Ensured safety due to completely shielded RJ45 sockets and LSA strips The sockets are angled by 40° which makes the plug in of patch cables very easy DESCRIPTION The shielded CAT 6 network outlets from DIGITUS® are certificated to CAT 6 EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takesplace via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount. TECHNICAL DETAILS Transmission property: Category 6 Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, surface and flush mount RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Integrated strain relief for installation cables Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing Strain relief 40°-angled female for patch cord Central plate: 50 x 50 mm Frame: 80 x 80 mm Central plate with integrated dust covers Design compatible to common switch ranges Technical properties: Housing material: Die-cast metal RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Not compatible with R&M freenet patch cords Colour: White RAL9003
