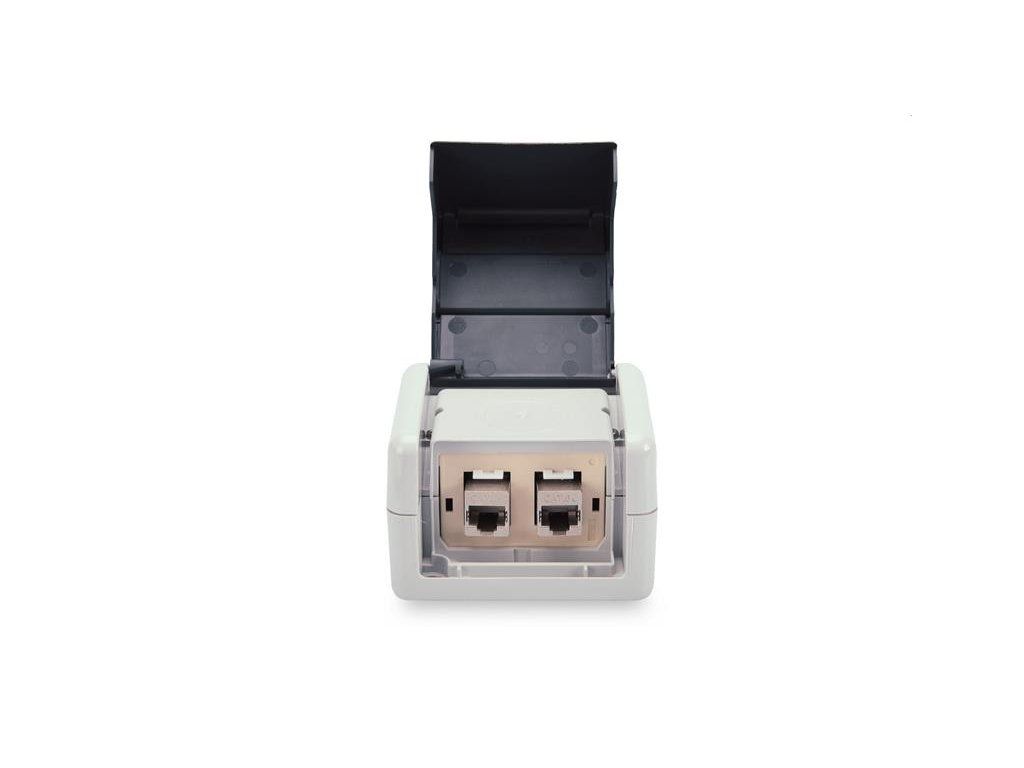

DIGITUS Zásuvka modulární 2 port, neosadená na omietku, OUTDOOR IP44 DN-93844-OD-2

Podrobný popis

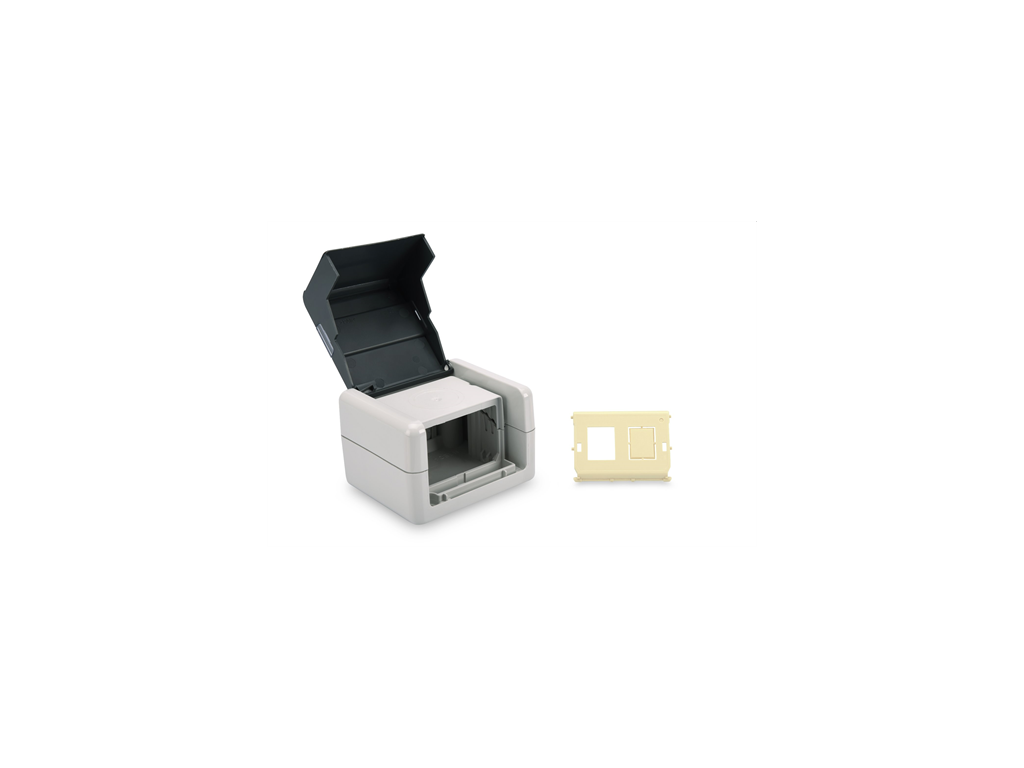

Outdoor Surface Mount Box IP44, surface mount, hinged lid, incl. inlet for 2x Keystone Modules Set consists of a data socket (DN-93844-OD) & use for 2 Keystone Modules (DN-93844-OD-1) Suitable for outdoors Suitable for surface mounting Halogen-free, LSZH, UL 94V-0 Protection type: IP44 2 port mounting use for two Keystone Modules (including dust protection) Hinged lid with labelling field (without print) DESCRIPTION The IP44 data socket for Keystone Modules boasts an easy installation process thanks to screw fastening and a vertical outlet for the data cable. The Keystone Module connections are protected by a hinged lid. An integrated labelling field enables individual markings. A mounting inlet (DN-93844-OD-1) for the Keystone Modules is included in this set. This set is suitable for outdoor use and surface mounting. The housing is halogen-free (LSZH) and can be used in temperature ranges of -20° to +70°C (ABS, thermoplastic). TECHNICAL DETAILS Execution Keystone Accommodation: 90° outlet General properties: Suitable for outdoor and industrial environment use, IP44 Integrated hinged lid Plastic labelling field Design compatible with common switch ranges made by switch manufacturers Technical properties: Housing material: Thermoplastic, ABS UL 94V-0 Lid material: Thermoplastic, ABS UL 94V-0 Mounting inlet material: Thermoplastic, ABS UL 94V-0 Physical properties: Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
