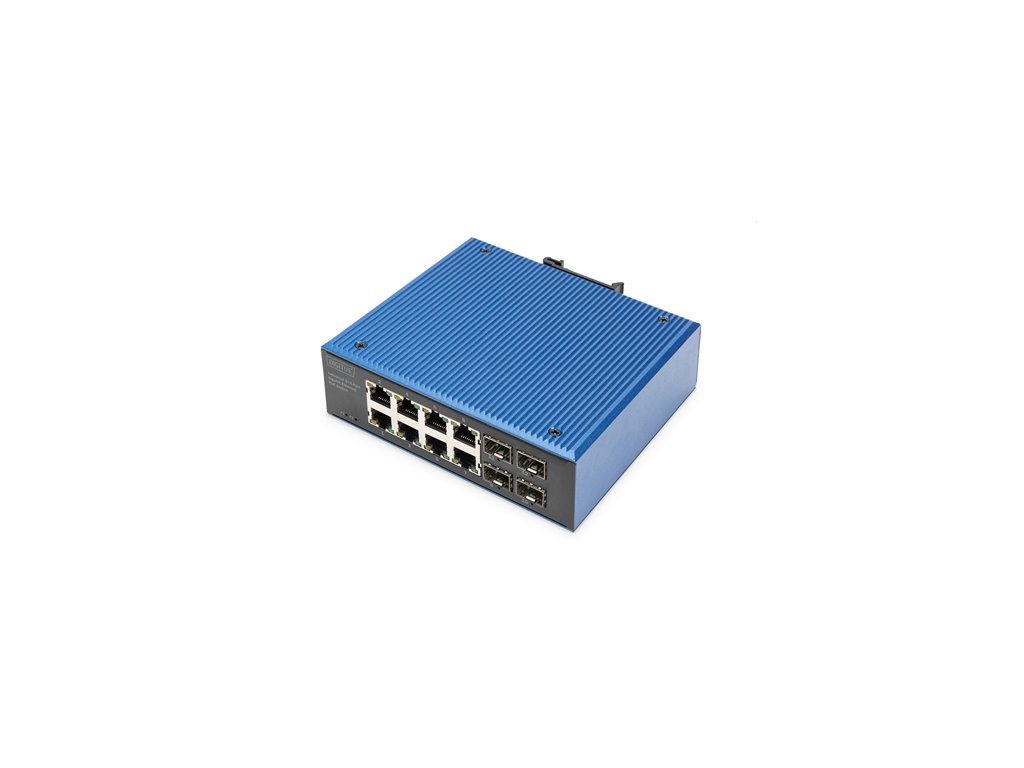

DIGITUS Industrial 8+4-Port Gigabit Ethernet PoE Switch 8 x GE RJ45 + 4 SFP Port, PoE DN-651153
Kód: NTDSDN-651153WBezplatné parkovanie
Potrebné nahlásiť ŠPZ vopred.
Profesionálne služby
Inštalácie, servis a poradenstvo.
Rýchle dodanie
Doručenie objednávky do 24-48h.
Podrobný popis

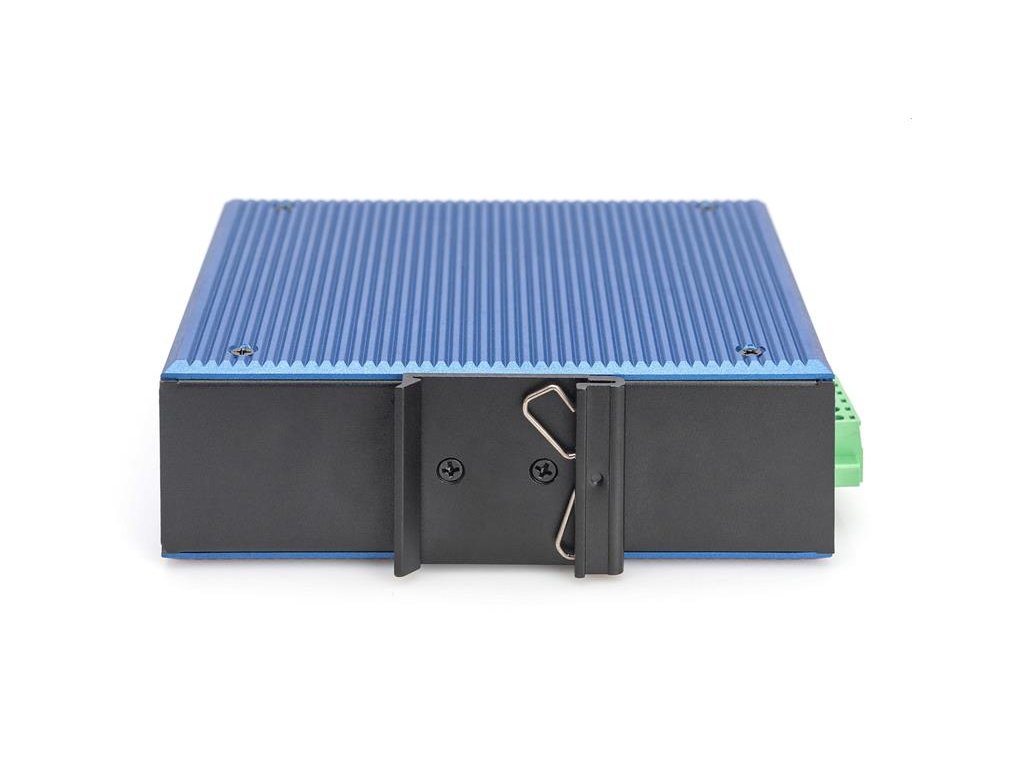

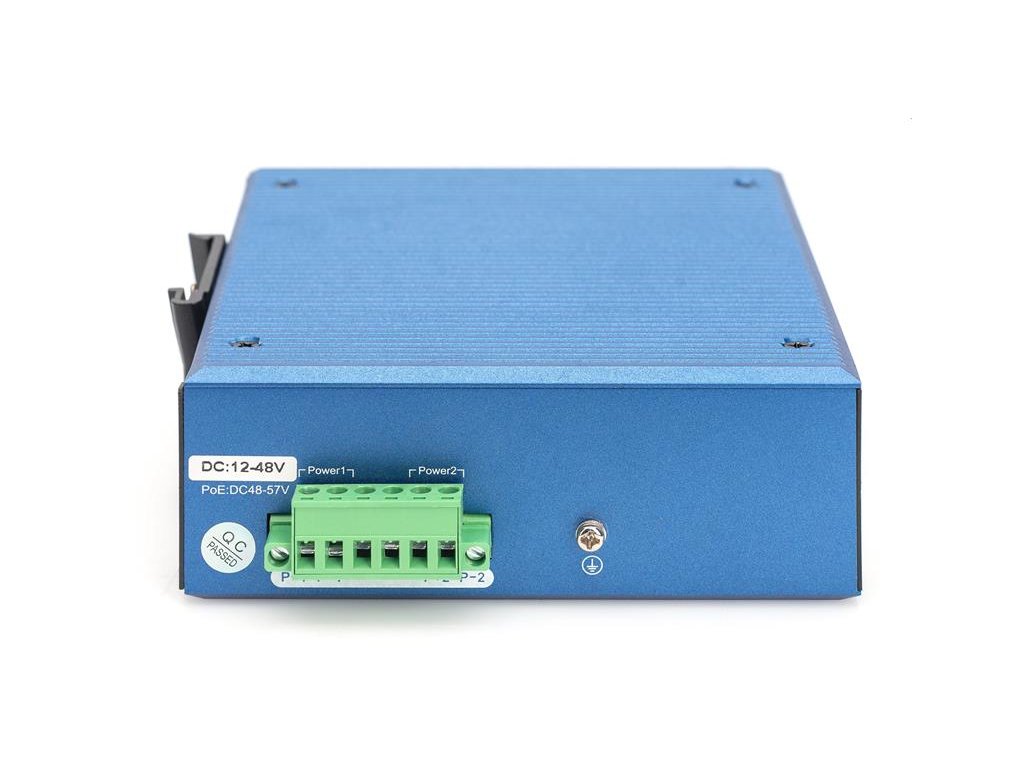

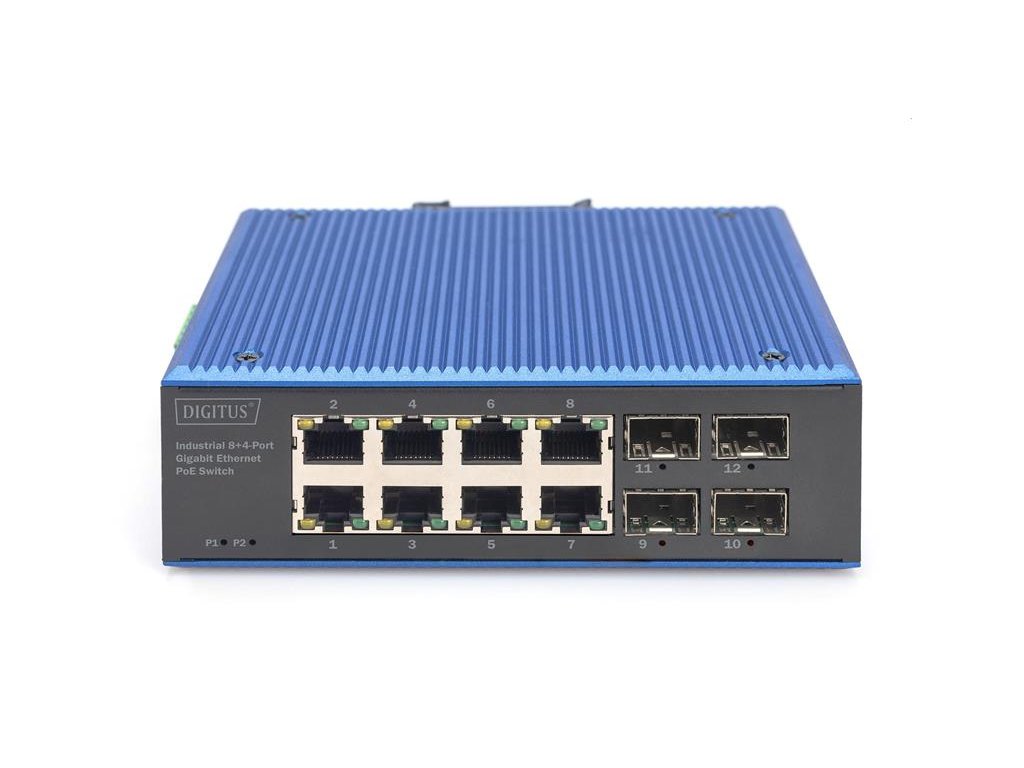

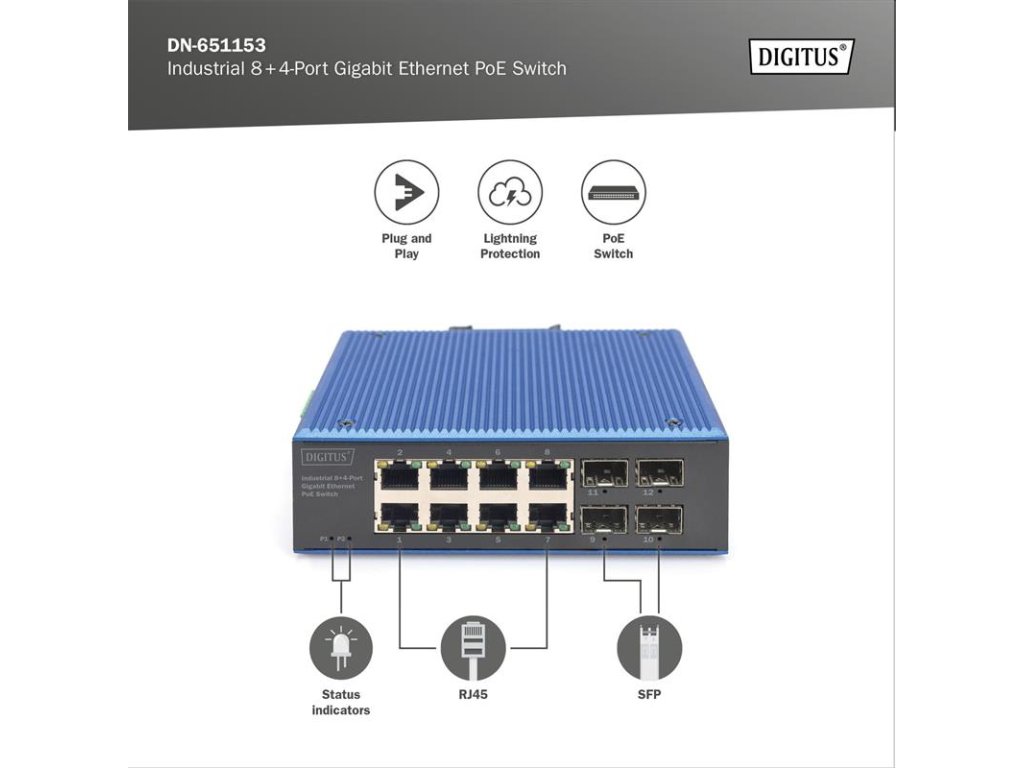

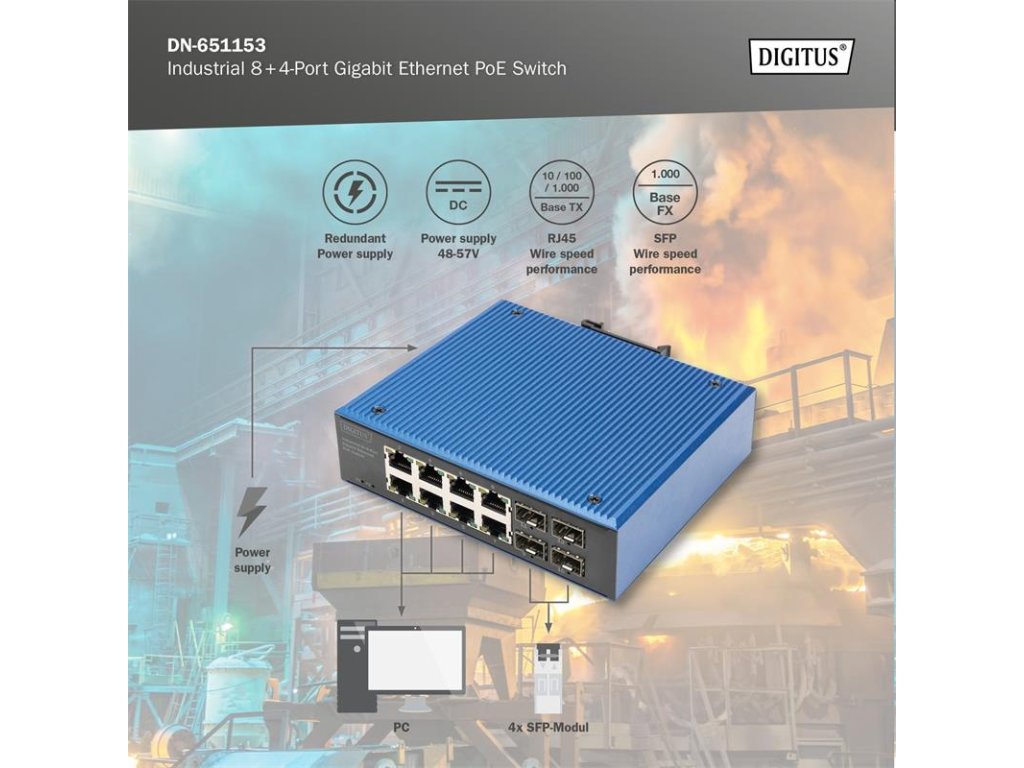

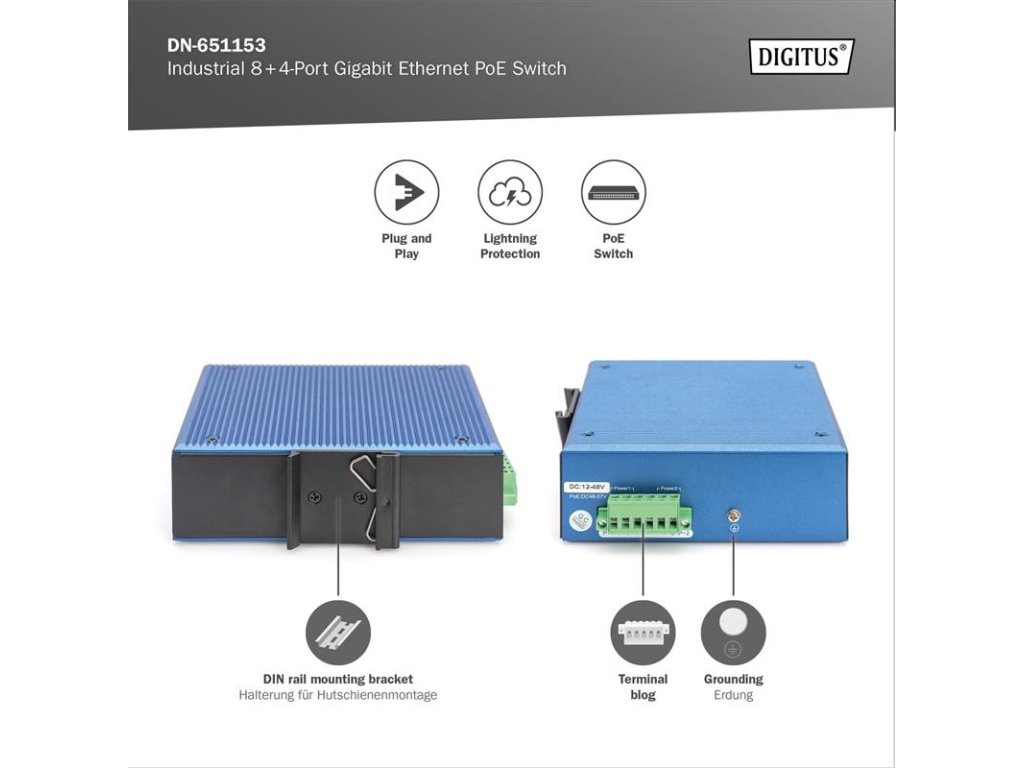

DIGITUS Industrial 8+4-Port Gigabit Ethernet PoE Switch 8 x GE RJ45 + 4 SFP Port, PoE 8x PoE 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C. 8 port GE, 2 SFP GE ports 8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at) 4 x 10/100/1000 Mbit (SFP) Redundant power supply 48-57 V (DC) Metal housing to IP40 standard Simple mounting on a top-hat rail Operating temperature from - 40° up to 80° C Simple plug & play installation ESD & EFT protection up to 6 kV (DC) Ideal for connecting camera systems The DN-651153 is a robust 8+4 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 4 x 1000 Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C. Technical details Supports IEEE802.3x flow control, and backpressure Supports store-and-forward technology for optimized data transmission Automatic speed and half/full duplex detection/adjustment 8 port PoE with up to 30 W Bandwidth: 52 Gbps Packet buffer: 4.1 Mbit Packet forwarding size: 38.7 Mbps Size of the MAC address table: 8K Jumbo frame rate: 9000 byte ESD protection: 6 kV (DC) EFT protection: 6 kV (DC) Metal housing, IP40 4 kV lightning protection and surge protection Redundant power supply with reverse polarity protection function Power supply: 48 to 57 V Power consumption: < 10 W Removable terminal connection Protection class: IP40 Dimensions: 143.7 x 125 x 47.7 mm Weight: 0.76 kg Operating temperature: -40 to 80 ° C Storage temperature: -40 to 80 ° C Humidity: 5% to 95% (non-condensing) MTBF: 300,000 Total PoE budget: 200 W Number of ports: 8 PoE standard: IEEE802.3af (PoE) Ethernet speed: Gigabit Industrial usage: yes Managed: no Number of ports (Uplink): 4 Outdoorsuitable: no PoE (Power over Ethernet): yes Protection against vanadlism: no Uplink port connection: SFP VLAN: noDodatočné parametre
Kategória: | Switche |
---|---|
Záruka: | 744 dní |
Hmotnosť: | 0.75 kg |
POE max výkon [W]: | 240 |
LAN port: | 8 |
Počet SFP: | 4 |
Gigabit LAN port: | 8 |
POE: | 802.3at (30W) |
Management: | Nie |
Kategória: | Switche - rack |
MPN: | DN-651153 |
