DIGITUS Industrial 4+2-Port Gigabit Ethernet Switch 4 Port GE RJ 54, 2 GE SFP Port DN-651148

Podrobný popis

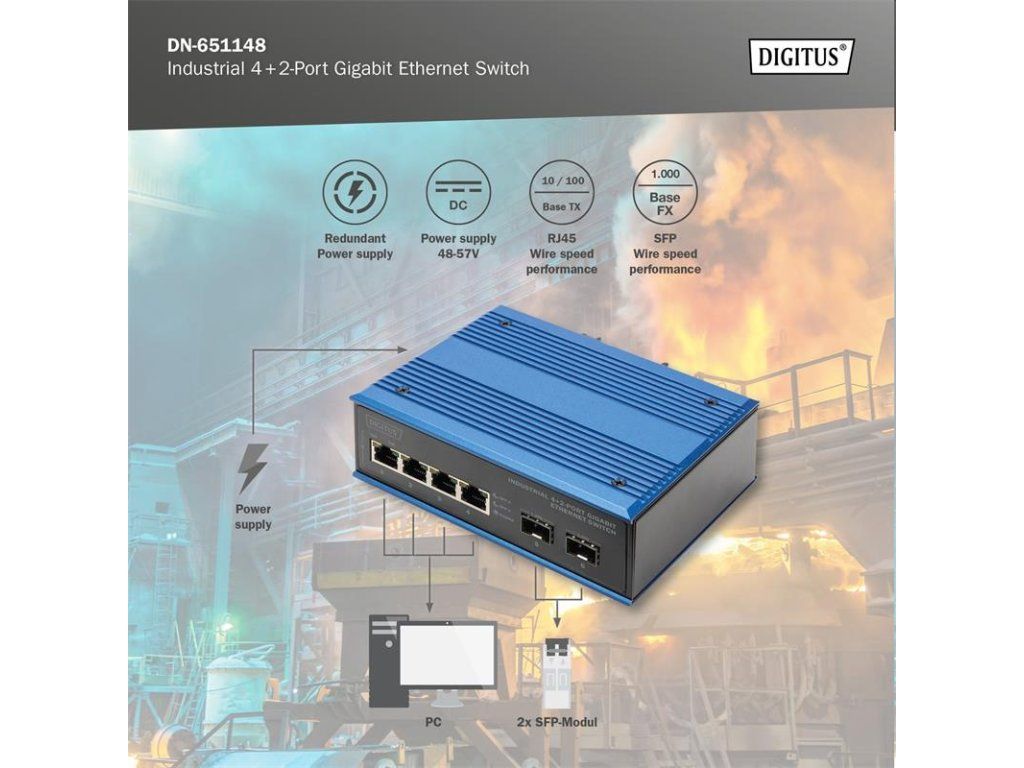

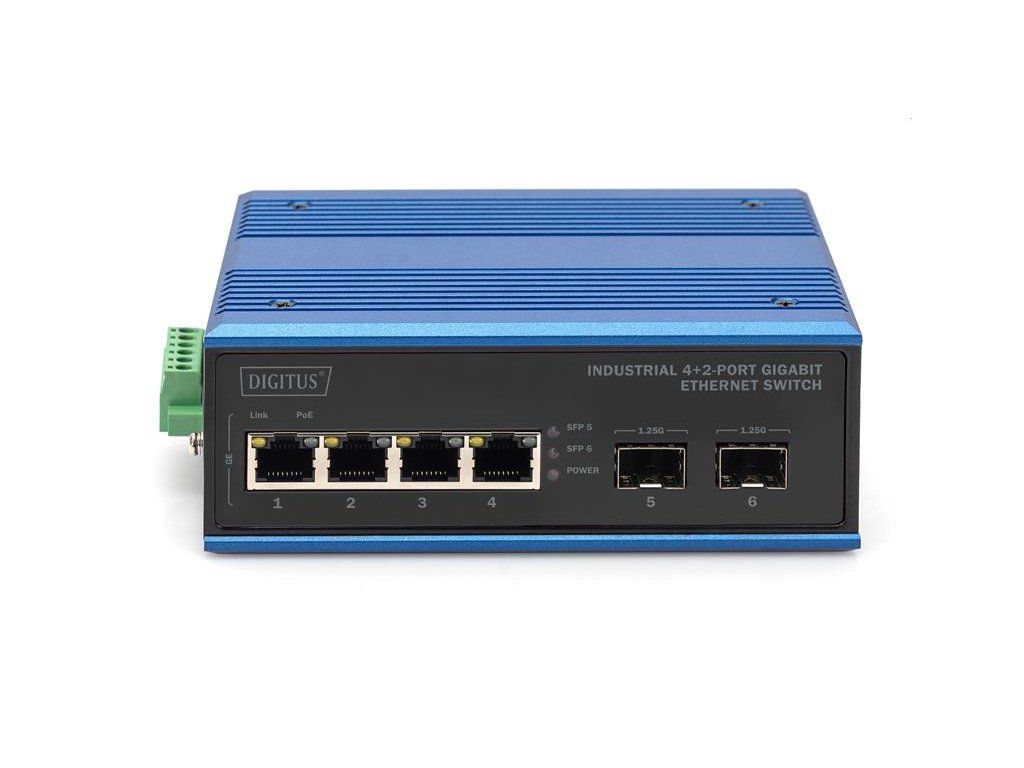

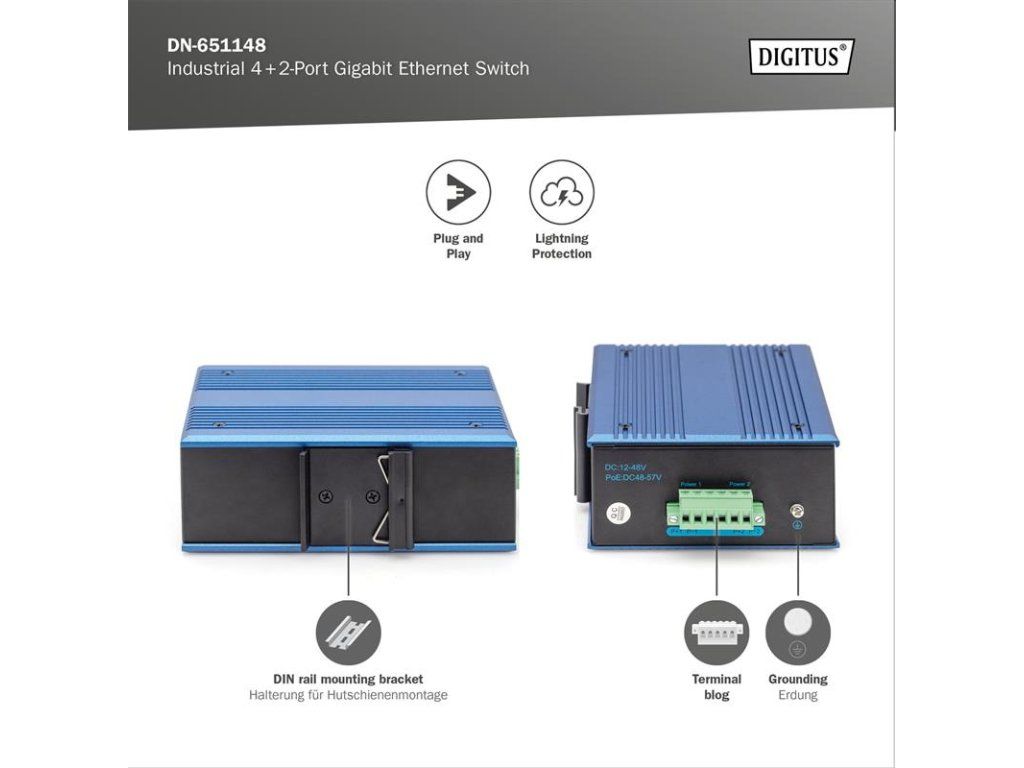

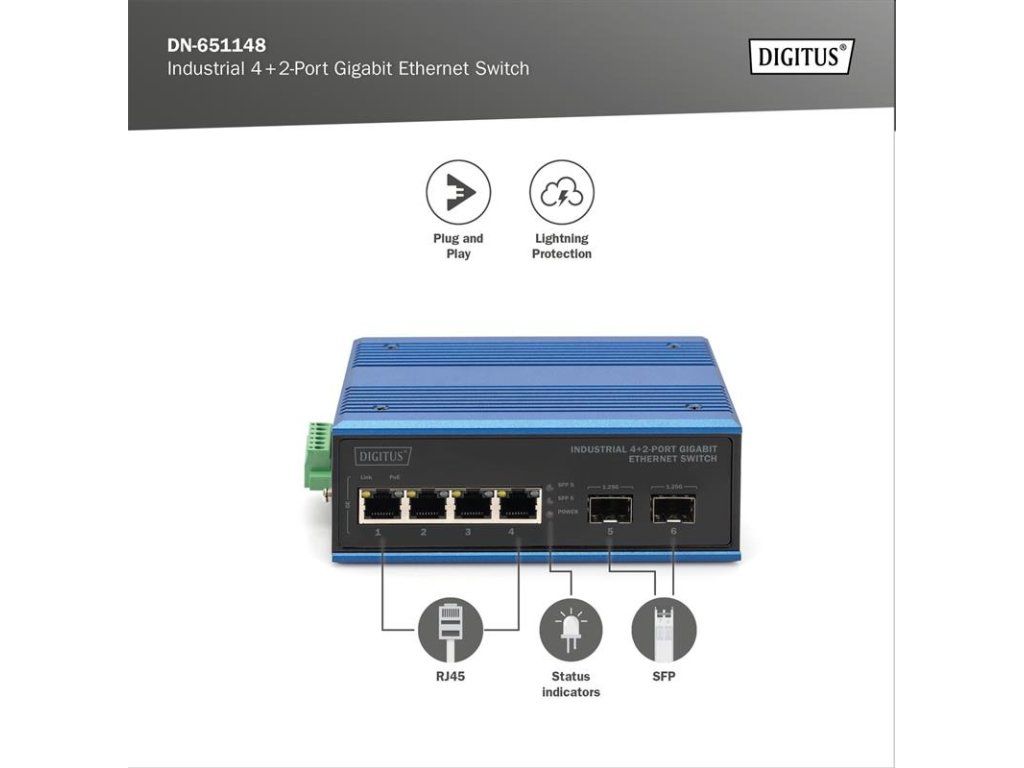

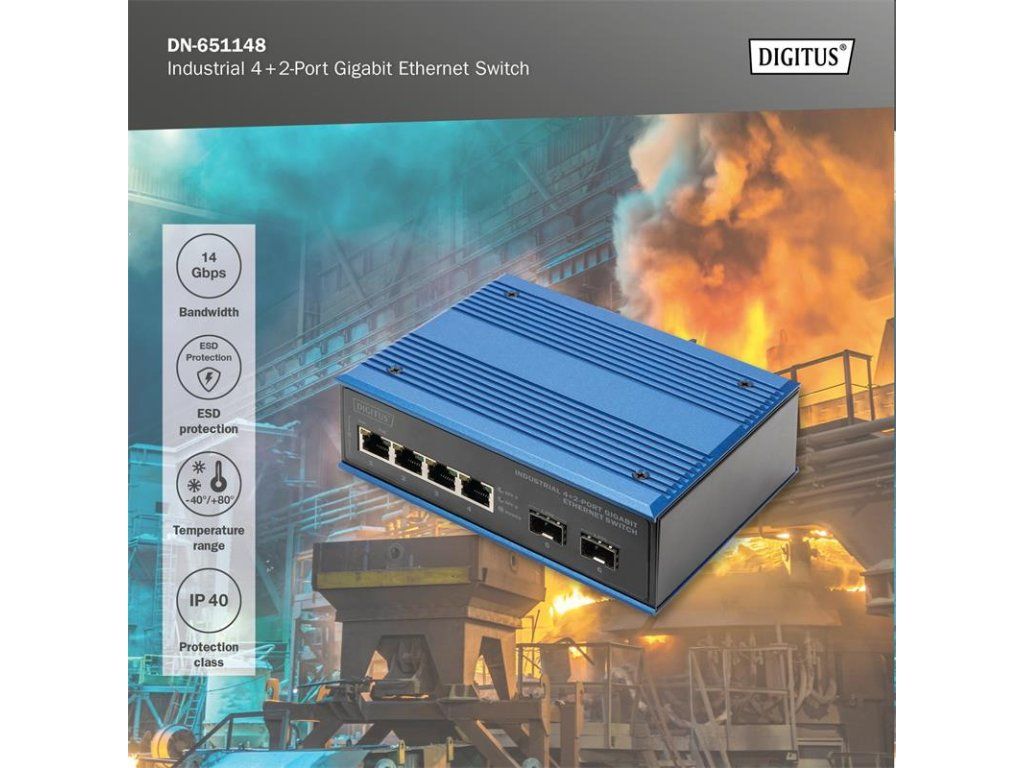

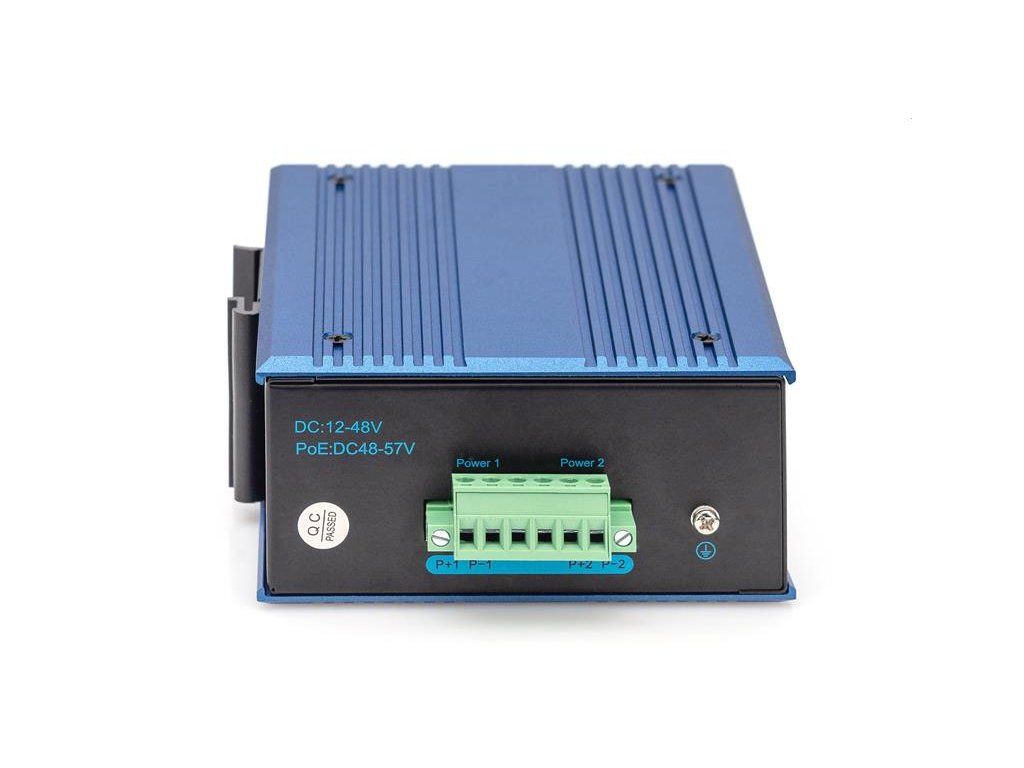

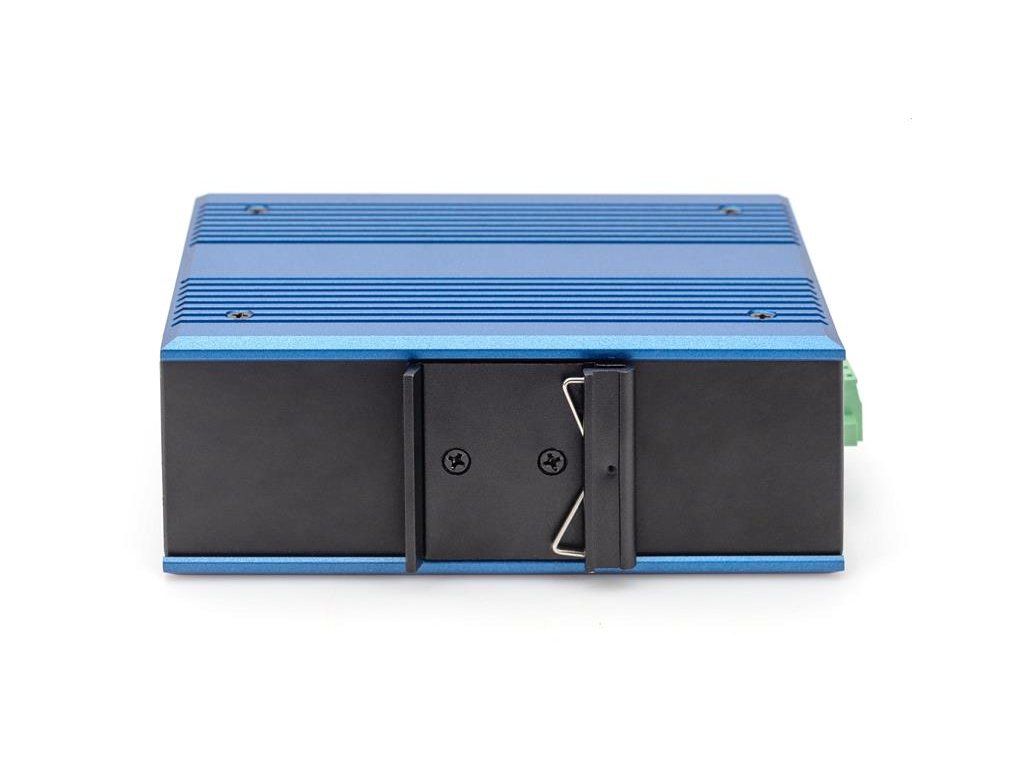

DIGITUS Industrial 4+2-Port Gigabit Ethernet Switch 4 Port GE RJ 54, 2 GE SFP Port 4x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40? to 80?. Number of network connections: 4 GE ports, 2 SFP GE ports Transmission speed of the RJ45 network ports: 4 x 10/100/1000 Mbit (RJ45) Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP) Redundant power supply 12-48 V (DC) Metal housing to IP40 standard Simple mounting on a top-hat rail Operating temperature from - 40° up to 80° C Simple plug & play installation ESD & EFT protection up to 6 kV (DC) Ideal for connecting camera systems The DN-651148 is a robust 4+2 port Industrial Gigabit Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 4x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40 to 80C Technical details Supports IEEE802.3x flow control, and backpressure Supports store-and-forward technology for optimized data transfer Automatic speed and half/full duplex detection/adjustment Bandwidth: 14 Gbps Packet buffer: 1.2 Mbit Packet forwarding size: 10.5 Mbps Size of the MAC address table: 2K Jumbo frame rate: 9000 byte ESD protection: 6 kV (DC) EFT protection: 6 kV (DC) Metal housing, IP40 4 kV lightning protection and surge protection Redundant power supply with reverse polarity protection function Power supply: 12 to 48 V Power consumption: <5 W Removable terminal connection Protection class: IP40 Dimensions: 142.5 x 107.1 x 53.5 mm Operating temperature: -40 to 80 ° C Storage temperature: -40 to 80 ° C Humidity: 5% to 95% (non-condensing) MTBF: 300,000 Number of ports: 4 Ethernet speed: Gigabit Industrial usage: yes Managed: no Number of ports (Uplink): 2 Outdoorsuitable: no PoE (Power over Ethernet): no Protection against vanadlism: no Uplink port connection: SFP VLAN: no Package content 1x Industrial Gigabit Ethernet Switch 1x user manual
