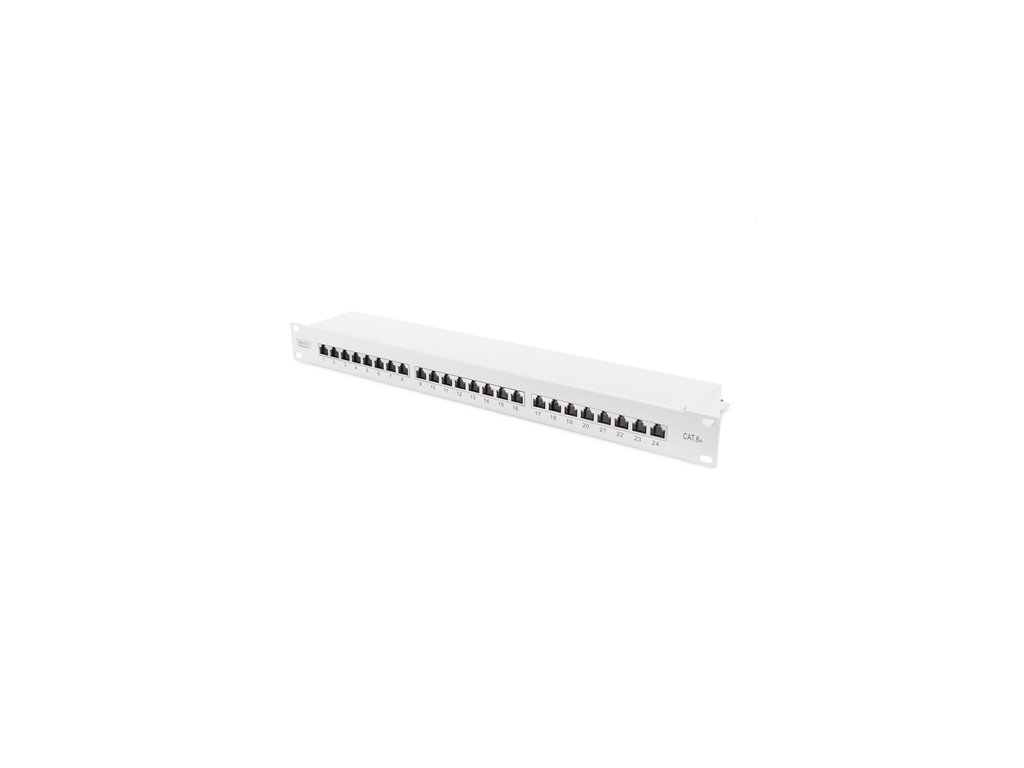

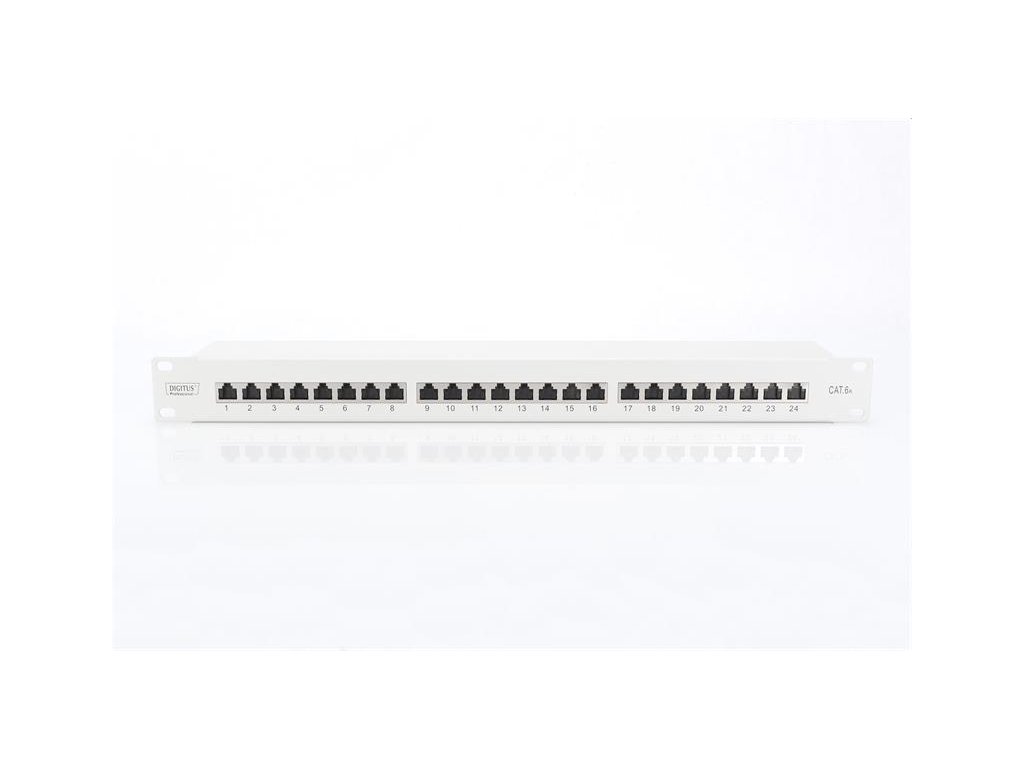

DIGITUS 19" patch panel 24port 1U Cat6A, STP, Krone LSA+, vyväz. lišta, sivý RAL7035 DN-91624S-EA

Podrobný popis

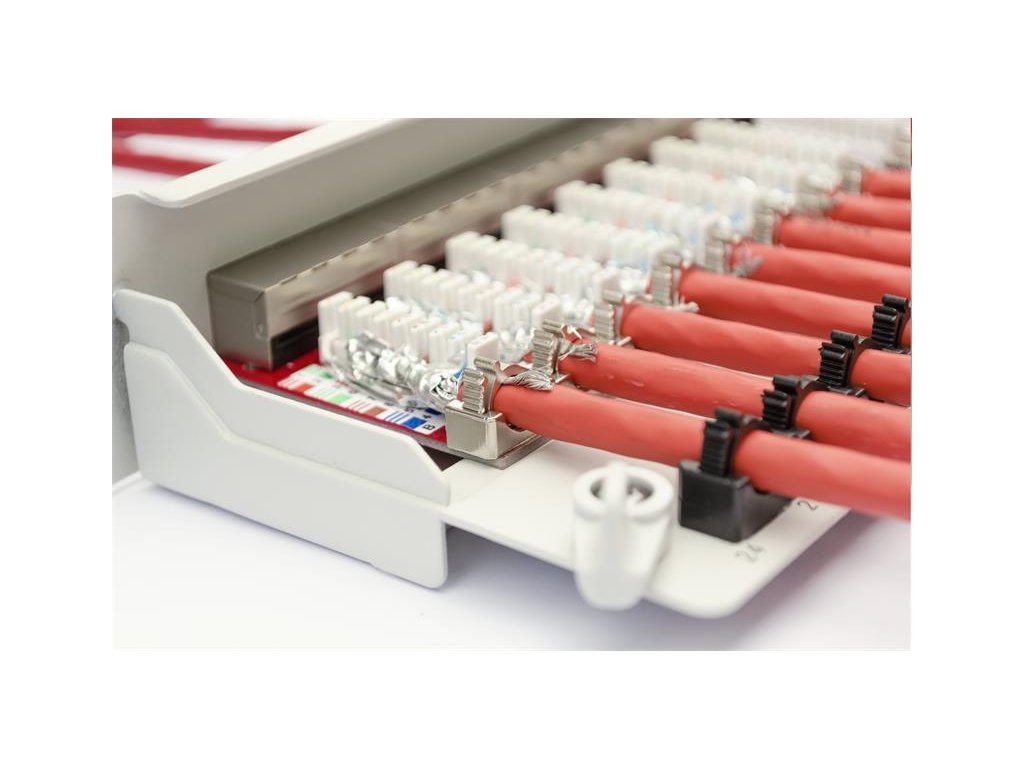

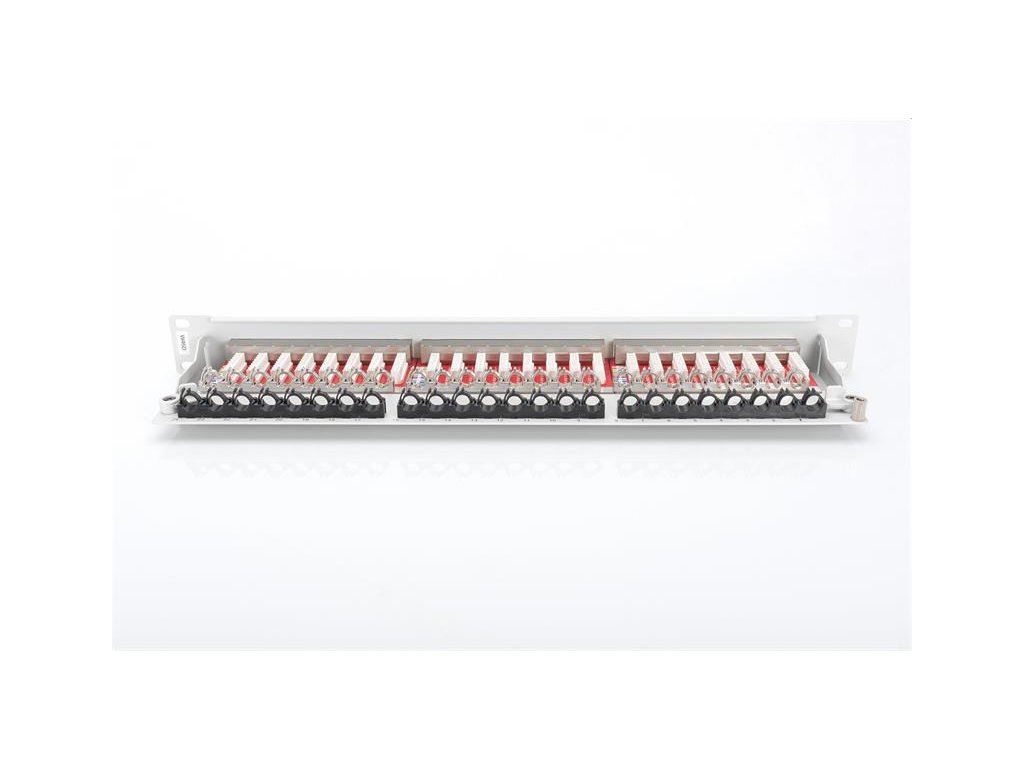

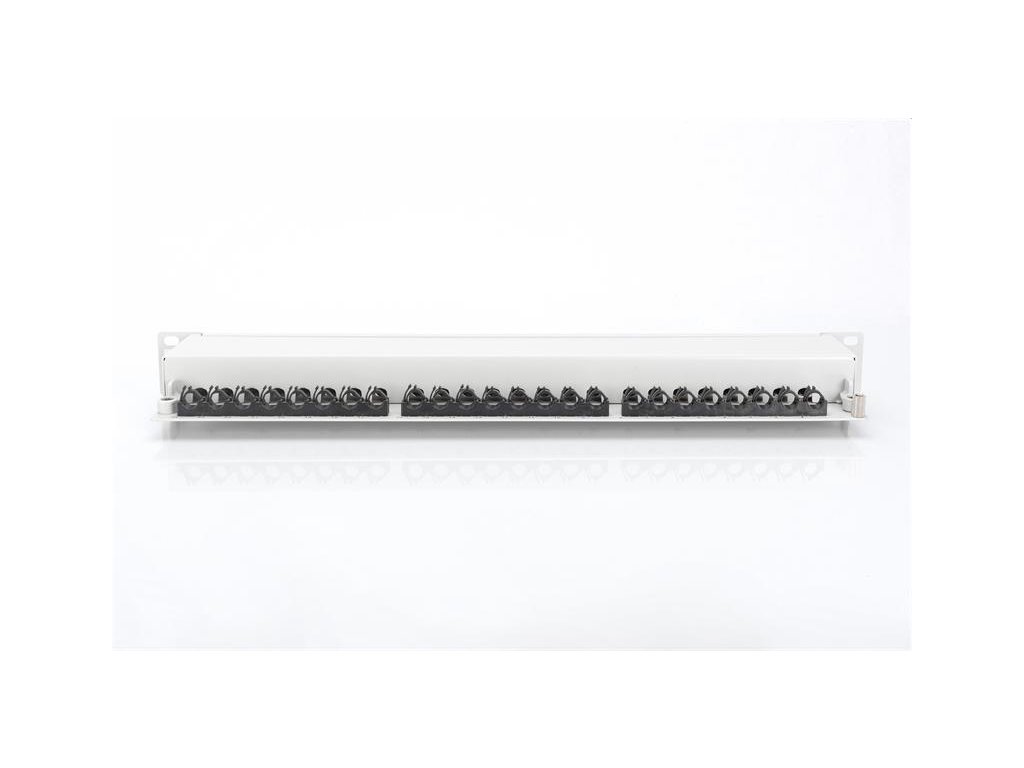

CAT 6A Patch Panel, shielded, 1U, 24-port, 8P8C, grey, 483 mm (19") Future-oriented standards and high-end quality for your network. Sturdy patch panel with metal housing Complete shielding of housing and shield contact Cable installation by IDC-strips Central grounding connector Dielectric strength up to 1500 VDC (contact/ground) Metal-coated (electrically conductive) cable fixation for grounding the cable shield DESCRIPTION The DIGITUS® "DN-91624S-EA" CAT 6A Patch Panel is available as 24-port version and is made of 1.5 mm cold-rolled steel which makes it a sturdy Patch Panel for 19" rack mounting. It complies with the 802.3at PoE+ and the 802.3af PoE standardand is equipped with dust protection shutters. TECHNICAL DETAILS Transmission properties: Category 6A, Class EA Area of application: Up to 500 MHz, 10GBase-T Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Central ground connection 360° shield coverage Intergrated dust cover Plastic label field CAT 6A Class EA for up to 500 MHz Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Colour: Grey RAL7035 Color: light grey, RAL 7035 Ports: 24 Units: 1 Category: CAT 6A
