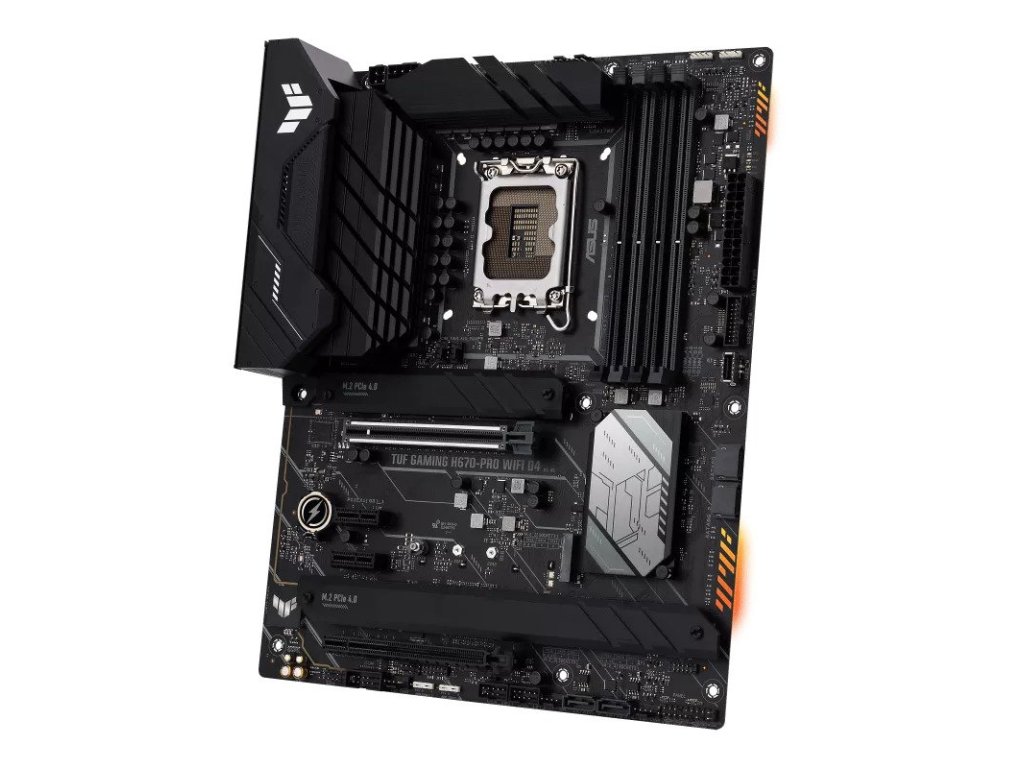

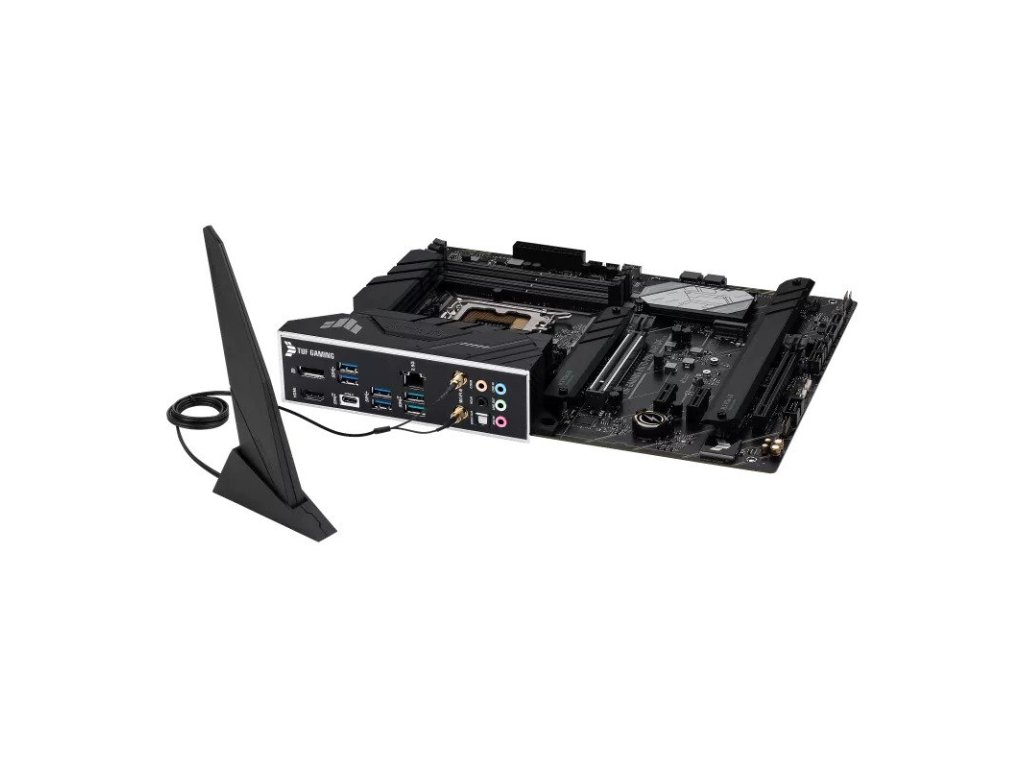

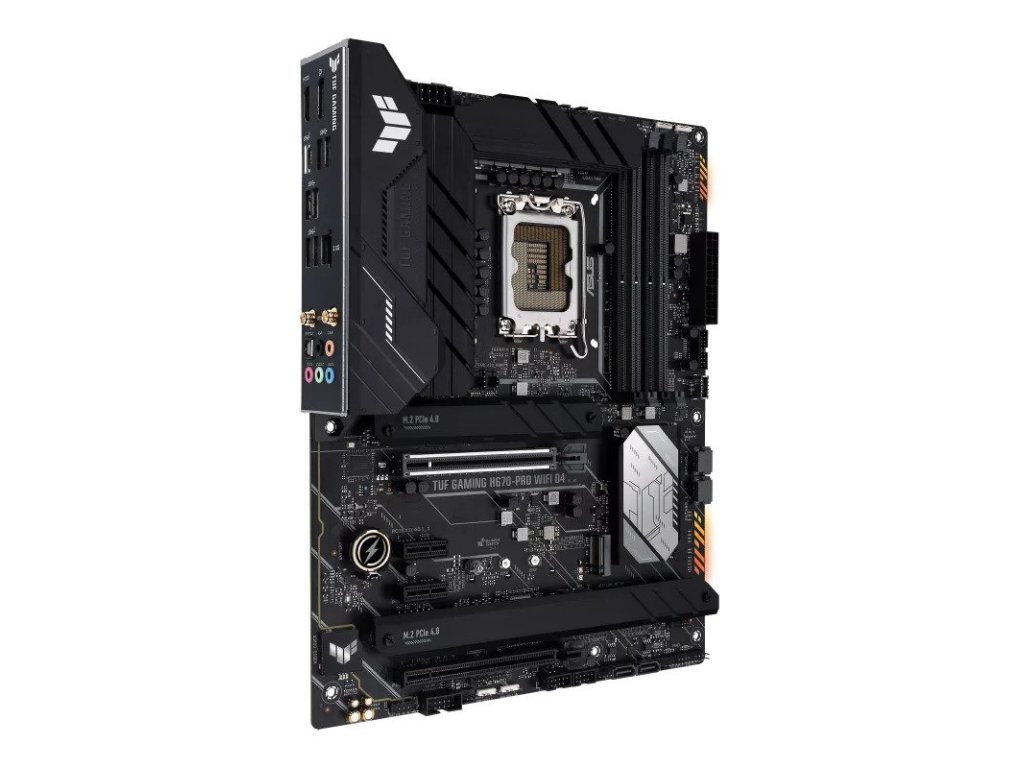

ASUS TUF Gaming H670-PRO WIFI D4/LGA 1700/ATX 90MB1900-M0EAY0

Podrobný popis

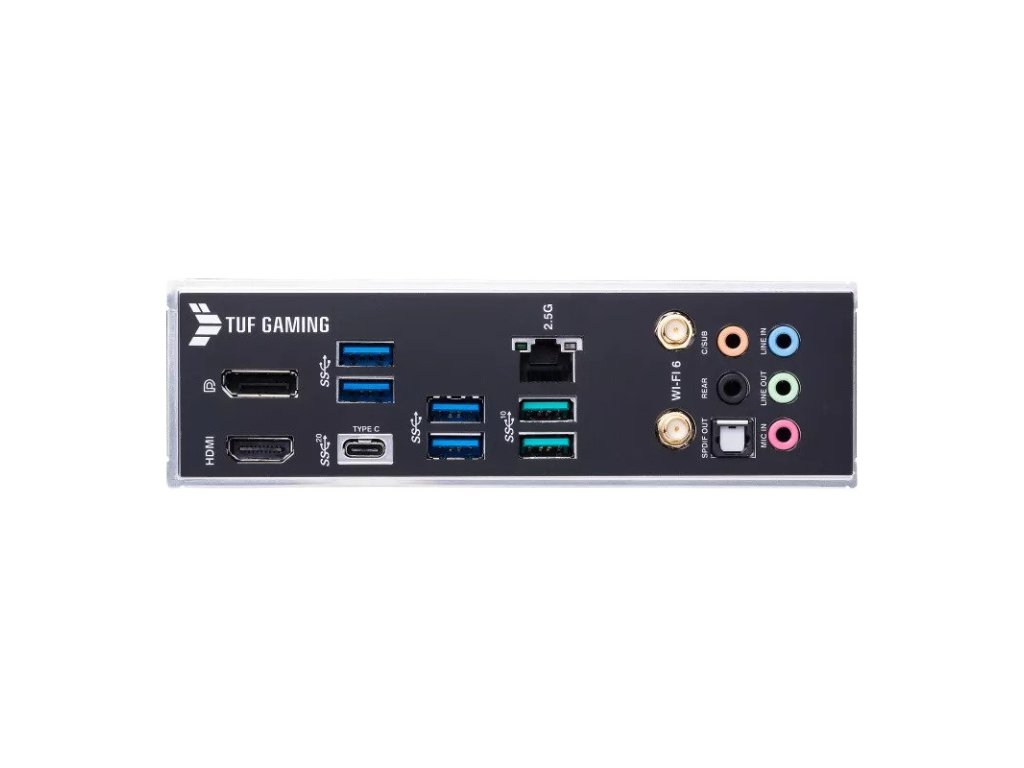

Chipset: H670 Rozměrový formát: ATX (30.5cm x 24.4cm) Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: XMP Grafické výstupy: (na základě procesoru) *1 x DisplayPort *1 x HDMI port Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *1 x Intel 2.5Gb Ethernet *Wi-Fi 6 (802.11 a/b/g/n/ac/ax) *Bluetooth v5.2 Rozšiřující sloty: *1 x PCIe 5.0 x16 slot *1 x PCIe 3.0 x16 slot (supports x4 mode) *2 x PCIe 3.0 x1 slots SATA: 4 x SATA 6Gb/s ports M.2: 4 x M.2 slots USB: *Interní: *1 x USB 3.2 Gen 1 connector (supports USB Type-C®) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Externí: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *2 x USB 3.2 Gen 2 ports (2 x Type-A) *4 x USB 3.2 Gen 1 ports (4 x Type-A ) Interní porty: *Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers *Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *1 x 4-pin +12V Power connector *Storage related *4 x M.2 slots (Key M) *4 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 1 connector (supports USB Type-C®) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Miscellaneous *3 x Addressable Gen 2 headers *1 x AURA RGB header *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x 20-3 pin System Panel header with Chassis intrude function *1 x Thunderbolt header Externí porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *2 x USB 3.2 Gen 2 ports (2 x Type-A) *4 x USB 3.2 Gen 1 ports (4 x Type-A ) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi Module *1 x Intel 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port BIOS: UEFI AMI BIOS, 192 (128+64) Mb Flash ROM
