ASUS ProArt PA248QV 24.1" IPS 1920x1200 100mil:1 5ms 300cd USB HDMI D-Sub DP repro 90LM05K1-B01370

Podrobný popis

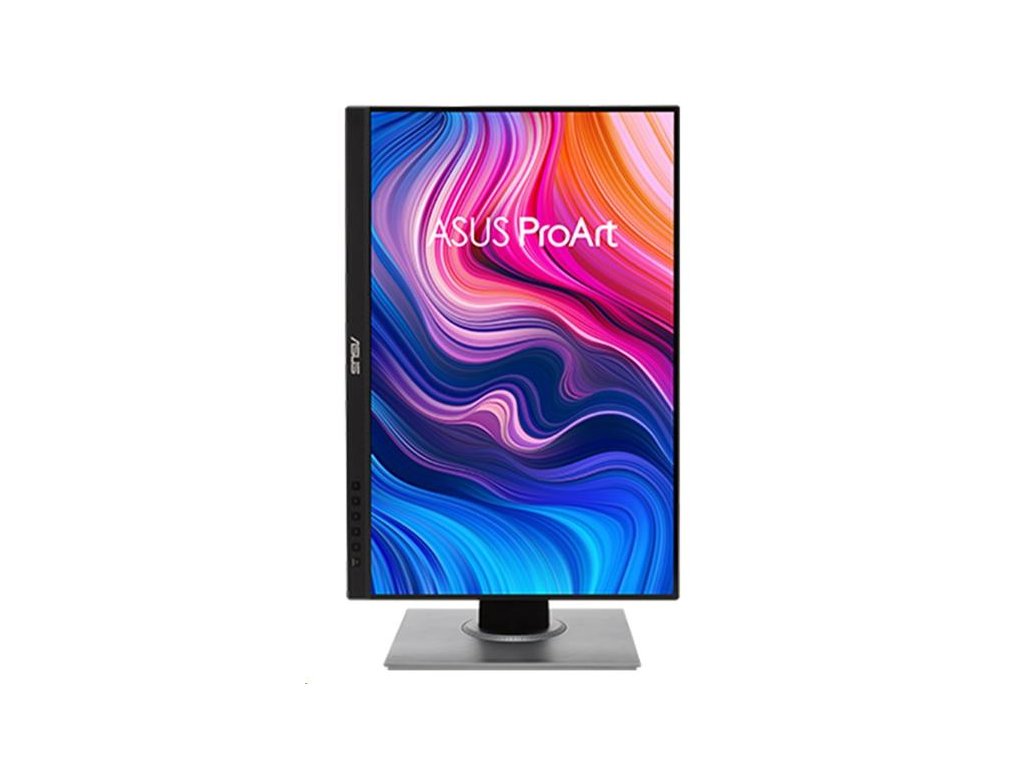

ASUS ProArt Display PA248QV Professional Monitor – 24.1-inch,
16:10, IPS, WUXGA (1920 x 1200), 100% sRGB, 100% Rec.709, Color
Accuracy ΔE < 2, Calman Verified, ProArt Preset, ProArt
Palette, Ergonomic Stand

24.1-inch 16:10 WUXGA (1920 x 1200) IPS display with frameless
design

International color standard 100% sRGB and 100% Rec. 709 wide color
gamut

Calman Verified with factory pre-calibrated for excellent color
accuracy (ΔE < 2)

ASUS exclusive ProArt Preset and ProArt Palette provides several
adjustable color parameters and preset modes

75Hz refresh rate and Adaptive-Sync technology (48~75Hz) to animated
content with fast action and eliminate screen tearing

Extensive connectivity with DisplayPort, HDMI, D-sub, Audio in,
Earphone jack plus four USB 3.0 ports for the most flexibility

VESA wall-mountable and ergonomic design with tilt, swivel, pivot
and height adjustments for a comfortable viewing experience


3 year warranty for bright-dark dot




Display

Panel Size: Wide Screen 24.1"(61.13cm) 16:10

Color Saturation : 100% sRGB / 100% Rec. 709

Panel Type : IPS

True Resolution : 1920x1200

Display Viewing Area(HxV) : 518.4 x 324.0 mm

Display Surface : Non-glare

Pixel Pitch : 0.270mm

Brightness(Max) : 300 cd/㎡

Contrast Ratio (Max) : 1000:1

ASUS Smart Contrast Ratio (ASCR) : 100000000:1

Viewing Angle (CR≧10) : 178°(H)/178°(V)

Response Time : 5ms (Gray to Gray)

Display Colors : 16.7M

Flicker free : Yes



Video Feature

Trace Free Technology : Yes

ProArt Preset : 9 Modes(sRGB Mode/Rec. 709 Mode/Scenery
Mode/Standard Mode/Rapid Rendering/User Mode 1/User Mode 2/Reading
Mode/Darkroom Mode)

ProArt Palette : Yes

Skin-Tone Selection : 3 Modes

Color Temperature Selection : 4 Modes

Color Accuracy : △E< 2

Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )

Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)

QuickFit (modes) : Yes (Alignment Grid/Paper/Ruler Modes)

Low Blue Light : Yes

HDCP support : Yes, 1.4

Adaptive-Sync supported :Yes

Motion Sync: Yes



Audio Features

Stereo Speakers : 2W x 2 Stereo RMS

I/O Ports

Signal Input : HDMI, D-Sub, DisplayPort

PC Audio Input : 3.5mm Mini-Jack

Earphone jack : 3.5mm Mini-Jack

USB Port(s) : 3.0x4



Signal Frequency

Analog Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)

Digital Signal Frequency : 30 ~105 KHz (H) /49 ~75 Hz(V)

Power Consumption

Power Consumption:<15W*

Power Saving Mode:<0.5W

Power Off Mode:0W(hard switch)

Voltage: 100–240V, 50 / 60 Hz



Mechanical Design

Chassis Colors : Black

Tilt : -5°~+35°

Swivel : +90°~-90°

Pivot : +90°~-90°

Height Adjustment : 0~130 mm

VESA Wall Mounting : 100x100mm

Quick Release Stand Design : Yes



Security

Kensington lock



Dimensions

Phys. Dimension with Stand (WxHxD) : 533 x (375 - 505) x 211 mm

Phys. Dimension without Stand (WxHxD) : 533 x 360 x 47 mm

Box Dimension (WxHxD) : 649 x 474 x 192 mm



Weight

Net Weight (Esti.) : 6.1 kg, Without Stand (Esti.) : 3.9 Kg,

Gross Weight (Esti.) : 8.3 kg



Accessories

VGA cable(Optional)

Audio cable(Optional)

Power cord

DisplayPort cable (Optional)

USB cable(Optional)

Quick start guide

HDMI cable (Optional)

Warranty Card

Color pre-calibration report

Welcome Card



Compliance and Standards

Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ISO-9241-307, J-MOSS,
KCC, PSB, PSE, RoHS, TCO8.0, TUV-Ergo, TUV-GS, UL/cUL, VCCI, WEEE,
WHQL (Windows 10, Windows 7), MEPS, RCM, TUV Flicker-free , KC ,
eStandby, TUV Low Blue Light, ICES-3, PC recycle, CEC



Note

* Adaptive-Sync only can be activated within “48Hz ~ 75Hz” via HDMI
and DisplayPort ports

*To activate Rapid Rendering needs turn off Adaptive-Sync and only
be activated at 75Hz. Brightness, Blue Light Filter, ASCR, Trace
Free cannot be adjusted when using this function.

*measuring a screen brightness of 200 nits without audio/ USB/ Card
reader connection
